PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Distributed desktop static load	100 kg per workstation
Central pedestal top static load	40 kg
Drawer static load	15 kg
Lower cabinet shelf static load	20 kg
Product net weight	95 kg
Seating capacity	2 users
Recommended desktop point-load limit	30 kg
Hardware cyclic service target	50,000 drawer operations
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surfaces	Light oak-woodgrain melamine-faced wood-based board with sealed exposed edges
Central storage body	Charcoal melamine-faced wood-based panel cabinet with fixed vertical sides
Drawer and lower door faces	Light oak-woodgrain melamine-faced panels matching the desktops
Privacy panels	Framed composite divider panels with neutral fabric-look faces
Screen frame and top rails	Aluminum-look extruded or rolled metal trim with dark end posts
Hardware and cable fittings	60 mm plastic cable grommets, drawer pull, cabinet hinges, and cam/bolt joinery

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Two-user opposed layout	Two separate 1200 mm work surfaces face away from a shared central pedestal, giving each user an independent knee bay.
Central personal storage	Each accessible side includes a small upper drawer and a lower door-enclosed compartment for office supplies and personal items.
Cable routing	A 60 mm grommet on each desktop allows monitor and power cables to pass toward the rear partition zone.
Privacy screening	Low framed panels surround the outer and rear edges, reducing visual distraction while preserving office visibility.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Total packed volume	0.62 m3
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan offices	Suitable for two-person task clusters where privacy screens, personal storage, and cable outlets are required.
Administrative or shared service areas	Useful for back-office, finance, procurement, or customer-support teams needing compact side-by-side seating separation.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-2P-CAB-2400

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-2P-CAB-2400

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-2P-CAB-2400Open Export Tool

Quick Actions

Post an RFQ

Product Description

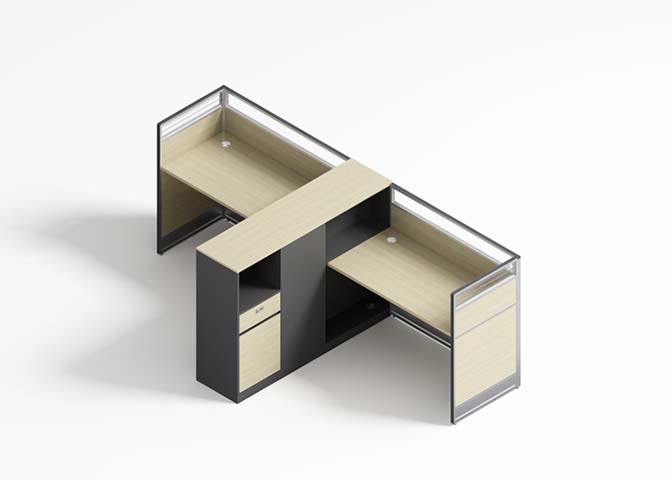

The Two-Person Linear Panel Workstation with Central Storage Pedestal is an unbranded office workstation designed for efficient shared seating with a degree of personal separation. Its two work surfaces are arranged in an opposed, back-to-back layout around a shared central pedestal, allowing each user to face away from the other while retaining an independent knee bay. Low framed panels follow the outer and rear edges, reducing visual distraction without fully enclosing the workspace or blocking general office visibility. Visually, the workstation combines light oak-woodgrain melamine-faced work surfaces with charcoal framework and storage body panels. Drawer and lower door faces match the desktop finish, while aluminum-look metal trim along the screen frames and top rails gives the divider system a structured, commercial appearance. The privacy panels use framed composite boards with neutral fabric-look faces and dark end posts, creating a restrained palette suited to coordinated office interiors. Construction is based on wood-based melamine-faced boards with sealed exposed edges, cam and bolt joinery, hinges, and a drawer pull. The desktop is 50 mm thick, and the support leg section uses an 80 mm main section with a 2 mm metal wall. Each main seat provides 680 mm of knee clearance height and 900 mm of knee clearance width. The central cabinet has fixed vertical sides and provides storage from both accessible sides: a small upper drawer and a lower door-enclosed compartment for office supplies or personal items. Cable management is integrated into each work position through a 60 mm plastic grommet, allowing monitor and power cables to pass toward the rear partition zone. The stated cable opening is 80 mm in diameter, with a cable tray depth of 120 mm. Rated load capacity includes a distributed desktop static load of 100 kg per workstation, a 30 kg recommended desktop point-load limit, 40 kg on the central pedestal top, 15 kg per drawer, and 20 kg on the lower cabinet shelf. This model is appropriate for open-plan offices, two-person task clusters, administrative offices, back-office and finance teams, procurement areas, shared service spaces, and customer-support environments. It is particularly useful where compact separation, personal storage, and desktop cable outlets are needed in a single coordinated unit. Procurement planning should account for a net product weight of 95 kg, seating for two users, and assembly time referenced at 40 minutes per set. Packaging information should be confirmed at order placement because the supplied records include both a two-carton set reference and a four-carton packaged gross weight and volume reference. The workstation should be specified for indoor office use, and delivery access, floor protection, and assembly resources should be arranged around the packed panels, top, and separate pedestal packaging.

Two-Person Linear Panel Workstation with Central Storage Pedestal Specifications
