PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total seated-user capacity	2 users
Distributed work-surface load	80 kg per workstation
Pedestal drawer static load	15 kg per drawer
Open shelf load	10 kg
Panel divider lateral stability load	20 kg at 900 mm height
Product net weight	135 kg
Floor loading	47 kg/m2
Colorway count	2 finishes visible
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm melamine-faced particleboard with PVC edge banding
Storage cabinets	18 mm melamine-faced panel construction in charcoal and light oak finish
Divider framing	Dark aluminum or powder-coated steel extruded frame with square corner posts
Privacy infill	Ribbed translucent glass or acrylic panels with horizontal lines
Cabinet hardware	Steel drawer slides, recessed handles and a lock escutcheon
Support structure	Floor-bearing side panels with black modesty/knee panels

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating layout	Two users work back-to-back on mirrored L-shaped desks with independent knee openings
Privacy separation	Framed ribbed dividers provide 350 mm high visual screening above the work surface
Storage function	Each fixed pedestal includes one shallow drawer, one lower drawer or door, and one open cubby
Cable management	A 60 mm rear-corner grommet routes monitor and power cables below the work surface

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan offices	Suitable for two-person clerical or administrative clusters where privacy screening and individual storage are required.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-L2-2400x1200

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-L2-2400x1200

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-L2-2400x1200Open Export Tool

Quick Actions

Post an RFQ

Product Description

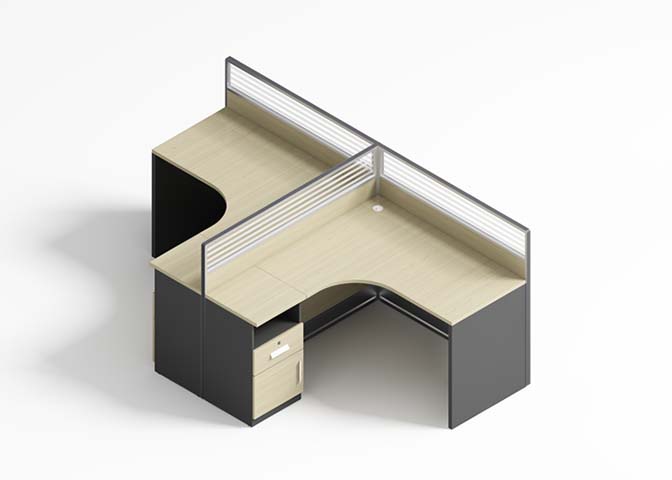

The Two-Person L-Shaped Panel Workstation with Storage Pedestals offers a structured modern seating arrangement for shared office environments. Model WS-L2400x1200 is an unbranded office workstation configured for two users who work back-to-back at mirrored L-shaped desks. Each position has an independent knee opening, while framed ribbed dividers create a defined boundary between work zones and provide 350 millimeters of visual screening above the work surface. The layout combines a main desk and return surface with dark-framed privacy infills, charcoal cabinetry, and light oak storage panels for a coordinated panel-system appearance. Construction balances panel-based support with metal and hardware components. Work surfaces use 25 millimeter melamine-faced particleboard with PVC edge banding and present a finished top thickness of 50 millimeters. Storage cabinets are formed from 18 millimeter melamine-faced panels in charcoal and light oak finishes, with steel drawer slides, recessed handles, and a lock escutcheon. Divider frames are produced with dark aluminum or powder-coated steel extrusions and square corner posts, paired with ribbed translucent glass or acrylic panels featuring horizontal lines. Floor-bearing side panels and black modesty or knee panels support the installation, while the 80 millimeter main support section uses 2 millimeter metal wall construction. Each fixed pedestal supplies personal storage with one shallow drawer, one lower drawer or door, and one open cubby. Cable management is integrated through a rear-corner grommet that routes monitor and power cables below the work surface. The stated cable opening is 80 millimeters in diameter, paired with a cable tray depth of 120 millimeters; the functional seating specification also identifies a 60 millimeter rear-corner grommet. Main seat knee clearance is 680 millimeters high and 900 millimeters wide. Rated capacity is two seated users, with an 80 kilogram distributed work-surface load per workstation, 15 kilograms static load per pedestal drawer, 10 kilograms for the open shelf, and 20 kilograms lateral stability load on the panel divider at 900 millimeters height. Product net weight is 135 kilograms, and floor loading is 47 kilograms per square meter. This workstation is suited to open-plan offices and two-person clerical or administrative clusters requiring privacy screening and individual storage. Procurement planning should account for fixed panel installation, floor-bearing supports, and assembly time of 40 minutes per set. Packaging references vary between two and four cartons, with packaged gross weight listed as 180 kilograms per set and packaging volume as 1 cubic meter per set; the main top pack measures 2500 by 1050 by 350 millimeters, with the return and pedestal packed separately.

Two-Person L-Shaped Panel Workstation with Storage Pedestals Specifications
