PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Divider panel height	1200 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended users	2 persons
Desktop distributed load	80 kg per workstation
Pedestal drawer load	20 kg per drawer
Open shelf load	15 kg per shelf
Static stability load	160 kg total cluster
Unit net weight	185 kg
Panel fastener torque target	12 Nm for cam-lock and bracket connections
Drawer slide cycle target	50,000 open-close cycles
Warranty target	5 years
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface and shelves	25 mm wood-grain melamine-faced particleboard with sealed black or charcoal edge banding
Structural frame and posts	40 x 40 mm charcoal powder-coated steel or aluminum extrusion with connector brackets
Privacy panel faces	Fabric-laminated board or tackable fabric panel over an engineered-wood core
Translucent divider strip	5 mm frosted ribbed acrylic or tempered glass insert held in an aluminum channel
Pedestal and cabinet fronts	18 mm melamine-faced engineered board with charcoal drawer header and wood-tone lower front
Hardware and cable parts	Steel lock core, drawer slides, cam connectors, leveling feet and plastic 80 mm cable grommet

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Two-user workspace	Two separated L-configuration desks share central screens while retaining individual desktop, knee and storage zones
Privacy and visual division	Floor-mounted 1200 mm panels with fabric lower faces and translucent upper strips reduce sightlines while transmitting ambient light
Integrated storage	Each seat is served by a lockable drawer front, lower storage compartment and overhead open shelving for documents and personal items
Cable management	An 80 mm desktop grommet routes monitor and power cables into the rear panel cavity or under-desk zone

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Total carton volume	1.32 CBM
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office cluster	Suits two-person accounting, administrative or procurement teams needing privacy screens, immediate file storage and monitor cable routing
Staff workstation or supervisor area	Fits a 2.8 x 2.8 m office bay where two users require separate work surfaces but share a compact L-shaped footprint

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office desk strength and durability	EN 527and EN 527
Storage furniture stability	EN 14073and EN 14073
Indoor panel emissions	EN 13986 with declared E1 formaldehyde class
Fabric upholstery behavior	EN 1021cigarette ignition resistance

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Desktop and panel base material	GB/T 39600 formaldehyde emission class E1 or lower
Furniture structural safety	GB/T 3324 general technical requirements for wooden furniture

Standardized tender description text

This product must meet the following technical requirements:
1. Desktop and panel base material: GB/T 39600 formaldehyde emission class E1 or lower;
2. Furniture structural safety: GB/T 3324 general technical requirements for wooden furniture;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-L2-OH-2800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-L2-OH-2800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-L2-OH-2800Open Export Tool

Quick Actions

Post an RFQ

Product Description

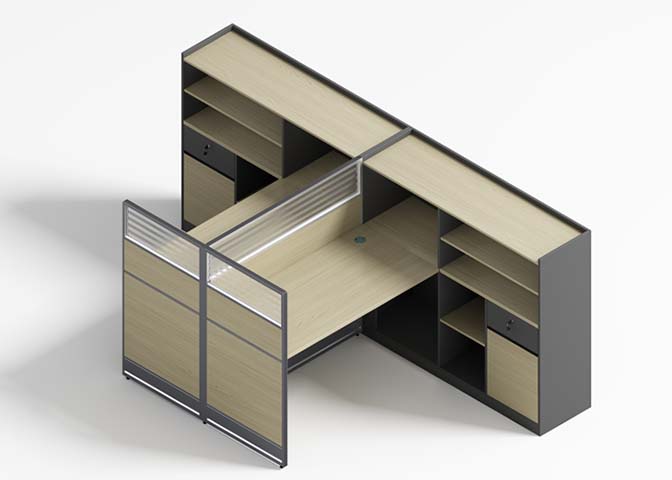

The Two-Person L-Shaped Panel Workstation with Overhead Storage and Pedestals is an unbranded office workstation, model WS-L2-OH-2800, designed for two users who need separated work surfaces within a compact L-shaped footprint. Its layout pairs two distinct desks with central divider screens, giving each person an individual desktop, knee clearance, and storage zone while preserving an orderly shared cluster appearance. Visually, the workstation combines wood-grain melamine surfaces with charcoal metal framing, black or charcoal edge banding, fabric-covered divider panels, and translucent upper inserts. The floor-mounted privacy panels rise to 1200 mm and use fabric lower faces with frosted ribbed acrylic or tempered glass strips held in aluminum channel. This arrangement reduces direct sightlines between users while allowing ambient light to pass through. The pedestal and cabinet fronts use melamine-faced engineered board with charcoal drawer headers and wood-tone lower fronts, creating a coordinated commercial office look. Construction is based on 25 mm wood-grain melamine-faced particleboard for work surfaces and shelves, with sealed edge banding and a finished top thickness of 50 mm. The structural posts use 40 by 40 mm charcoal powder-coated steel or aluminum extrusion with connector brackets, while the support section features an 80 mm main section with 2 mm metal wall. Hardware includes steel lock cores, drawer slides, cam connectors, and leveling feet. Cam-lock and bracket connections have a panel fastener torque target of 12 Nm. The unit net weight is 185 kg. Functionality is built around daily office use. Each seat is served by a lockable drawer front, lower storage compartment, and overhead open shelving suitable for documents and personal items. An 80 mm desktop cable grommet routes monitor and power cables into the rear panel cavity or under-desk area, supported by a cable tray with 120 mm depth. Load guidance includes an 80 kg distributed desktop load per workstation, 20 kg per pedestal drawer, 15 kg per open shelf, and 160 kg total static stability load for the cluster. Each main seat provides 680 mm high and 900 mm wide knee clearance. The workstation is appropriate for open-plan accounting, administrative, or procurement teams, as well as staff work areas or supervisor spaces. It fits a 2.8 by 2.8 m office bay where two users require privacy, nearby file storage, and monitor cable routing without taking up separate desk footprints. Procurement planning should account for delivery, access, and assembly logistics. The product is supplied as one set, with packaging references indicating separate cartons and a main top pack measuring 2500 by 1050 by 350 mm; the return and pedestal are packed separately. Reference assembly time is 40 minutes per set. Buyers should also verify material preference between acrylic and tempered glass inserts, confirm frame material availability, and plan placement around floor-mounted panels, cable access, and the need for level subflooring.

Two-Person L-Shaped Panel Workstation with Overhead Storage and Pedestals Specifications
