PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Workstation capacity	2 persons
Distributed desktop load	100 kg per seat
Point load at worktop center	40 kg
Cabinet shelf load	20 kg per shelf
Panel divider lateral stability load	30 kg per panel
Unit net weight	180 kg
Total packaging weight	210 kg
Recommended floor live load	2.5 kPa per occupied workstation zone
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop	25 mm wood-grain melamine-laminated particleboard with sealed exposed edges
Edge banding	2 mm PVC edge banding on high-contact desktop and cabinet edges
Divider panels	40 mm charcoal-gray laminated or fabric-faced panel with an aluminum-trimmed frame
Upper privacy screens	Slatted semi-translucent divider inserts in a metal retaining frame
Structural frame	Powder-coated steel rectangular posts and horizontal rails with silver-gray exposed trim
Under-desk modesty panel	Charcoal-gray vertical panel following the curved front edge

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Workstation configuration	Two independent L-shaped desks face outward from a shared central divider line and provide separate seated work zones
Privacy separation	Solid lower panels block desk-level sight lines while slatted upper screens retain partial visual openness
Integrated storage	Each seat includes an adjacent low cabinet suitable for personal items, documents, or CPU storage
Modular installation	Panel posts, rails, and desk surfaces connect as a reconfigurable cluster fixed to the floor through leveling feet, not castors

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Total carton gross weight	210 kg
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Suitable for two staff who require separated L-shaped work surfaces, under-desk privacy, and adjacent personal storage in a compact open office
Administrative or back-office workspace	Suitable for clerical, finance, customer-service, or data-entry teams using a laptop, monitor, documents, and task seating at a 750 mm work height

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-2P-LPANEL-2800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-2P-LPANEL-2800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-2P-LPANEL-2800Open Export Tool

Quick Actions

Post an RFQ

Product Description

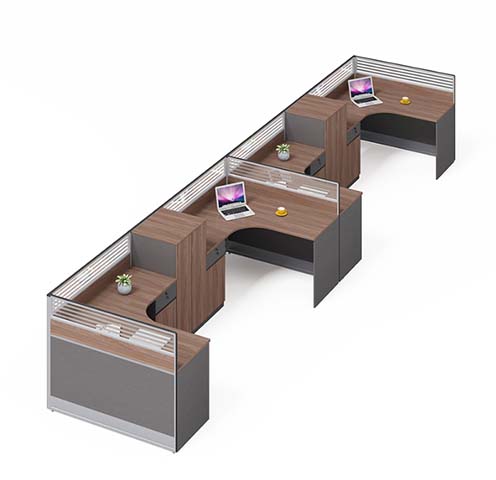

The Two-Person Facing L-Shaped Panel Workstation with Dividers and Side Storage is an unbranded office workstation designed for compact shared work areas. Model WS-2P-LPANEL-2800 arranges two independent L-shaped desks facing outward from a shared central divider line, giving each person a separate seated zone while keeping the overall footprint organized as one coordinated cluster. Visually, the workstation pairs wood-grain laminate worktops with charcoal-gray panel partitions, silver-gray exposed metal trim, and slatted semi-translucent upper screens. The solid lower panels block desk-level sight lines, supporting privacy between users, while the slatted inserts preserve partial visual openness and help the installation feel less enclosed. A charcoal-gray modesty panel follows the curved front edge beneath each desk, completing the structured panel-built appearance. Construction combines wood-grain melamine-laminated particleboard worktops with sealed exposed edges and 2 mm PVC edge banding on high-contact desktop and cabinet edges. The finished top thickness is 50 mm. Divider panels are 40 mm charcoal-gray laminated or fabric-faced panels set in aluminum-trimmed frames, while the structural frame uses powder-coated steel rectangular posts and horizontal rails. The main support section is 80 mm with a 2 mm metal wall. Effective knee clearance is 680 mm high and 900 mm wide per main seat. Each seat includes an adjacent low cabinet suited to personal items, documents, or CPU storage. Cable management is provided through 80 mm diameter cable openings and a cable tray with 120 mm depth. The panel-and-rail system supports modular installation: posts, rails, and desk surfaces connect as a reconfigurable cluster fixed to the floor through leveling feet rather than castors. The workstation is suitable for open-plan offices where two staff need separated L-shaped surfaces, under-desk privacy, and nearby personal storage. It also fits administrative and back-office environments such as clerical, finance, customer-service, and data-entry work, supporting laptop, monitor, document, and task-seating use at a 750 mm work height. Procurement planning should account for a two-person capacity, integrated storage, and a panel-based layout that requires floor positioning and assembly. The unit weighs 180 kg, with packaging references indicating a total carton gross weight of 210 kg. Buyers should verify package counts and delivery details with the supplier, plan access for two cartons, and allow installation time following the supplied assembly guidance. Rated loads include 100 kg distributed desktop load per seat, 40 kg point load at the worktop center, 20 kg per cabinet shelf, and 30 kg lateral stability load per divider panel.
