PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test
Recommended Procurement Warranty	Structure 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel
Primary Connector Specification	Reference M6-M8 with at least 2 fixing points per main support
Reference Finish / Color Count	Recommended 6top finishes and 3frame colors

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

No data is available for this section.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-2P-L-2800-CS

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-2P-L-2800-CS

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-2P-L-2800-CSOpen Export Tool

Quick Actions

Post an RFQ

Product Description

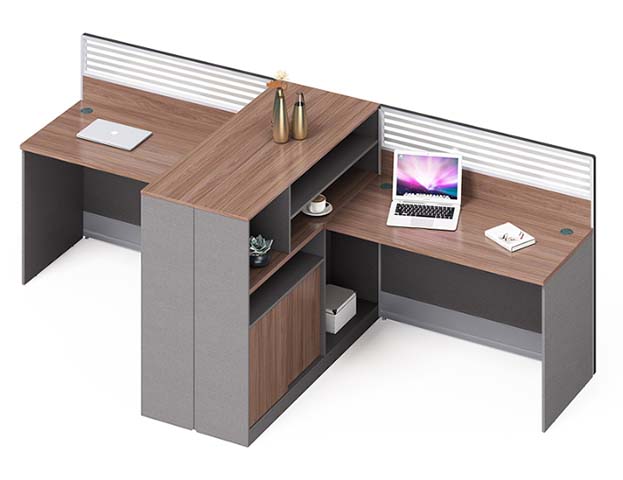

The Two-Person L-Shaped Panel Workstation with Central Storage, model WS-2P-L-2800-CS, is an unbranded office workstation designed to provide two coordinated work positions within a structured panel-based layout. Its L-shaped form creates an efficient corner-oriented arrangement, while the central storage and divider screens separate individual work zones without making the configuration feel isolated. The visual character is defined by grey composite panels, wood-grain surface options, slatted fabric-style divider screens, and metal support rails, giving the workstation a contemporary office appearance suitable for open-plan and partitioned environments alike. The workstation is constructed primarily from melamine-faced engineered wood, with 25 mm primary panels and a load-bearing top that may use a 40 mm composite build-up. The finished top thickness is 50 mm, edged with 2 mm edge banding for a neat border and added protection. Support is provided by an 80 mm main leg or support section with 2 mm metal wall thickness, using cold-rolled steel framing. Main connections reference M6 to M8 fixings, with at least two fixing points per main support, contributing to the stable, structured build expected in regular commercial use. Functionally, the layout supports two main seated positions, each with 680 mm high and 900 mm wide effective knee clearance. The integrated central storage cabinetry helps users keep documents, stationery, and personal work items within reach while preserving desktop space. Drawer slides are referenced for a 45 kg load per pair and a 50,000-cycle service target, while hinges carry an 80,000-opening acceptance target. The work surface has a 150 kg uniformly distributed static load reference, and the finish is assessed against an acceptance target of at least 4,000 abrasion cycles or an equivalent finish-system test. Cable management is incorporated through 80 mm diameter cable openings and a tray with 120 mm depth. The system has a reference capacity for 10 power or data cables and a tray load reference of 10 kg, supporting organized placement for monitors, power supplies, and network connections. The main joints are intended to support five controlled assembly cycles, which is useful for offices that may relocate or reconfigure teams. This workstation is appropriate for corporate work floors, administrative offices, educational staff rooms, trading or support teams, and residential study areas where two users require defined work surfaces and shared storage. Procurement planners should review finish and frame choices, with six recommended top finishes and three frame colors available. Warranty guidance is five years for the structure, three years for hardware, and two years for the finish. Installation planning should allow for a 40-minute reference assembly time per set. Packing information varies in the supplied logistics references, including a two-carton set reference and a separate four-carton gross-weight record, so buyers should confirm the final shipment configuration, dimensional compatibility, storage layout, cable access, and on-site assembly support before purchase.

Two-Person L-Shaped Panel Workstation with Central Storage Specifications
