PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Seating capacity	4 users
Distributed desktop load	160 kg total
Single desktop point load	40 kg
Central cabinet shelf load	15 kg per shelf
Product net weight	185 kg
Divider panel lateral stability load	20 kg per panel
Color options	2 visible finishes
Recommended warranty	5 years
Hardware cycle target	100,000 door and drawer cycles
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface boards	25 mm wood-composite board with walnut woodgrain laminate and sealed impact-resistant edges
Vertical support panels	18 mm grey and charcoal melamine-faced composite panels with matching edge banding
Privacy screens	32 mm framed panel with opaque lower board and horizontal slatted upper insert
Central cabinet	18 mm woodgrain composite door and shelf panels with grey carcass panels
Joining and trim hardware	Steel connector plates, screw cam fittings, aluminum-look screen trim and plastic edge profiles
Cable management parts	60 mm plastic grommets with removable caps at each desktop cable opening

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Four-way workspace division	Cross-formed central spine separates four outward-facing users while sharing one compact footprint
Privacy and acoustic sight-line control	350 mm desktop-mounted screens block direct sight lines while slatted upper sections retain airflow
Cable routing	Each seat includes a rear 60 mm grommet leading cables toward the central panel cavity
Central shared storage	The central unit combines an open shelf, closed door compartment and side divider storage for shared office materials

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan offices	Suitable for teams needing four independent seats with visual separation in one compact 2800 x 2400 mm footprint
Administrative and shared-service areas	Central cabinet and cable grommets support documents, shared supplies, laptops and monitor cabling

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1 desk safety	Use EN 527for office desk safety, structural integrity and dimensional requirements
EN 527-2 mechanical test methods	Apply EN 527strength, durability and stability test methods to desktops, supports and panels
EN 1022 stability reference	Use EN 1022 stability-test principles for seating-associated desk assemblies and screens
EN 13986 wood-based panels	Specify EN 13986 panel properties and declared performance for composite board components

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5 desk performance	Use ANSI/BIFMA X5.5 for desk strength, fatigue, drop and load tests on four desktops and supports
ANSI/BIFMA X5.6 panel systems	Apply ANSI/BIFMA X5.6 to panel connection strength, screen loading and workstation stability
ANSI/BIFMA G1 ergonomic checklist	Recommended references: ANSI/BIFMA G1, reach

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324 dimensional and structural fit	Apply GB/T 3324 for wooden furniture dimensions, tolerances and inspection of the desk and cabinet boards
GB/T 3325 physical performance	Use GB/T 3325 test methods for surface wear, stain resistance, edge adhesion and structural strength
GB 18580 formaldehyde control	Specify GB 18580 for indoor formaldehyde emission limits of wood-based panels
GB/T 28001 ergonomic layout reference	Use GB/T 28001 principles when checking seat clearance, work height and reach zones

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324 dimensional and structural fit: Apply GB/T 3324 for wooden furniture dimensions, tolerances and inspection of the desk and cabinet boards;
2. GB/T 3325 physical performance: Use GB/T 3325 test methods for surface wear, stain resistance, edge adhesion and structural strength;
3. GB 18580 formaldehyde control: Specify GB 18580 for indoor formaldehyde emission limits of wood-based panels;
4. GB/T 28001 ergonomic layout reference: Use GB/T 28001 principles when checking seat clearance, work height and reach zones;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-CR4-WAL-GRY-2824

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-CR4-WAL-GRY-2824

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-CR4-WAL-GRY-2824Open Export Tool

Quick Actions

Post an RFQ

Product Description

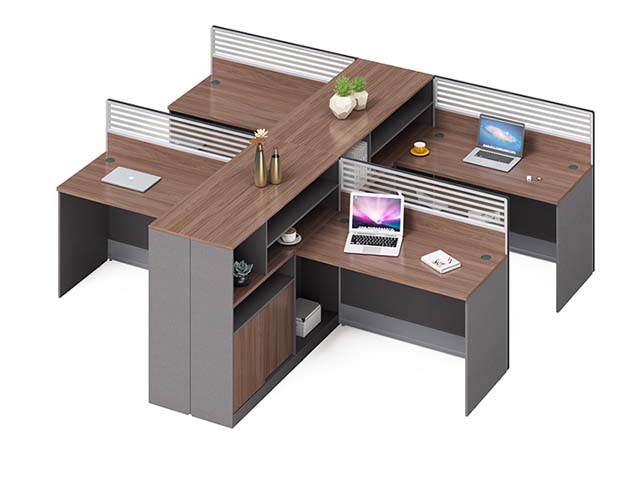

The Four-Person Cross-Shaped Panel Workstation is an unbranded office cluster designed for compact team layouts, model WS-CR4-WAL-GRY-2824. Its cross-formed central spine divides the workspace into four outward-facing seats, giving each user a defined zone while keeping the installation within one shared footprint. The visible finish combines walnut-look work surfaces with grey and charcoal panels, producing a structured commercial appearance suited to coordinated office interiors. Two visible finishes are available. Each seat is visually separated by desktop-mounted privacy screens with an opaque lower board and a horizontal slatted upper insert. The lower section blocks direct sight lines, while the slatted portion preserves an open feel and airflow. Grey and charcoal melamine-faced composite panels form the vertical dividers and support structure, with matching edge banding for a consistent finish. Aluminum-look trim outlines the privacy screens, and plastic edge profiles refine exposed panel edges. The work surfaces use 25 mm wood-composite board finished with walnut woodgrain laminate and sealed impact-resistant edges, with a finished top thickness of 50 mm. Understructure is based on 80 mm support sections with 2 mm metal wall construction, joined with steel connector plates and screw cam fittings. The workstation is rated for a distributed desktop load of 160 kg in total, a single desktop point load of 40 kg, and divider panel lateral stability load of 20 kg per panel. Net product weight is 185 kg. Practical functions are integrated directly into the layout. Every seat includes a rear 60 mm plastic cable grommet with a removable cap, routing monitor and power cables toward the central panel cavity; cable openings are 80 mm in diameter with a 120 mm deep tray. The central cabinet combines an open shelf, a closed door compartment, and side divider storage for shared office materials, with shelf load capacity of 15 kg per shelf. Door and shelf panels use 18 mm woodgrain composite, while the carcass is finished in grey. This cluster is well suited to open-plan offices where four users need independent work areas with visual separation without consuming separate desk footprints. It is also appropriate for administrative and shared-service areas requiring document storage, shared supplies, laptop use, and monitor cabling in one organized unit. Specified knee clearance is 680 mm high and 900 mm wide per main seat. Procurement planners should allow for a four-seat footprint of 2800 x 2400 mm, confirm site access and floor load suitability in advance, and coordinate assembly resources. Reference packaging data indicates delivery in multiple cartons with a packaging volume of 1 m³ per set and reference assembly time of 40 minutes per set. Because storage, privacy, cable management, and division are built in, the workstation reduces the need to specify separate screens or ancillary storage for the same four-person cluster.

Four-Person Cross-Shaped Panel Workstation with Central Storage and Privacy Screens Specifications
