PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall workstation footprint	3600 x 650 x 1200 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended users	2 people
Distributed work-surface load	100 kg total
Per-user desktop load	50 kg
Central cabinet top and shelf load	40 kg
Drawer load per drawer	15 kg
Lower cabinet shelf load	20 kg per shelf
Product net weight	135 kg
Floor loading	58 kg/m2
Assembly crew time	90 minutes for two installers
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm melamine-faced wood-based panel with walnut grain and sealed impact edges
End support panels	Charcoal melamine-faced wood-based panels with floor-bearing vertical legs
Modesty panels	Dark grey or black rear modesty panels below the work surface
Central cabinet carcass	500 mm deep melamine panel body with grey upper fronts and walnut lower doors
Privacy screen frame	Silver-grey metal or aluminium frame with black outer top rail
Screen infill	Horizontal light-grey slats with open spacing between rails

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Dual seating layout	Two 1800 mm work zones share one continuous 3600 mm top and a central dividing screen post
Cable management	Four 80 mm grommets route monitor, laptop, and power cables below the work surface
Storage allocation	Each user receives one upper drawer and one lower door compartment for personal or team storage
Privacy separation	350 mm high rear slatted screen reduces visual distraction while retaining open sight lines above it

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Total packaging volume	1.12 m3
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office use	Suitable for two staff in clerical, administrative, or customer-service areas where seating privacy and shared storage are required
Reception back-office or team zone	Can be placed against a rear wall or walkway divider to provide two computer work positions with cable outlets and personal lockable storage

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-2P-3600-CAB-SCR

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-2P-3600-CAB-SCR

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-2P-3600-CAB-SCROpen Export Tool

Quick Actions

Post an RFQ

Product Description

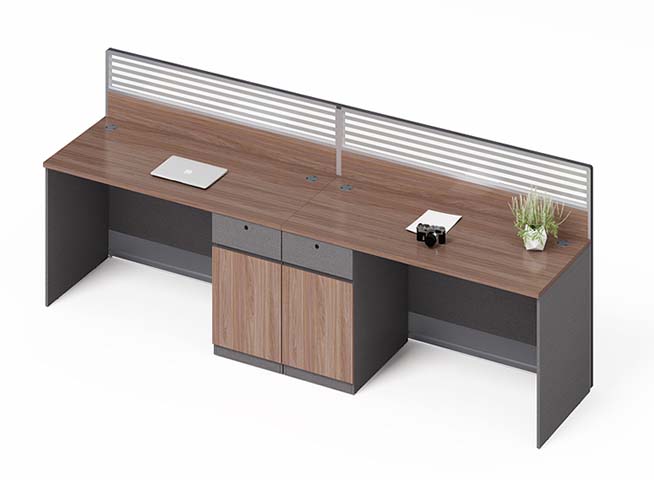

The Two-Person Linear Office Workstation combines a continuous shared work surface, central storage, and a slatted privacy screen in a structured layout for two users. Its 3600 mm top is divided into two 1800 mm work zones, with a central dividing screen post supporting clear personal space while preserving the clean line of a single bench-style workstation. The rear screen rises 350 mm above the work surface and uses horizontal light-grey slats with open spacing, reducing visual distraction without creating a fully enclosed feeling. Sight lines remain open above the screen, supporting a balanced office environment that suits both focused tasks and easy communication. Visually, the workstation pairs a walnut-grain work surface with charcoal end support panels, dark grey or black modesty panels, and a silver-grey metal or aluminium screen frame finished with a black outer top rail. Grey upper fronts and walnut lower doors on the central storage add a coordinated two-tone appearance. The work surface is made from 25 mm melamine-faced wood-based panel with sealed impact edges, while the finished top thickness is 50 mm. Floor-bearing charcoal melamine panels form the main end supports, complemented by an 80 mm support section with a 2 mm metal wall. Functionality is centered on shared efficiency and individual allocation. Four 80 mm cable grommets guide monitor, laptop, and power cables below the surface, and a 120 mm deep cable tray helps organize wiring. Each user has one upper drawer and one lower door compartment in the central cabinet, providing separate storage for personal or team use. The layout offers 680 mm high and 900 mm wide knee clearance per main seat. Rated loading is 100 kg across the distributed work surface, 50 kg per user on the desktop, 40 kg on the central cabinet top and shelf, 15 kg per drawer, and 20 kg per lower cabinet shelf. This model is well suited to open-plan clerical, administrative, and customer-service areas, as well as reception back-office spaces and team zones. It can be positioned against a rear wall or used as a walkway divider where two computer positions, cable outlets, and personal storage are needed. Procurement planning should account for the 3600 x 650 x 1200 mm footprint, 135 kg net weight, and two-user capacity. The reference packaging information indicates separate packing for the main top and return or pedestal, with delivery and receiving teams confirming the applicable carton count and handling requirements before installation. The listed assembly time is 40 minutes per set, and access through doorways, lifts, and circulation routes should be checked against the packaged component dimensions.

Two-Person Linear Office Workstation with Central Storage and Slatted Privacy Screen Specifications
