PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	190 kg
Distributed work-surface load per seat	80 kg
Pedestal drawer load	25 kg per drawer
Recommended users	4 persons
Chair movement clearance	700 mm wide
Worktop point load	30 kg
Fastener lateral stability target	20 kg horizontal force per module
Drawer slide durability target	40000 cycles
Adjustable foot leveling range	10 mm
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm melamine-faced particleboard with visible woodgrain finish and sealed edge banding
Storage cabinets	Gray melamine-faced panel sides with woodgrain drawer fronts and integrated drawer pulls
Divider panels	Translucent gray polymer or acrylic louver panels in anodized or powder-coated aluminum-style frames
Support frame	Gray powder-coated square steel posts and rails connecting screens and desk modules
Modesty panels	Black rigid panel under the rear edge of each work surface
Edge and hardware	PVC edge banding, cam-lock connectors, drawer slides, hinges, and leveling feet

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Privacy division	Cross-mounted 350 mm high divider screens separate four seated users while retaining open sight lines above the panels.
Work position	Each user receives an L-shaped 1400 x 1200 mm surface with a curved inner knee cutout for laptop, monitor, and paperwork placement.
Storage configuration	At least two visible under-desk pedestals provide drawer storage; the remaining seats use fixed modesty panels and open knee space.
Floor leveling	Base-leveling feet or glides should compensate by 10 mm and keep the four connected modules stable on carpet or tile.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Total carton gross weight	210 kg
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office cluster	Suits four-person administrative, data-entry, or customer-service teams needing defined privacy and shared compact planning.
Call center or back-office zone	Cross partitions and individual L-shaped surfaces support laptop, monitor, paperwork, and under-desk storage in high-density seating areas.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office work tables safety and dimensional requirements, applicable to work-surface height, strength, and stability.
EN 527-2:2002	Office work tables mechanical safety requirements and test methods for structural performance.
EN 1023-1:1997	Office storage furniture dimensional and general safety requirements applicable to under-desk pedestals.
EN 1023-2:2000	Office storage furniture safety and strength test requirements for drawers and cabinets.
EN 13986:2004	Wood-based panels for construction, useful as a panel-performance reference where explicitly specified.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5:2021	Office desk and table safety, durability, and structural performance reference for each work surface.
ANSI/BIFMA X5.9:2019	Storage, shelving, lockers, and pedestals standard for drawer and cabinet acceptance.
ANSI/BIFMA X7.1:2022	Furniture emissions standard, recommended if low-emission panel procurement is required.
BIFMA e3-2023 Level	Sustainability certification framework for panel, adhesive, finish, and packaging documentation when specified.

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2024	General technical requirements for wooden furniture, applicable to board surfaces, edge sealing, dimensional fit, and finish acceptance.
GB/T 3325-2017	Metal furniture technical requirements applicable if the frame, posts, and supports use steel construction.
GB/T 10357.5-2024	Furniture mechanical surface-durability test method, suitable for work-surface load and abrasion acceptance.
GB 18580-2017	Formaldehyde emission limit for wood-based panels, recommended for panel procurement verification.
GB/T 3326-2016	Furniture dimensional inspection basis for verifying workstation and clearance dimensions.

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2024: General technical requirements for wooden furniture, applicable to board surfaces, edge sealing, dimensional fit, and finish acceptance.;
2. GB/T 3325-2017: Metal furniture technical requirements applicable if the frame, posts, and supports use steel construction.;
3. GB/T 10357.5-2024: Furniture mechanical surface-durability test method, suitable for work-surface load and abrasion acceptance.;
4. GB 18580-2017: Formaldehyde emission limit for wood-based panels, recommended for panel procurement verification.;
5. GB/T 3326-2016: Furniture dimensional inspection basis for verifying workstation and clearance dimensions.;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CW-4P-X-WS

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CW-4P-X-WS

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CW-4P-X-WSOpen Export Tool

Quick Actions

Post an RFQ

Product Description

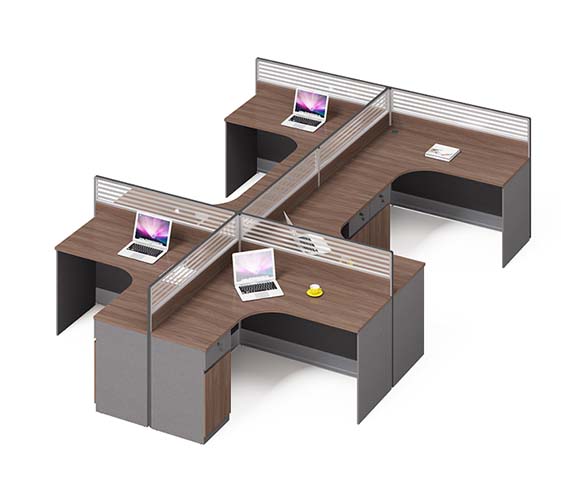

The Four-Person Cross-Shaped Cubicle Workstation with Divider Screens, model CW-4P-X-WS, is an unbranded office workstation designed for four users in a compact, organized cluster. Its cross-mounted layout places four L-shaped work positions around a central division, giving each person a defined seat while maintaining a coordinated group footprint. Translucent gray louvered divider screens rise 350 mm between users, providing visual separation without closing the workspace above. Each work surface measures 1400 x 1200 mm and includes a curved inner knee cutout, supporting a monitor, laptop, paperwork, and daily task items in a practical individual zone. Black modesty panels beneath the rear edges add a finished appearance and discreet screening under selected desks. Construction combines melamine-faced particleboard with gray powder-coated steel. The work surfaces use 25 mm melamine-faced particleboard with a visible woodgrain finish and sealed PVC edge banding, while the finished top thickness is 50 mm. Square steel posts and rails connect the desk modules and divider screens, with an 80 mm main support section and 2 mm metal wall. Divider panels are translucent gray polymer or acrylic louver panels set in anodized or powder-coated aluminum-style frames. Storage cabinets feature gray melamine-faced panel sides, woodgrain drawer fronts, and integrated pulls. Hardware includes cam-lock connectors, drawer slides, hinges, and leveling feet. The workstation provides at least two visible under-desk pedestals with drawer storage, while the remaining seats use fixed modesty panels and open knee space. Each main seat offers 680 mm high and 900 mm wide effective knee clearance, with 700 mm wide chair movement clearance. An 80 mm diameter cable opening and a cable tray with 120 mm depth help manage power and data cords. Leveling feet or glides compensate by 10 mm for carpet or tile floors. Rated capacities include 80 kg distributed work-surface load per seat, a 30 kg worktop point load, and 25 kg per pedestal drawer; the fastener lateral stability target is 20 kg horizontal force per module. Net weight is 190 kg. This configuration is well suited to open-plan administrative teams, data-entry groups, customer-service clusters, call centers, and back-office zones where four-person collaboration, personal privacy, and efficient floor planning must coexist. It can also serve residential workrooms or family office spaces that need multiple separate study positions in one structured unit. Buyers should confirm delivery and assembly logistics, including packaged configurations, available storage placement, floor surface, cable access, and chair clearance before installation.
