PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Seating capacity	6 users
Distributed work surface load	80 kg per workstation
Point load at desktop center	40 kg
Drawer static load	15 kg per drawer
Station net weight	420 kg total
Reconfiguration unit weight	70 kg per workstation
Floor load	29 kg per square meter
Recommended aisle clearance	900 mm around cluster
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm melamine-faced particleboard with walnut-grain finish and sealed impact edges
Edge banding	2 mm PVC edge banding on exposed desktop and cabinet edges
Support panels	18 mm charcoal-black melamine panels forming fixed desk legs and modesty panels
Divider screen	Translucent frosted polycarbonate or acrylic insert with horizontal louver texture in an aluminium or steel frame
Screen trim and posts	Grey fabric-covered or powder-coated steel screen frame with vertical connector posts
Storage pedestal	Walnut and grey melamine cabinet body with one drawer, one door compartment and black interior shelf

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Workstation division	Six individual L-shaped work positions separated by cross-connected low screens, giving each user a defined corner desk and visual privacy
Cable management	Two 60 mm cable grommets per workstation route monitor and power cables through the desktop; under-desk tray capacity should be specified by supplier
Privacy screening	450 mm high frosted louvered screens reduce cross-desk sightlines while retaining light transmission and seated communication
Storage configuration	At least one integrated under-desk pedestal provides a lockable drawer, door compartment and shelf for personal office storage

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Largest carton dimensions	1500 x 700 x 120 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan offices	Suitable for six-person team clusters where users need individual computer workspace, low visual privacy and shared supervision
Call centers and administration areas	Appropriate for high-density task seating because each 1400 x 1200 mm station has a laptop zone, cable grommets and personal storage

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office work tables safety, strength and durability requirements for desk structures
EN 527-2:2002	Office work tables dimensional safety requirements including seated work height and leg clearance
EN 1023-1:1997	Office storage furniture safety and strength requirements for the under-desk pedestal
EN 1023-2:2000	Office storage furniture structural strength and durability test requirements
EN 717-1:2004	Wood-based panel formaldehyde release determination by chamber method

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products test for structural safety, load performance and durability
ANSI/BIFMA X5.9-2019	Storage units test covering pedestals, drawers, doors, locks and shelf performance
ANSI/BIFMA X5.6-2022	Panel systems test for modular workstation panels, connections and accessories
ANSI/BIFMA e3-2019e	Furniture sustainability standard for material, energy, human and ecosystem impacts

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to panel desks, edge quality and dimensional inspection
GB/T 3325-2017	Metal furniture general technical requirements, applicable to steel frames, connectors and surface coating
GB/T 3326-2016	Furniture dimensional coordination, applicable to desk height, clearance and workstation layout checks
GB 18580-2017	Formaldehyde emission limit for wood-based panels, applicable to particleboard substrates used in desks and cabinets
GB/T 10357.5-2011	Furniture surface mechanical test method for coating and laminate wear resistance on desktops

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel desks, edge quality and dimensional inspection;
2. GB/T 3325-2017: Metal furniture general technical requirements, applicable to steel frames, connectors and surface coating;
3. GB/T 3326-2016: Furniture dimensional coordination, applicable to desk height, clearance and workstation layout checks;
4. GB 18580-2017: Formaldehyde emission limit for wood-based panels, applicable to particleboard substrates used in desks and cabinets;
5. GB/T 10357.5-2011: Furniture surface mechanical test method for coating and laminate wear resistance on desktops;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CW6-L1400-FS-GRY

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CW6-L1400-FS-GRY

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CW6-L1400-FS-GRYOpen Export Tool

Quick Actions

Post an RFQ

Product Description

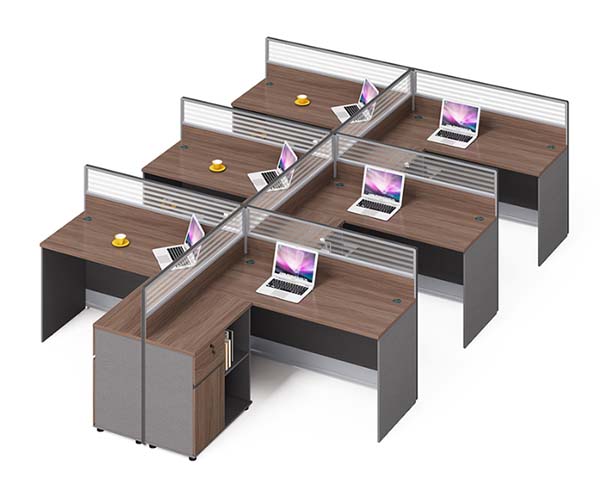

The Six-Person Cross-Shaped Modular Office Workstation combines six individual L-shaped desks into a structured team cluster, model CW6-L1400-FS-GRY, supplied without a brand label. Its cross-connected layout gives each person a defined corner workplace with a main work surface and a return, while low frosted divider screens meet at the centre to separate adjacent positions. The screens reduce direct cross-desk sightlines without blocking light or preventing seated conversation, producing a balanced setting for focused screen-based work and easy team communication. Walnut-grain work surfaces, charcoal-black support panels, grey screen framing and black modesty panels create a restrained commercial appearance suited to neutral office interiors. Each desk is built with 25 mm melamine-faced particleboard and sealed impact edges, with 2 mm PVC edge banding on exposed desktop and cabinet edges. The fixed desk legs and modesty panels use 18 mm charcoal-black melamine panels, supported by a charcoal steel structure with an 80 mm main section and 2 mm metal wall. Dividers feature a translucent frosted polycarbonate or acrylic insert with horizontal louver texture, held in an aluminium or steel frame and finished with grey fabric-covered or powder-coated steel trim and vertical connector posts. The finished top is 50 mm thick, and each main seat provides 680 mm high and 900 mm wide knee clearance. Practical provisions support daily office use. Every workstation includes two 60 mm cable grommets for monitor and power leads, together with cable openings and an under-desk cable route; tray capacity should be confirmed with the supplier. At least one integrated pedestal fits beneath the desk, offering a lockable drawer, a door compartment and a shelf for personal items. The drawer is rated for 15 kg static load, distributed work-surface load is 80 kg per workstation, and central desktop point load is 40 kg. Each 1400 by 1200 mm station also includes a laptop area. This configuration is appropriate for open-plan offices, six-person team clusters, call centres and administration floors where dense task seating, personal storage and shared supervision are required. The complete station weighs 420 kg, with a reconfiguration unit weight of 70 kg per workstation and floor load of 29 kg per square metre, so floor capacity and delivery access should be checked before purchase. Packaging details vary between supplied records; procurement teams should confirm carton count, dimensions, gross weight and assembly allocation. A reference assembly time of 40 minutes per set is provided.

Six-Person Cross-Shaped Modular Office Workstation with L-Shaped Desks and Frosted Screens Specifications
