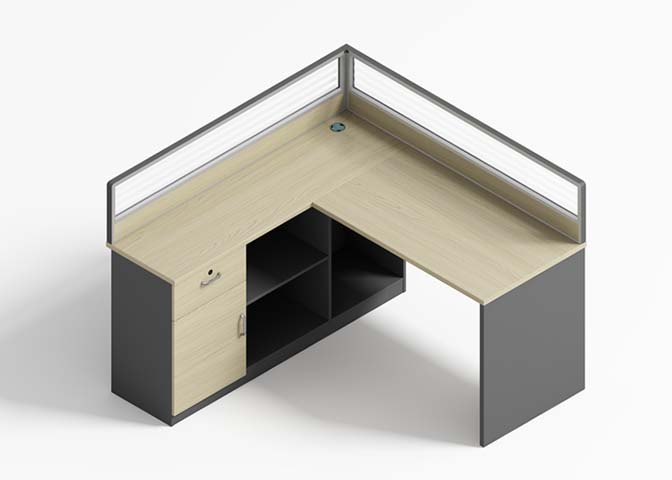

Product supplierL-Shaped Panel Workstation with Privacy Screen and Integrated Storage, 25 mm light oak-grain melamine-faced particleboard with sealed PVC edges
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Product net weight | 62 kg | |
|---|---|---|
| Distributed worktop load | 80 kg | |
| Drawer static load | 15 kg | |
| Open shelf load per compartment | 20 kg | |
| Single-user seating capacity | 1 person | |
| Worktop edge impact resistance | 2 mm PVC edge banding | |
| Drawer slide durability | 50000 open-close cycles | |
| Hardware corrosion resistance | 48 h neutral salt-spray acceptance test | |
| Recommended maximum monitor load | 25 kg | |
| Warranty period | 5 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | 25 mm light oak-grain melamine-faced particleboard with sealed PVC edges | |
|---|---|---|
| Storage cabinet | 18 mm charcoal and light oak melamine-faced panels with exposed shelf bays | |
| Right support leg | 25 mm charcoal vertical panel with floor-bearing edge | |
| Privacy divider | Aluminium or PVC frame with frosted translucent infill strips | |
| Drawer and door hardware | Brushed silver metal pull handle, lock cylinder and hinges | |
| Fasteners and connectors | Zinc-plated steel cam locks, screws and corner joining plates |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| L-shaped work surface | Two connected 600 mm deep work zones provide a 1400 mm main run and a 1200 mm storage return for corner offices | |
|---|---|---|
| Integrated storage | Left pedestal combines one lockable drawer, one lower door compartment and two adjacent open cubbies for files and CPU storage | |
| Cable management | One 60 mm round grommet at the rear corner routes monitor and power cables below the work surface | |
| Privacy and zoning | A 350 mm high two-run corner screen creates rear visual separation while retaining seated communication over the front |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Main carton dimensions | 1450 x 650 x 120 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Private office and managerial workstation | Suitable for one person needing a main task surface, rear return storage and a low privacy boundary in a closed office | |
|---|---|---|
| Reception or administrative corner | Fits reception back-offices, administration points and supervisor positions requiring document storage and cable routing |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Office furniture strength and durability | EN 15372:2008 for non-domestic storage and desk-integrated cabinet components | |
|---|---|---|
| Work surface safety and dimensions | EN 527:2011 for office worktable safety, strength and dimensional requirements | |
| Mechanical stability | EN 1730:2000 test method for table stability | |
| Formaldehyde emission | EN 13986:2004 wood-based panel E1 classification |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Formaldehyde emission | GB/T 39600E1 limit for wood-based panel components | |
|---|---|---|
| Physical and chemical surface resistance | GB/T 4893 series for wear, impact, dry heat and stain resistance of coated furniture surfaces | |
| Office furniture safety | GB/T 3324 general technical requirements for wooden furniture |
Standardized tender description text
This product must meet the following technical requirements: 1. Formaldehyde emission: GB/T 39600E1 limit for wood-based panel components; 2. Physical and chemical surface resistance: GB/T 4893 series for wear, impact, dry heat and stain resistance of coated furniture surfaces; 3. Office furniture safety: GB/T 3324 general technical requirements for wooden furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
