PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total product net weight	238 kg
Distributed worktop load capacity	80 kg per workstation
Seating capacity	3 users
Recommended daily users per seat	1 assigned user
Panel edge impact rating target	24-hour static edge load 50 kg
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test
Recommended Procurement Warranty	Structure 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop construction	25 mm wood-composite core with walnut-color melamine face and sealed edge banding
Partition panel	Gray fabric-covered composite panel with horizontal translucent upper strip
Support structure	Gray powder-coated rectangular steel uprights and panel feet
Modesty panels	Dark gray laminate or powder-coated rigid panels below worktops
Storage pedestal	Walnut melamine cabinet body with gray side panel, metal handle and hinged door
Hardware	Steel drawer slides, hinge, adjustable glides and panel connecting clamps

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Workstation arrangement	Three L-shaped desks form a stepped linked row with shared low screens for side privacy.
Privacy screening	1200 mm-high panels separate neighboring users while retaining sight lines above the 300 mm translucent strip.
Cable management	Two 60 mm grommets per desk route laptop and monitor cables into the under-desk cable zone.
Storage configuration	The front workstation includes one shallow drawer and one door-enclosed cabinet for personal office storage.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan assigned office	Suits three-person clerical, administrative or finance teams needing low visual privacy and cable routing.
Back-office or call-center area	Compact linked footprint supports laptop or dual-monitor work with personal storage at the lead bay.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-3P-LSH-3600

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-3P-LSH-3600

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-3P-LSH-3600Open Export Tool

Quick Actions

Post an RFQ

Product Description

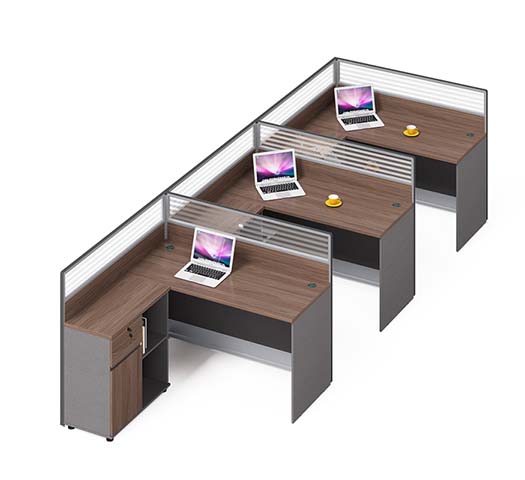

The Three-Person L-Shaped Cubicle Workstation with Low Partition Screens is an unbranded office workstation designed for teams that benefit from individual work zones without the enclosed feel of high-panel cubicles. Model WS-3P-LSH-3600 arranges three L-shaped desks in a stepped linked row, creating a compact footprint with shared low screens that provide side privacy while preserving an open-plan atmosphere. Visually, the workstation combines walnut-color woodgrain work surfaces and storage with gray metal support framing and fabric-covered partitions. The low panels separate neighboring users and include a horizontal translucent upper strip that allows sight lines and ambient light to pass through. Dark modesty panels below the worktops give the layout a tidy, finished appearance from surrounding circulation areas. The worktops use a wood-composite core with a melamine face and sealed edge banding, producing a finished top thickness of 50 mm. Support is provided by gray powder-coated rectangular steel uprights and panel feet, with an 80 mm main support section and adjustable glides for leveling. Steel hinges, drawer slides, and panel connecting clamps complete the primary hardware. The storage pedestal uses a walnut melamine cabinet body with a gray side panel, metal handle, shallow drawer, and hinged door, offering personal storage at the front or lead workstation. Practical functions are oriented to daily desk work. Each main seat provides 680 mm of knee clearance height and 900 mm of width, supporting assigned single-user seating rather than hot-desking use. Two cable openings on each desk route monitor and laptop cables into an under-desk cable zone served by a tray, helping reduce clutter across the work surface. The distributed worktop capacity is rated at 80 kg per workstation, while drawer slides are rated for 45 kg per pair. The layout suits laptop or dual-monitor tasks and is appropriate for clerical, administrative, finance, back-office, and call-center environments where three assigned users need limited visual privacy, cable organization, and nearby storage.

Three-Person L-Shaped Cubicle Workstation with Low Partition Screens Specifications
