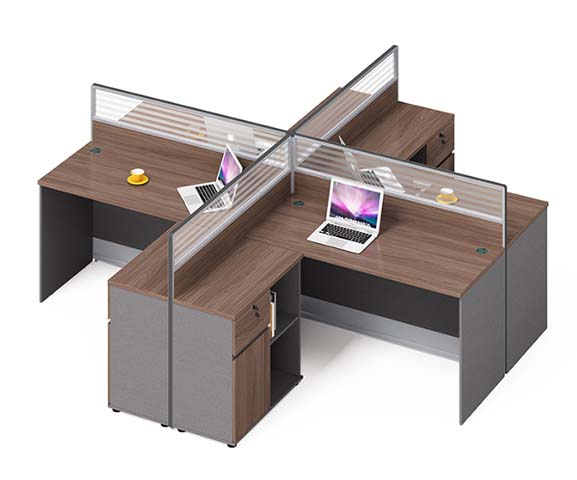

Product supplierFour-Person Cross-Shaped Panel Workstation with Integrated Storage Pedestals, 25 mm wood-grain melamine laminate chipboard panel with sealed impact edges
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Suggested occupancy | 4 users | |
|---|---|---|
| Distributed desktop static load | 80 kg per workstation | |
| Pedestal drawer load | 20 kg per drawer | |
| File drawer load | 30 kg | |
| Integrated pedestal count | 4 cabinets | |
| Cable grommet count | 4 ports | |
| System net weight reference | 220 kg | |
| Recommended floor load | 2.8 kPa occupied loading | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | 25 mm wood-grain melamine laminate chipboard panel with sealed impact edges | |
|---|---|---|
| Edge banding | 2 mm PVC edge banding on desk tops and cabinet fronts | |
| End modesty panels | 18 mm gray laminated board panels forming side privacy and support cheeks | |
| Lower divider panels | Fabric-covered or matte laminate panel on a steel or aluminum frame | |
| Upper divider screen | Translucent ribbed acrylic or tempered-glass insert with aluminum trim | |
| Support frame | Square steel tube or folded-steel underframe with powder-coated gray finish |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seating configuration | Four outward-facing users work on independent L-shaped surfaces separated by cross dividers | |
|---|---|---|
| Privacy division | Cross-mounted 1100 mm screens separate adjacent monitors while the 250 mm translucent strip preserves daylight | |
| Cable routing | A 60 mm grommet on each desktop feeds cables into the rear modesty-panel zone | |
| Storage arrangement | Each seat uses a floor-standing pedestal with drawers and a vertical file compartment beside the knee opening |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan offices | Suitable for four-person teams in 2.8 m square clusters needing separate screens, cable ports, and nearby file storage | |
|---|---|---|
| Administrative work areas | Appropriate for clerical, accounting, or procurement staff using laptops, documents, and small personal storage |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Office desk safety standard | EN 527:2011 safety, strength, and durability requirements for office desks | |
|---|---|---|
| Office desk dimensional standard | EN 527:2002 safety, strength, and durability test methods for office desks | |
| Formaldehyde panel emission | EN 13986:2004 wood-based panel performance requirements including E1 emission limits |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| Desk durability standard | ANSI/BIFMA X2021desk products safety, strength, and durability tests | |
|---|---|---|
| Panel system guidance | ANSI/BIFMA G2013ergonomic guideline for office workstation dimensions and clearance | |
| Sustainability declaration | ANSI/BIFMA E2019furniture sustainability criteria for materials, energy, and social responsibility |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Desk safety and structural acceptance | Recommended references: GB/T 3324 | |
|---|---|---|
| Formaldehyde emission acceptance | GB 18580emission limits for wood-based decorative panels | |
| Office furniture mechanical safety | GB/T 38607safety, stability, and strength requirements for office furniture |
Standardized tender description text
This product must meet the following technical requirements: 1. Desk safety and structural acceptance: Recommended references: GB/T 3324; 2. Formaldehyde emission acceptance: GB 18580emission limits for wood-based decorative panels; 3. Office furniture mechanical safety: GB/T 38607safety, stability, and strength requirements for office furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
