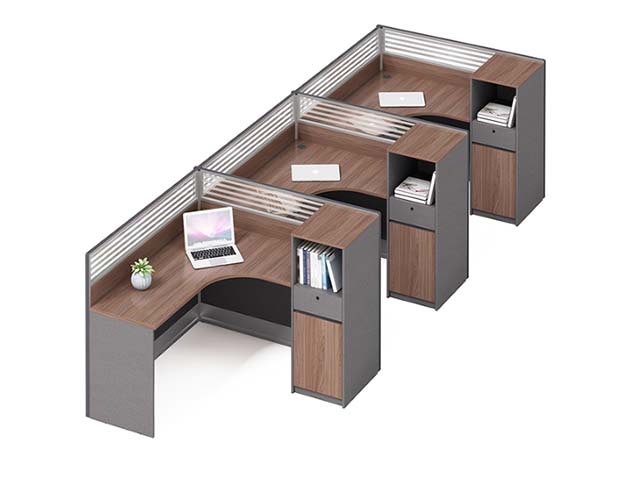

Three-Person L-Shaped Panel Workstation Cluster with Integrated Pedestals (model CW-L3-WAL-GRY) is listed under L-Shaped Office Desk. Dimensions: 4200 × 2400 × 1200 mm. Materials: 25 mm wood-composite board with walnut wood-grain laminate or melamine facing and sealed edges. Load capacity: 100 kg. Product Features: three-seat,cluster,L-shaped,workstation,partitioned,cubicle,integrated,storage,pedestal,walnut,and,charcoal,finish. This page consolidates 6 groups of specifications and ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | GENUOWA | Model | CW-L3-WAL-GRY |
| Finished Top Thickness | 50 mm | Effective Knee Clearance | 680 mm high and 900 mm wide per main seat |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
| Number of work seats | 3 seats | Per-workstation distributed load | 100 kg |
| Pedestal drawer load | 25 kg | Open shelf load | 20 kg per shelf |
| Lower cabinet shelf load | 30 kg | net weight | 270 kg total cluster |
| Partition lateral stability load | 50 kg per post-and-panel run | Suggested maximum occupancy load | 360 kg total |
| Warranty target | 5 years | Top Static Load Reference | 150 kg uniformly distributed |
| Work surface | 25 mm wood-composite board with walnut wood-grain laminate or melamine facing and sealed edges | Storage fronts | Walnut-look composite drawer and door fronts matched to the desktop |
| Cabinet carcass | Charcoal-gray composite-panel sides, tops, and internal dividers with hard-wearing laminate face | Partition panels | Charcoal fabric or textured laminate face over panel core with horizontal translucent insert strips |
| Glazing strips | Translucent rigid polymer or glass-reinforced strips in horizontal rows | Frame and hardware | Metal corner posts, panel connectors, drawer lock, hinges, slides, and adjustable levelers |
| Seating layout | Three L-shaped seats face outward from a stepped 120-degree row, giving each user a separate work surface, side pedestal, and privacy screen. | Storage configuration | Each seat has one upper open cubby, one central lockable drawer, and one lower door-enclosed compartment for files or personal equipment. |
| Privacy and daylight control | The 1200 mm partition uses an opaque lower band and horizontal translucent upper strips to reduce visual distraction while retaining light transfer. | Cable management | Each desktop includes a rear 60 mm cable port; cables can route downward toward the rear panel gap or pedestal side for power and data connections. |
| Carton count | 6 cartons | Reference Package Count | 1 set / 2 cartons |
| Reference Assembly Time | 40 minutes per set | Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | Reference Packaging Volume | 1 m³/set |
| Open-plan office use | Suitable for call centers, administrative teams, and shared processing areas where three staff need visual separation, personal storage, and compact footprints. | Recommended procurement configuration | Specify with three ergonomic task chairs, under-desk power modules, and monitor arms to complete the seated workstation layout. |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Number of work seats | 3 seats | |
|---|---|---|
| Per-workstation distributed load | 100 kg | |
| Pedestal drawer load | 25 kg | |
| Open shelf load | 20 kg per shelf | |
| Lower cabinet shelf load | 30 kg | |
| net weight | 270 kg total cluster | |
| Partition lateral stability load | 50 kg per post-and-panel run | |
| Suggested maximum occupancy load | 360 kg total | |
| Warranty target | 5 years | |
| Top Static Load Reference | 150 kg uniformly distributed |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | 25 mm wood-composite board with walnut wood-grain laminate or melamine facing and sealed edges | |
|---|---|---|
| Storage fronts | Walnut-look composite drawer and door fronts matched to the desktop | |
| Cabinet carcass | Charcoal-gray composite-panel sides, tops, and internal dividers with hard-wearing laminate face | |
| Partition panels | Charcoal fabric or textured laminate face over panel core with horizontal translucent insert strips | |
| Glazing strips | Translucent rigid polymer or glass-reinforced strips in horizontal rows | |
| Frame and hardware | Metal corner posts, panel connectors, drawer lock, hinges, slides, and adjustable levelers |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seating layout | Three L-shaped seats face outward from a stepped 120-degree row, giving each user a separate work surface, side pedestal, and privacy screen. | |
|---|---|---|
| Storage configuration | Each seat has one upper open cubby, one central lockable drawer, and one lower door-enclosed compartment for files or personal equipment. | |
| Privacy and daylight control | The 1200 mm partition uses an opaque lower band and horizontal translucent upper strips to reduce visual distraction while retaining light transfer. | |
| Cable management | Each desktop includes a rear 60 mm cable port; cables can route downward toward the rear panel gap or pedestal side for power and data connections. |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Carton count | 6 cartons | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office use | Suitable for call centers, administrative teams, and shared processing areas where three staff need visual separation, personal storage, and compact footprints. | |
|---|---|---|
| Recommended procurement configuration | Specify with three ergonomic task chairs, under-desk power modules, and monitor arms to complete the seated workstation layout. |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
