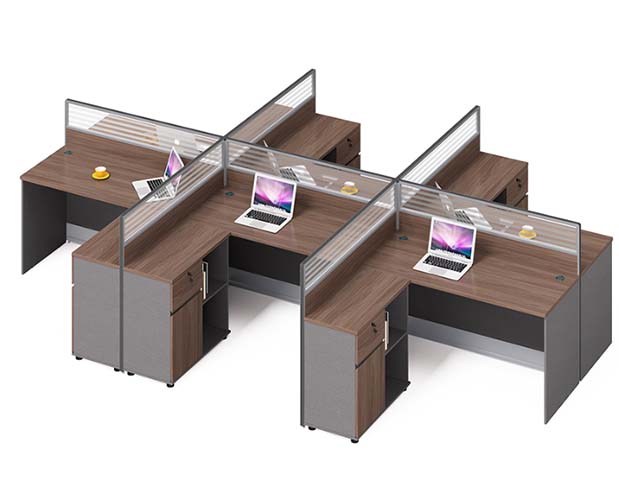

Four-Person Cross-Shaped Panel Workstation with L-Shaped Desks and Pedestals (model WS-CR4-L1400-WP) is listed under L-Shaped Office Desk. Dimensions: 2800 × 2800 × 1100 mm. Materials: 25 mm melamine-faced wood-composite board with walnut wood-grain finish and sealed edges. Load capacity: 80 kg per workstation. Product Features: Walnut,wood-grain,finish,gray,fabric,panels,four-seat,cluster,L-shaped,desks,pedestal,storage,glass-top,dividers. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | GENUOWA | Model | WS-CR4-L1400-WP |
| Finished Top Thickness | 50 mm | Effective Knee Clearance | 680 mm high and 900 mm wide per main seat |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
| Seating capacity | 4 users | Distributed static worktop load | 80 kg per workstation |
| Concentrated point load | 40 kg | Pedestal drawer load | 15 kg per drawer |
| Lower cabinet shelf/load capacity | 20 kg | Suggested user weight at seated position | 120 kg per user |
| Complete cluster net weight | 260 kg | Surface durability acceptance target | 20,000 abrasion cycles |
| Drawer slide durability target | 50,000 cycles | Top Static Load Reference | 150 kg uniformly distributed |
| Work surface | 25 mm melamine-faced wood-composite board with walnut wood-grain finish and sealed edges | Storage fronts | Walnut-grain composite drawer and door fronts with matching dark edge treatment |
| Privacy divider panels | Gray fabric-wrapped panels over composite or honeycomb substrate | Upper divider strip | Translucent acrylic or glass panel with horizontal decorative lines and aluminum edge frame |
| Support and modesty components | Black wood-composite modesty panels with gray or silver metal kick rails | Pedestal hardware | Vertical metal pull, lock insert, drawer slides, hinges, and small leveling glides |
| Workstation arrangement | Four L-shaped desks meet in a cross plan, giving each user a main task surface and a side return | Storage layout | Each position includes one shallow drawer and one lower lockable cabinet or CPU bay on the return |
| Cable management | A 60 mm round grommet on each desk allows monitor and power cables to route below the work surface | Privacy division | Fabric lower panels reduce direct sightlines while the upper transparent strip preserves light transfer across the cluster |
| Largest carton dimensions | 1450 x 680 x 120 mm | Reference Package Count | 1 set / 2 cartons |
| Reference Assembly Time | 40 minutes per set | Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | Reference Packaging Volume | 1 m³/set |
| Open-plan offices | Suited to four-person clerical, administration, or transaction teams where privacy panels and individual storage are required | Back-office and shared service centers | Appropriate for dense seating plans because the crossed footprint shares dividers and keeps each knee opening independent |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Seating capacity | 4 users | |
|---|---|---|
| Distributed static worktop load | 80 kg per workstation | |
| Concentrated point load | 40 kg | |
| Pedestal drawer load | 15 kg per drawer | |
| Lower cabinet shelf/load capacity | 20 kg | |
| Suggested user weight at seated position | 120 kg per user | |
| Complete cluster net weight | 260 kg | |
| Surface durability acceptance target | 20,000 abrasion cycles | |
| Drawer slide durability target | 50,000 cycles | |
| Top Static Load Reference | 150 kg uniformly distributed |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | 25 mm melamine-faced wood-composite board with walnut wood-grain finish and sealed edges | |
|---|---|---|
| Storage fronts | Walnut-grain composite drawer and door fronts with matching dark edge treatment | |
| Privacy divider panels | Gray fabric-wrapped panels over composite or honeycomb substrate | |
| Upper divider strip | Translucent acrylic or glass panel with horizontal decorative lines and aluminum edge frame | |
| Support and modesty components | Black wood-composite modesty panels with gray or silver metal kick rails | |
| Pedestal hardware | Vertical metal pull, lock insert, drawer slides, hinges, and small leveling glides |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Workstation arrangement | Four L-shaped desks meet in a cross plan, giving each user a main task surface and a side return | |
|---|---|---|
| Storage layout | Each position includes one shallow drawer and one lower lockable cabinet or CPU bay on the return | |
| Cable management | A 60 mm round grommet on each desk allows monitor and power cables to route below the work surface | |
| Privacy division | Fabric lower panels reduce direct sightlines while the upper transparent strip preserves light transfer across the cluster |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Largest carton dimensions | 1450 x 680 x 120 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan offices | Suited to four-person clerical, administration, or transaction teams where privacy panels and individual storage are required | |
|---|---|---|
| Back-office and shared service centers | Appropriate for dense seating plans because the crossed footprint shares dividers and keeps each knee opening independent |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Applicable standards and test results require confirmation | |
|---|---|---|
| EN 527-2:2011 | Applies to dimensional safety, stability, and strength test methods for office work surfaces | |
| EN 1022:2018 | Applies to stability testing where seating-height work surfaces are subjected to office loading | |
| EN 15372:2016 | Applies to durability, strength, and stability requirements for commercial storage furniture such as pedestals |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Suitable as the desk products test reference for strength, durability, and stability of office work surfaces | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Suitable for evaluating storage units, drawers, doors, locks, and slides in the pedestals | |
| ANSI/BIFMA X5.1-2017 | Useful for chair-side load and compatibility planning, although this product is a workstation rather than a chair |
Standards applicable to China-market projects
| GB/T 3324-2017 | Applies to general wooden furniture dimensional, structural, and workmanship quality checks for the panel components | |
|---|---|---|
| GB/T 3325-2017 | Applies to metal furniture structural requirements for steel supports, rails, and hardware | |
| GB 18580-2024 | Applies to formaldehyde emission limits for wood-based panels used in desks and cabinets | |
| GB/T 10357.5-2011 | Applies to furniture surface physicochemical testing, including resistance properties for desk surfaces |
This product must meet the following technical requirements: 1. GB/T 3324-2017: Applies to general wooden furniture dimensional, structural, and workmanship quality checks for the panel components; 2. GB/T 3325-2017: Applies to metal furniture structural requirements for steel supports, rails, and hardware; 3. GB 18580-2024: Applies to formaldehyde emission limits for wood-based panels used in desks and cabinets; 4. GB/T 10357.5-2011: Applies to furniture surface physicochemical testing, including resistance properties for desk surfaces; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
