PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Number of seated users	3 users
Distributed top static load	150 kg total
Per-worktop point load	50 kg
Central cabinet top load	40 kg
Drawer static load	15 kg per drawer
Adjustable shelf load	20 kg per shelf
Net weight reference	260 kg per cluster
Color options	2 colors
Warranty reference	5 years
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop and storage surfaces	25 mm melamine-faced particleboard with matching walnut grain edge banding
Panel divider body	450 mm high gray fabric-wrapped acoustical panel over composite core
Upper divider screen	Silver-gray aluminum frame with horizontal translucent louver strips
Central cabinet doors and drawers	Walnut-grain melamine panels with integrated recessed pulls and key locks
Storage interior and shelf	Dark gray melamine-faced board with one open cubby shelf
Support and base hardware	Black steel leveling feet, cabinet base supports, and partition joining posts

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Workstation arrangement	Three L-oriented work positions share one continuous 3600 x 2800 mm cluster with separate knee openings
Privacy and sight separation	1100 mm high half-height dividers separate users while retaining seated visibility through the louvered upper zone
Central filing and storage	Two lockable upper drawers and two lower cabinet doors provide shared or assigned storage between workstations
Open reference storage	A 350 mm open shelf cubby accepts binders and books next to the locked cabinet zone

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Suitable for three staff in administrative, sales, or finance teams because each seat has independent knee space and a shared storage core
Project or clerical workspace	Recommended where laptops, documents, binders, and personal lockable storage must be grouped without full-height cubicle walls

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-3P-L-3600

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-3P-L-3600

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-3P-L-3600Open Export Tool

Quick Actions

Post an RFQ

Product Description

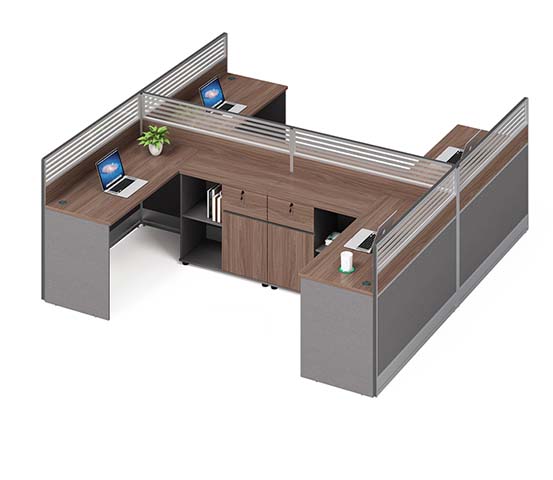

The Three-Person L-Shaped Panel Workstation with Central Storage, model WS-3P-L-3600, is an unbranded office workstation cluster designed to organize three seated users around one shared storage core. Its L-oriented layout forms a continuous 3600 x 2800 mm workspace with three separate knee openings, giving each position a defined place while keeping the group connected in an open-plan setting. Walnut wood-grain melamine surfaces establish a warm commercial office appearance, while gray fabric panels and silver-gray aluminum divider frames add a structured, neutral contrast. Half-height dividers provide personal and sight separation without creating full-height cubicle enclosures. The lower divider section uses a 450 mm high gray fabric-wrapped acoustical panel over a composite core, and the upper screen combines an aluminum frame with horizontal translucent louver strips. The complete divider height is 1100 mm, preserving seated visibility through the upper zone. Construction uses 25 mm melamine-faced particleboard for worktops and storage surfaces, finished with matching walnut grain edge banding. Storage fronts use walnut-grain melamine panels with integrated recessed pulls and key locks, while interiors and shelving use dark gray melamine-faced board. Aluminum divider rails, steel support frames, black steel leveling feet, cabinet base supports, and partition joining posts complete the supporting structure. The finished top is 50 mm thick, each main seat provides 680 mm high and 900 mm wide knee clearance, and the main support section is 80 mm with a 2 mm metal wall. Practical features include two lockable upper drawers and two lower lockable cabinet doors in the central storage unit, supporting shared or assigned filing. A 350 mm open shelf cubby beside the locked storage zone provides reference space for binders and books. Each position includes an 80 mm diameter cable opening, and the cable tray has a 120 mm depth to help route power and data cabling. Rated capacities include a 150 kg distributed static load across the top, a 50 kg point load per worktop, a 40 kg central cabinet top load, 15 kg per drawer, and 20 kg per adjustable shelf. The cluster is suited to administrative, sales, finance, project, and clerical teams using laptops, documents, binders, and personal lockable storage in a collaborative office area. It is also appropriate for residential work suites that need multiple desks and integrated storage in a compact footprint. Procurement planning should account for a 260 kg net cluster weight, floor-protection requirements, leveling-floor installation, and coordination of cable access. The reference assembly time is 40 minutes per set. Packaging details vary in the supplied information between a set packed in two cartons and a four-carton gross-weight reference of 180 kg, with a 1 m³ packaging volume; buyers should confirm carton count and delivery configuration before ordering.
