PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Seating capacity	4 users
Distributed desktop load	100 kg total per work surface
Pedestal drawer load	20 kg per drawer
Mobile pedestal mobile load	45 kg
Partition lateral load	15 kg at 1000 mm height
System net weight	168 kg
Drawer slide durability	40000 open-close cycles
Caster rolling durability	20000 travel cycles
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop construction	25 mm particleboard core with light oak melamine surface and 2 mm impact-resistant edge banding
Partition lower panels	Light oak laminate panels with dark framed perimeter and silver horizontal trim
Upper privacy panels	Ribbed translucent or fabric-faced inserts in a dark metal frame
Support framework	Powder-coated steel under-top rail and black vertical extrusion frame
Mobile pedestals	Light oak steel-clad or board-constructed two-drawer cabinets with black casters and lock cylinders
Hardware and cable parts	60 mm plastic cable grommet, cam-and-post panel connectors, drawer lock, and twin-wheel casters

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Workstation division	Cross-shaped mid-height screens divide one shared frame into four independently oriented seated work positions
Under-desk storage	Two mobile two-drawer pedestals provide personal storage and can be pulled clear for legroom or cleaning
Cable management	A 60 mm rear desktop grommet at each position routes monitor and power cables toward the central under-desk zone
Modular extension	Post-and-panel framing allows additional 1200 mm workstation modules to be connected in straight or clustered runs

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office layout	Suitable for four-person administrative or processing teams where mid-height screens reduce visual distraction while retaining supervisor visibility
Procurement configuration	Recommended for call centers, shared service centers, and dense office planning with paired back-to-back seating and personal mobile storage

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office desk safety and strength	EN 527and EN 527
Office storage safety	EN 14073and EN 14073
Office seating-area screen reaction to fire	EN 1021and EN 1021
Indoor furniture edge safety	EN 12521

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Desk and tabletops	ANSI/BIFMA X5.5
Storage cabinets	ANSI/BIFMA X5.9
Lounge and office screen materials	ANSI/BIFMA E3

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Desktop and panel board safety	GB 18580
Furniture mechanical safety	GB/T 3324
Office furniture structural testing	GB/T 10357

Standardized tender description text

This product must meet the following technical requirements:
1. Desktop and panel board safety: GB 18580;
2. Furniture mechanical safety: GB/T 3324;
3. Office furniture structural testing: GB/T 10357;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-CR4-2400-1200-P700

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-CR4-2400-1200-P700

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-CR4-2400-1200-P700Open Export Tool

Quick Actions

Post an RFQ

Product Description

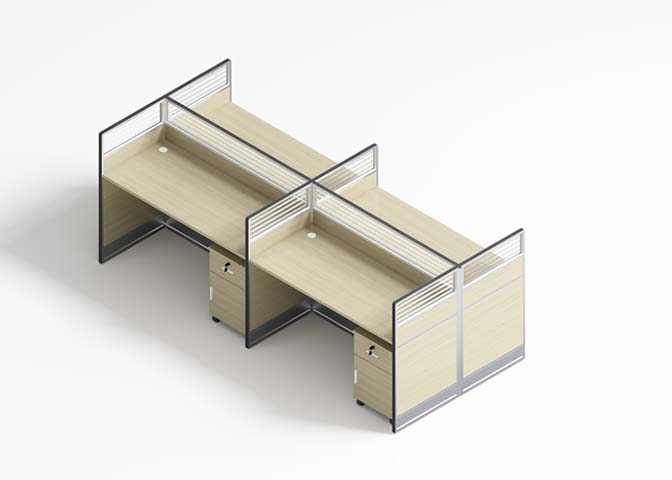

The Four-Person Back-to-Back Panel Workstation with Mobile Pedestals is an unbranded office cubicle desk system, model WS-CR2400-1200-P700, designed for shared workspaces that require compact seating, visual separation, and personal storage within one coordinated frame. Its cross-shaped, mid-height screen arrangement divides the shared structure into four independently oriented seating positions, creating a balanced back-to-back layout that supports focus while preserving an open-plan feel. The workstation has a light oak-grain aesthetic across the work surfaces and panel elements, contrasted by dark metal or aluminum-framed partitions, silver horizontal trim, and black support framing. Upper privacy panels use ribbed translucent or fabric-faced inserts, while lower screens are available in fabric or laminate finishes. Each work surface is built with a particleboard core, light oak melamine surface, impact-resistant edge banding, and a finished top thickness of 50 mm. The understructure uses powder-coated steel support rails and black vertical extrusion framing, with cam-and-post connectors for the panel system. Each main seat provides 680 mm of knee clearance height and 900 mm of width, supported by an 80 mm main support section with 2 mm metal wall thickness. The desk is rated for a distributed desktop load of 100 kg total per work surface. Practical features include two mobile two-drawer pedestals finished to coordinate with the light oak workstation. The steel-clad or board-constructed cabinets move on black twin-wheel casters and include lock cylinders, allowing users to pull storage clear for legroom, repositioning, or cleaning. Each drawer supports a 20 kg load, and each mobile pedestal has a 45 kg mobile load rating, with drawer slides rated for 40,000 open-close cycles. Cable management is integrated at every position through a 60 mm rear desktop grommet, routing monitor and power cabling toward the central under-desk area and its cable tray. The partition system is rated for a 15 kg lateral load at 1000 mm height. This configuration is well suited to administrative and processing teams, call centers, shared service centers, and dense office planning where mid-height screens reduce visual distraction without eliminating supervisor visibility. It can also serve residential workspace or study areas where four defined stations are required. Post-and-panel construction allows additional 1200 mm modules to connect in straight or clustered runs, making the system useful for phased expansion. Procurement planning should account for four users per set, a 168 kg net system weight, assembly time of 40 minutes per set, and packaged logistics presented with a 1 m³ reference volume. Buyers should also confirm screen insert preference, pedestal construction, caster suitability for the floor finish, and whether future modular runs will use straight or clustered connections.
