PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Distributed desktop static load	100 kg per workstation
Central cabinet total static load	60 kg
Drawer slide load per drawer	25 kg
Adjustable shelf load	20 kg per shelf
Suggested user capacity	2 people
Product net weight	165 kg
Floor bearing pressure	0.21 kPa
Panel fastener service target	50,000 operating cycles
Warranty target	5 years
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm wood-grain melamine-laminated particleboard with sealed impact edges
Central cabinet body	18 mm laminated panel construction with matching wood-grain doors and drawer fronts
Lower privacy panels	Gray upholstered-look or matte laminated panel with rigid framing
Upper divider section	Translucent slatted strips in a dark aluminum or powder-coated metal frame
Structural frame	Aluminum or steel extruded posts and rails with dark powder-coated finish
Hardware	Two key locks, drawer slides, cabinet hinges, adjustable glides, and cable grommets

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Two-user L-shaped work layout	Two diagonal seating positions use separate outer work surfaces while sharing the central storage core
Central storage organization	Two lockable drawers, two lower cabinet doors, and one open shelf bay divide personal and shared storage
Cable management	One round grommet is visible on each work surface for laptop or monitor power routing
Visual privacy system	Solid lower panels block knee-level views while slatted upper screens reduce seated sight lines without fully sealing airflow

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Largest carton dimensions	1500 x 750 x 120 mm
Total packed volume	1.35 CBM
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Suited to two-person departmental clusters where users need privacy screening and immediate shared file storage
Procurement and administrative work areas	Supports laptop, document, and reference-material tasks with separate knee bays and central cabinet access

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-L2-CAB-Slat

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-L2-CAB-Slat

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-L2-CAB-SlatOpen Export Tool

Quick Actions

Post an RFQ

Product Description

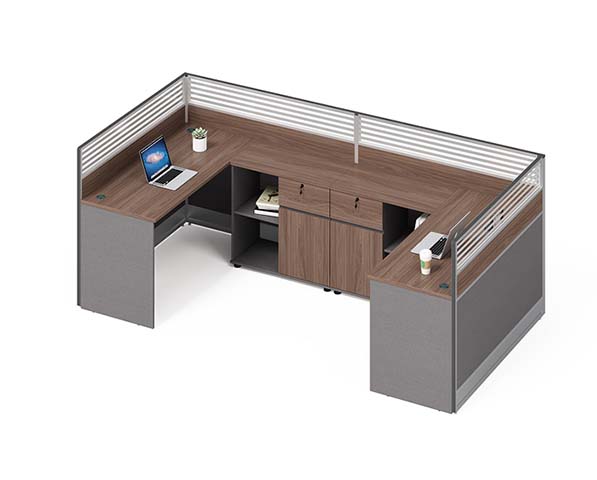

The Two-Person L-Shaped Panel Workstation with Central Storage, model WS-L2-CAB-Slat, offers a structured two-user layout with separate outer work surfaces arranged around a shared central storage core. Its diagonal seating positions help define individual work zones while keeping common files and supplies within easy reach. The workstation combines wood-grain laminate surfaces with gray panel partitions, dark metal framing, and translucent slatted divider inserts, giving it a balanced commercial office appearance that is warm yet orderly. Solid lower privacy panels conceal knee-level views, while the upper slatted screens reduce seated sight lines without fully closing the space or blocking airflow. Construction uses a 25 mm wood-grain melamine-laminated particleboard work surface with sealed impact edges and a finished top thickness of 50 mm. The central cabinet is built from 18 mm laminated panels with matching wood-grain doors and drawer fronts. Lower privacy panels are available in a gray upholstered-look or matte laminated finish with rigid framing, and the upper divider uses translucent slatted strips set in a dark aluminum or powder-coated metal frame. Structural posts and rails are aluminum or steel extrusions with a dark powder-coated finish, supported by metal hardware. Each main seat provides an effective knee clearance of 680 mm in height and 900 mm in width, with an 80 mm support section and a 2 mm metal wall. The central storage core includes two lockable drawers, two lower cabinet doors, and one open shelf bay, allowing users to separate personal, secured, and shared items. Two key locks are included, along with drawer slides, cabinet hinges, adjustable glides, and cable grommets. Each work surface has one round, 80 mm cable opening for monitor or laptop power routing, paired with a cable tray depth of 120 mm. Rated capacities include 100 kg distributed static load per workstation, 60 kg for the central cabinet, 25 kg per drawer slide, and 20 kg per adjustable shelf. This panel-screen workstation is well suited to open-plan offices, two-person departmental clusters, procurement areas, and administrative workspaces that require privacy screening alongside immediate shared storage. It supports laptop, document, and reference-material tasks through distinct knee bays and convenient cabinet access. Procurement teams should plan for a product net weight of 165 kg, floor bearing pressure of 0.21 kPa, and assembly coordination on site. Packaging references include two or four cartons depending on the logistics record used, with a maximum packed gross weight of 180 kg per set and packed volume of 1.35 CBM; the main top carton and return or pedestal should be checked separately before installation.
