PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Product net weight	145 kg
Distributed work-surface load	80 kg per user position
Central cabinet top load	40 kg
Drawer load capacity	15 kg per drawer
Lower storage shelf load	20 kg per compartment
Privacy screen static load	5 kg per linear meter
Recommended occupancy	2 users
Suggested warranty period	5 years
Available finish count	2 visible finish groups: walnut grain and charcoal grey
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surfaces	25 mm wood-grain high-pressure laminate or melamine board with sealed impact-resistant edges
Vertical end panels and modesty panels	25 mm charcoal grey laminate board with square edge banding
Central cabinet doors and drawer fronts	Wood-grain laminate fronts paired with charcoal drawer faces and grey plinth
Privacy screen frame	Dark powder-coated aluminum or steel perimeter frame with horizontal translucent slats
Hardware and supports	Steel cam connectors, hinges, drawer slides, locks and adjustable cabinet glides
Edge and base protection	PVC edge banding on board components with recessed kickplate trim

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Two-user work layout	Two separate 1400 mm work zones share a continuous 2800 mm top with a center privacy divider
Privacy screening	A 350 mm high slatted screen reduces visual distraction while retaining partial light transmission
Central personal storage	Each user has one upper lockable drawer and access to a lower door compartment for bags and files
Cable routing	Four 60 mm grommets allow monitor, power and data cables to pass below the work surface

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Largest carton size	1450 x 760 x 120 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Suitable for two staff in general administration, finance or customer-service areas where individual cable access and privacy screening are required
Procurement configuration	Use as a repeatable cluster unit in rows, with optional under-desk mobile pedestals when central storage is insufficient

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1 applicability	EN 527office desks safety, strength and durability requirements
EN 527-2 applicability	EN 527 mechanical safety, strength and durability test methods
EN 16139 applicability	EN 16139 strength, durability and safety for non-domestic seating-area furniture

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324 applicability	GB/T 3324 wooden furniture general technical requirements
GB/T 3325 applicability	GB/T 3325 metal furniture general technical requirements
GB/T 10357.5 applicability	GB/T 10357.5 furniture mechanical surface durability tests
GB 18580 applicability	GB 18580 formaldehyde emission for wood-based panels

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324 applicability: GB/T 3324 wooden furniture general technical requirements;
2. GB/T 3325 applicability: GB/T 3325 metal furniture general technical requirements;
3. GB/T 10357.5 applicability: GB/T 10357.5 furniture mechanical surface durability tests;
4. GB 18580 applicability: GB 18580 formaldehyde emission for wood-based panels;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-2P-CAB-SCR-2800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-2P-CAB-SCR-2800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-2P-CAB-SCR-2800Open Export Tool

Quick Actions

Post an RFQ

Product Description

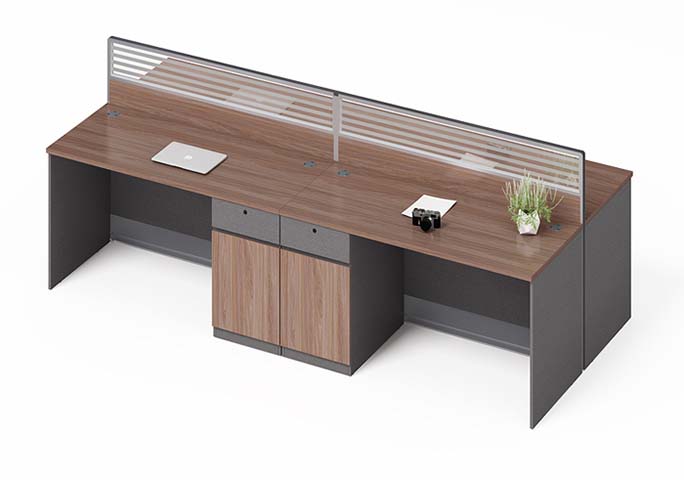

The Two-Person Panel Workstation with Central Storage and Privacy Screen is a structured office workstation designed for two users in a single coordinated layout. Its continuous wood-grain laminate work surface forms two distinct 1400 mm work zones across a 2800 mm top, with a center divider helping to define each person's space. Charcoal grey vertical end panels and modesty panels give the workstation a framed, orderly appearance, while the central melamine storage cabinet creates a practical visual and functional boundary between users. Above the center, a dark metal-framed slatted privacy screen extends 350 mm high, reducing visual distraction without fully blocking light through its horizontal translucent slats. Construction uses 25 mm wood-grain high-pressure laminate or melamine board for work surfaces, with sealed impact-resistant edges and PVC edge banding on board components. The charcoal vertical panels use 25 mm laminate board with square edge banding, and the support section features an 80 mm main section with a 2 mm metal wall. Steel cam connectors, hinges, drawer slides, locks and adjustable cabinet glides support the cabinet and moving parts. The finished top is 50 mm thick, and each main seat position provides 680 mm of knee clearance height and 900 mm of width. Recessed kickplate trim and a grey plinth complete the base detailing. Each user receives one upper lockable drawer and access to a lower door compartment suitable for bags and files. Distributed work-surface capacity is rated at 80 kg per user position, while the central cabinet top supports 40 kg. Drawer capacity is 15 kg per drawer, lower shelf capacity is 20 kg per compartment, and the privacy screen is rated for 5 kg per linear meter. Four 60 mm cable grommets route monitor, power and data cabling below the surface, supported by an 80 mm cable opening and a cable tray with 120 mm depth. This model is well suited to open-plan administration, finance and customer-service environments where two staff need defined work zones, personal storage and reduced visual interruption. It can be repeated in rows as a standardized cluster unit. Buyers planning dense installations should review circulation space, power and data locations, and whether optional under-desk mobile pedestals are needed when central storage is not sufficient. The unbranded workstation ships as a set, with reference assembly time of 40 minutes and a net weight of 145 kg; logistics planning should allow for multi-carton handling and suitable access on site.

Two-Person Panel Workstation with Central Storage and Privacy Screen Specifications
