PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Work surface distributed static load	80 kg
Pedestal drawer load	15 kg
Lower pedestal storage load	25 kg
Pedestal mobile load	40 kg
Seating capacity	1 person
Workstation net weight range	52 kg
Pedestal unit weight	22 kg
Partition lateral stability load	20 kg per screen edge
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm wood-based panel with walnut grain laminate or melamine facing and sealed edge band
Pedestal carcass	18 mm walnut-look wood-based panels with matching front and black recessed plinth
Partition frame	Anodized silver aluminum extrusions with vertical corner posts and horizontal rails
Upper privacy screen	Translucent ribbed polymer or glass-filled panel set within the aluminum frame
Lower privacy panel	Dark gray fabric-faced tackable panel over composite core
Under-desk modesty and support	Gray powder-coated steel rail and dark fabric/board modesty panel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Privacy screening	Three-sided 1200 mm high partition encloses left, rear and right sides while preserving overhead light transmission
Pedestal storage	Right-side mobile pedestal provides one 160 mm upper drawer and one 420 mm lower lockable storage compartment
Mobility and placement	Pedestal rolls on four 50 mm swivel casters and can be nested under the right work surface
Cable routing	Single 60 mm grommet allows monitor and power leads to pass from desktop to below-desk routing

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Suitable for one-person seated work where 1200 mm side and rear screens reduce visual distraction without fully blocking daylight

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-PART-1400-1P-MP

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-PART-1400-1P-MP

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-PART-1400-1P-MPOpen Export Tool

Quick Actions

Post an RFQ

Product Description

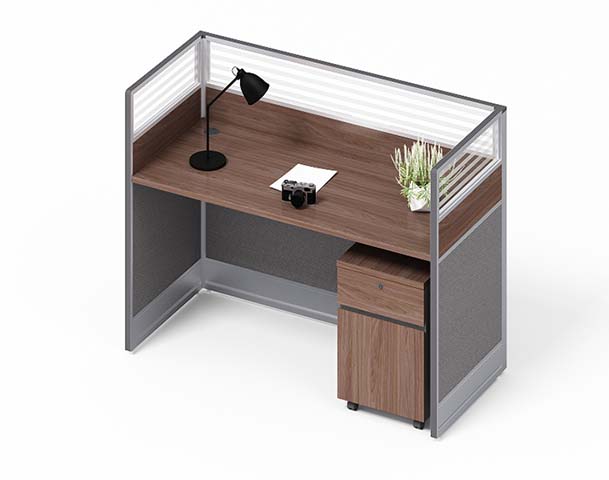

The Single-Seat Rectangular Office Workstation with Three-Sided Partition and Mobile Pedestal is a panel-based one-person workstation designed for focused work in open-plan settings. Its rectangular desk is enclosed on the left, rear, and right by a 1200 mm high partition, creating a defined personal zone while allowing overhead light to pass through the translucent upper screen. The silver aluminum frame gives the divider a structured, commercial appearance, while the walnut-look work surface and pedestal bring a warm wood-tone finish to the overall layout. Visual privacy is layered through contrasting materials. The upper section uses a translucent ribbed polymer or glass-filled panel set within anodized silver aluminum extrusions, vertical corner posts, and horizontal rails. The lower section uses a dark gray fabric-faced tackable panel over a composite core, adding texture and a practical pinning surface. Beneath the desk, a gray powder-coated steel rail provides support, paired with a dark fabric or board modesty panel. The work surface is built from a 25 mm wood-based panel with walnut grain laminate or melamine facing and sealed edge banding, with a finished top thickness of 50 mm. The matching mobile pedestal is constructed from 18 mm walnut-look wood-based panels, with a black recessed plinth. It is positioned on the right and can roll on four 50 mm swivel casters or nest beneath the right work surface. Storage includes a 160 mm upper drawer and a 420 mm lower lockable compartment. Functional details support daily office use. A 60 mm desktop grommet allows monitor and power leads to pass below the desk, where cable routing is supported by an 80 mm opening and a tray with 120 mm depth. The main seating position provides 680 mm high and 900 mm wide knee clearance. The support section uses an 80 mm main section with 2 mm metal wall. Rated capacities include 80 kg distributed static load on the work surface, 15 kg for the pedestal drawer, 25 kg for lower pedestal storage, and 40 kg mobile load for the pedestal. This workstation is best suited to open-plan offices, project areas, hot-desking neighborhoods, or residential workrooms that require a compact, self-contained seated workspace. The three-sided screen reduces visual distraction without fully blocking daylight, making it appropriate for environments where concentration and ambient light are both important. Procurement teams should plan for assembly, placement, and storage requirements rather than treating the unit as a simple desk. The product is unbranded, model WS-PART-1400P-MP, and supplied as a set. Reference packaging information indicates two cartons, while alternate logistics data records four cartons and 180 kg packaged gross weight; shipment configuration should therefore be confirmed at order stage. The workstation has a net weight of 52 kg, the pedestal weighs 22 kg, and reference assembly time is 40 minutes per set. Buyers should also verify pedestal clearance, cable routing access, floor protection for casters, and whether the lockable compartment meets the intended security needs.

Single-Seat Rectangular Office Workstation with Three-Sided Partition and Mobile Pedestal Specifications
