PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Product net weight	145 kg
Worktop distributed load	80 kg
Single open-shelf load	15 kg
Lower cabinet shelf load	25 kg
Transaction counter load	60 kg
Recommended occupant capacity	1 receptionist
Visitor service capacity	2 standing visitors
Panel board thickness	25 mm worktop and 18 mm cabinet panels
Edge impact protection	2 mm PVC edge banding
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktops and display surfaces	Walnut-look melamine-faced particleboard with sealed edge banding
Cabinet and modesty panels	Graphite-grey melamine-faced panels with matching impact-resistant edges
Screen frames	Silver powder-coated aluminium or steel rectangular framing
Privacy infill panels	Horizontal ribbed laminate or metal strip panels in silver and white tones
Internal shelving and dividers	Fixed melamine panel shelves with vertical partitions forming open cubbies
Lower storage doors	Vertical-grain walnut-look melamine doors within the graphite cabinet base

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Dual-height reception layout	1100 mm visitor counter fronts a 750 mm internal work surface, separating public interaction from seated tasks
Integrated L-shaped workstation	Side return supports a laptop or monitor while the long counter handles visitor sign-in and display storage
Open display and filing storage	Four visible open cubbies provide upright brochure display, with lower doors concealing files and reception supplies
Privacy and cable management	Raised ribbed screens shield the internal work area, while a visible circular grommet on the return allows desk cable exit

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Total gross weight	160 kg
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Corporate lobby reception	Suits office entrances requiring one seated receptionist, visitor sign-in, brochure display and concealed daily storage
Hotel or clinic welcome area	Provides standing guest interaction at the high front counter and a shielded laptop workstation for registration and appointments

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office worktables safety and dimensional requirements, relevant to the internal 750 mm seated work surface
EN 15372:2015	Durability, strength and stability requirements for non-domestic storage furniture, applicable to shelves and cabinet bases
EN 16139:2013	Strength, durability and stability for non-domestic seating does not apply directly; use EN 15372 for this reception storage desk

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.5 Desk and Table Products

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2024	General technical requirements for wooden furniture, suitable for panel dimensions, edge quality, stability and workmanship inspection
GB/T 3325-2017	Metal furniture technical requirements applicable to the metal screen frame and structural hardware
GB 18580-2017	Formaldehyde emission limit for interior-decorative wood-based panels, relevant to melamine board procurement
GB/T 10357.5-2011	Furniture mechanical surface test for paint and laminated film abrasion, suitable for worktop durability acceptance

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2024: General technical requirements for wooden furniture, suitable for panel dimensions, edge quality, stability and workmanship inspection;
2. GB/T 3325-2017: Metal furniture technical requirements applicable to the metal screen frame and structural hardware;
3. GB 18580-2017: Formaldehyde emission limit for interior-decorative wood-based panels, relevant to melamine board procurement;
4. GB/T 10357.5-2011: Furniture mechanical surface test for paint and laminated film abrasion, suitable for worktop durability acceptance;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · RC-LSH-2400-1800-WAL-GRY

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · RC-LSH-2400-1800-WAL-GRY

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · RC-LSH-2400-1800-WAL-GRYOpen Export Tool

Quick Actions

Post an RFQ

Product Description

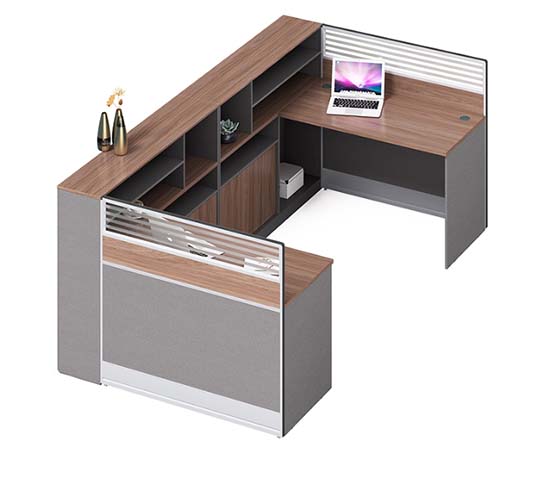

This L-shaped reception desk pairs a walnut-look woodgrain finish with graphite-grey cabinet panels for a balanced contemporary lobby appearance. The long transaction counter creates the public-facing side, while a side return forms an integrated workstation. Raised privacy screens run above the work zone, using silver rectangular metal framing with horizontal ribbed infill panels in silver and white tones. The dual-height layout distinguishes visitor interaction from seated tasks: the high front counter serves standing guests, and the lower internal surface supports the receptionist. Open cubbies in the counter provide visible brochure display, and the lower graphite cabinet base conceals files and daily supplies behind vertical-grain walnut-look doors. Fixed melamine shelves and internal dividers organize the open compartments, helping the front elevation remain orderly without sacrificing accessible display space. The worktops, shelves, and display surfaces use walnut-look melamine-faced particleboard with sealed edge banding. Cabinet and modesty panels use graphite-grey melamine-faced panels with matching impact-resistant edges, while screen frames are silver powder-coated aluminium or steel. Laminate end panels complete the construction. The finished top is 50 mm thick, and the main support section uses an 80 mm metal section with a 2 mm wall. Each main seating position provides 680 mm high and 900 mm wide knee clearance. A visible circular grommet on the return accommodates cable exit, paired with a cable tray for managing power and data leads. Functionally, the layout is designed for one receptionist and up to two standing visitors at the service counter. The return supports a laptop or monitor, while the longer counter handles sign-in, guest interaction, and display storage. Rated distributed loads are 80 kg on the worktop, 60 kg on the transaction counter, 25 kg on a lower cabinet shelf, and 15 kg on a single open shelf. These capacities should be matched to intended equipment, brochure quantities, and countertop displays. The desk is well suited to corporate office entrances that need a polished welcome point, brochure presentation, concealed storage, and a semi-private seated workstation. It also fits hotel or clinic welcome areas where guests stand for check-in or appointments while staff use a shielded screen for registration tasks. Procurement planning should account for a substantial reception unit with a net weight of 145 kg. Packaging details vary in the supplied records, including references to 2 cartons and 4 cartons, so delivery and receiving requirements should be confirmed before order placement. Assembly is referenced at 40 minutes per set, but installation access, floor protection, and two-person handling should be planned. Buyers should also verify the supplied model configuration, screen material choice, storage layout, and cable provisions against the intended lobby space and reception workflow.

L-Shaped Reception Desk with Storage Display and Privacy Screens Specifications
