PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Seating capacity	2 persons
Distributed desktop static load	80 kg per workstation
Storage cabinet shelf load	20 kg per shelf
Pedestal drawer load	15 kg per drawer
Total workstation structural weight reference	125 kg
Workstation count in one displayed cluster	2 work positions
Desktop usable area per person	1.15 m2
Recommended room footprint	4.8 m2 including chair circulation
Hardware cyclic service target	50,000 drawer and door operations
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm wood-grain high-pressure laminate board with impact-sealed edge banding
Partition panels	Gray fabric-wrapped panel with rigid core and framed perimeter trim
Upper privacy band	Ribbed translucent acrylic or polycarbonate louver insert in aluminum-look frame
Support panels	Gray laminate fixed side panels forming end supports and modesty returns
Under-desk modesty panel	Black laminate panel with gray lower rail
Storage cabinet	Gray and wood-grain laminate body with black recessed door/drawer face

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Workstation layout	Two angular L-shaped stations face outward around a shared central partition junction
Privacy separation	Fabric lower panels and slatted upper screens divide adjacent users without fully blocking light
Cable management	Each station uses 60 mm desk grommets to route laptop and monitor cables below the work surface
Storage integration	One low cabinet combines a door compartment, drawer face, and vertical pull handle under the front worktop

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office use	Suitable for two-person clusters in administrative offices, with 750 mm task height and separated screens
Call center or shared workspace use	Supports dense but partitioned seating where cable grommets and under-desk storage are required

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-2P-120-L-2800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-2P-120-L-2800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-2P-120-L-2800Open Export Tool

Quick Actions

Post an RFQ

Product Description

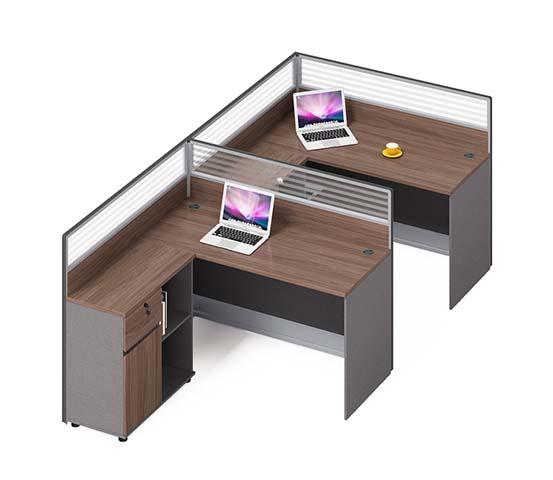

The Two-Person 120-Degree L-Shaped Panel Workstation with Low Storage Cabinet is an angular office workstation configured for two users. Model WS-2P-120-L-2800 is supplied unbranded and presents two outward-facing L-shaped stations arranged around a shared central partition junction. This layout gives each person a defined work zone while keeping the cluster compact and organized. Visually, the workstation combines wood-grain laminate worktops with gray fabric partition panels, an aluminum-look frame, black modesty panels, and a gray laminate storage cabinet. The lower panels are fabric-wrapped around a rigid core with framed perimeter trim, while the upper privacy band uses a ribbed translucent acrylic or polycarbonate louver insert. These slatted upper screens separate adjacent users without fully blocking light, supporting a balance of privacy and openness. Gray laminate fixed side panels form the end supports and modesty returns, and a black laminate under-desk panel with a gray lower rail completes the partitioned appearance. The work surface uses 25 mm wood-grain high-pressure laminate board with impact-sealed edge banding and has a finished top thickness of 50 mm. Each main seat provides 680 mm of knee clearance height and 900 mm of width, with 1.15 square meters of usable desktop area per person. The support structure includes an 80 mm main leg section with a 2 mm metal wall. The stated distributed desktop static load capacity is 80 kg per workstation, while the total structural weight reference is 125 kg. Practical features are integrated directly into the layout. Each station includes desk grommets for routing laptop and monitor cables below the work surface, paired with a cable tray. The cable opening is 80 mm in diameter, and the tray depth is 120 mm. Beneath the front worktop, a low cabinet combines a door compartment, drawer face, and vertical pull handle. Shelf capacity is rated at 20 kg per shelf, and pedestal drawer capacity is 15 kg per drawer. This configuration is well suited to administrative offices, open-plan seating, call centers, and shared workspaces that require dense but partitioned layouts, cable control, and personal under-desk storage. Procurement teams should plan for two work positions per displayed cluster, confirm building access and handling for the packaged weight, and allocate installation time based on the referenced assembly time of 40 minutes per set. Storage and cable requirements, panel height preferences, and the visual coordination of laminate, fabric, and black accent finishes should also be reviewed before ordering.

Two-Person 120-Degree L-Shaped Panel Workstation with Low Storage Cabinet Specifications
