PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Distributed static work-surface load	100 kg per workstation
Central cabinet top load	40 kg
Drawer load rating	15 kg per drawer
Lower cabinet shelf load	20 kg per shelf
Seating capacity	2 users
Net weight reference	180 kg
Partition stability rating	20 kg lateral impact at 900 mm height
Hardware cycle target	50,000 drawer and door operations
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm wood-grain melamine-laminated particleboard or MDF with sealed edges
Storage fronts	Vertical wood-grain laminate doors and drawer fronts with gray drawer recesses
Panel screens	Gray lower modesty panels with slatted or translucent upper privacy sections
Screen frame	Extruded aluminum-look metal posts and top rails with black or gray corner connectors
Support cabinets	Panel-base construction with gray exterior side panels and black plinth trim
Hardware	Integrated recessed drawer pulls, hinges, drawer slides, and panel connectors

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Workstation layout	Two mirrored L-shaped desks face inward and share a central full-height storage divider.
Personal storage	Each user has one shallow drawer above one lockable-ready lower door for stationery and personal items.
Shared separation storage	Central two-door cabinet creates visual division and supplies 800 mm-wide vertical storage between users.
Privacy screening	Framed slatted upper screens and solid lower panels limit visual distraction while retaining overhead light transfer.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Total packed gross weight	195 kg
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Suits two-person departmental clusters where seated privacy, personal storage, and compact supervision are required.
Administrative or finance work area	L-shaped surfaces support laptop work, documents, and reference materials while the central cabinet separates users.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office desks and workstations safety, strength, and durability requirements for the work-surface system.
EN 527-2:2002+A1:2019	Mechanical safety and structural test requirements applicable to desk stability and loaded components.
EN 14073-2:2004	Safety requirements for office storage furniture, applicable to drawers, doors, and central cabinet.
EN 14073-3:2004	Stability and strength test methods for office storage units used as panel supports.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to laminate panels, edges, flatness, and assembly.
GB/T 3325-2017	Metal furniture technical requirements, applicable if metal screen frames and support rails are supplied.
GB/T 10357.5-2011	Furniture mechanical surface-durability test reference for cabinet doors, drawers, and loaded work surfaces.
GB 18580-2017	Formaldehyde emission limit for wood-based panels, recommended as procurement acceptance criteria.

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to laminate panels, edges, flatness, and assembly.;
2. GB/T 3325-2017: Metal furniture technical requirements, applicable if metal screen frames and support rails are supplied.;
3. GB/T 10357.5-2011: Furniture mechanical surface-durability test reference for cabinet doors, drawers, and loaded work surfaces.;
4. GB 18580-2017: Formaldehyde emission limit for wood-based panels, recommended as procurement acceptance criteria.;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-2P-LSH-CAB-3200

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-2P-LSH-CAB-3200

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-2P-LSH-CAB-3200Open Export Tool

Quick Actions

Post an RFQ

Product Description

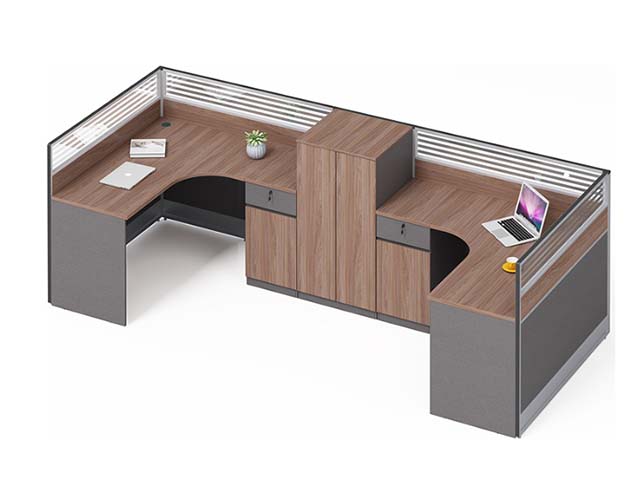

The Two-Person L-Shaped Panel Workstation with Central Storage, model WS-2P-LSH-CAB-3200, presents a coordinated office layout with two mirrored L-shaped desks arranged to face inward. A full-height storage divider runs between the work positions, creating a structured two-user cluster while keeping both occupants connected to the central zone. The visual design combines wood-grain laminate work surfaces and storage fronts with gray panel partitions, aluminum-look screen framing, black modesty panels, gray exterior cabinet sides, and black plinth trim. Privacy is managed through framed panel screens that use solid lower sections and slatted or translucent upper sections. These screens limit visual distraction without blocking overhead light, making the workstation suitable for open-plan settings where seated privacy and easy supervision are both important. Corner connectors are offered in black or gray to align with the partition and frame finish. The work surface is made from 25 mm wood-grain melamine-laminated particleboard or MDF with sealed edges, while the finished top thickness is 50 mm. Each main seat provides an effective knee clearance of 680 mm in height and 900 mm in width. The support system uses an 80 mm main section with a 2 mm metal wall, and the support cabinets use panel-base construction. Integrated hardware includes recessed drawer pulls, hinges, drawer slides, and panel connectors. Each user has one shallow drawer above a lower door that is lockable-ready, providing space for stationery and personal items. Between the users, the central two-door cabinet creates visual separation and offers 800 mm-wide vertical storage. The desk also includes an 80 mm diameter cable opening and a cable tray with 120 mm depth, helping keep power and data leads organized around desktop equipment. Load capacity is rated at 100 kg distributed static load per workstation, 40 kg on the central cabinet top, 15 kg per drawer, and 20 kg per lower cabinet shelf. The partition stability reference is 20 kg lateral impact at 900 mm height. The workstation has a net weight reference of 180 kg. This configuration is well suited to two-person departmental clusters, administrative offices, and finance work areas. The L-shaped surfaces support laptop use, paperwork, documents, and reference materials, while the central cabinet separates users and keeps shared or personal storage within reach. Procurement teams should plan for two cartons per set, confirm storage locking requirements with the selected hardware, review cable access against intended equipment, and allow installation time based on site conditions. The product is supplied as an unbranded office workstation.

Two-Person L-Shaped Panel Workstation with Central Storage Specifications
