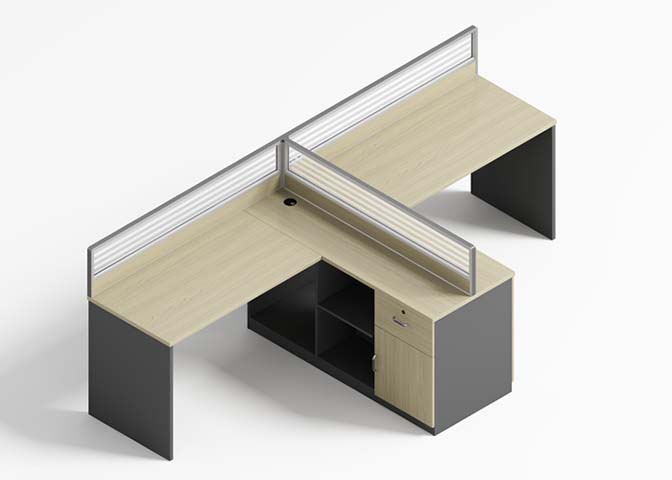

Two-Person L-Shaped Panel Workstation with Central Divider and Storage Pedestal (model WS-2P-L1430-PED) is listed under L-Shaped Office Desk. Dimensions: 2860 × 1430 × 1100 mm. Materials: 25 mm melamine-faced engineered-wood panels with light oak grain and sealed edges. Load capacity: 100 kg per workstation. Product Features: two-person,workstation,L-shaped,layout,panel,divider,storage,pedestal,cable,grommet,modern,furniture. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | GENUOWA | Model | WS-2P-L1430-PED |
| Finished Top Thickness | 50 mm | Effective Knee Clearance | 680 mm high and 900 mm wide per main seat |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
| Distributed worktop static load | 100 kg per workstation | Central pedestal top load | 60 kg |
| Drawer load capacity | 15 kg | Recommended user capacity | 2 persons |
| Product net weight | 138 kg | Seated-user weight allowance | 150 kg per chair position |
| Hardware cycle target | 50,000 drawer/door cycles | Top Static Load Reference | 150 kg uniformly distributed |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | Hinge Opening Life | Acceptance target 80000 cycles |
| Work surfaces | 25 mm melamine-faced engineered-wood panels with light oak grain and sealed edges | Support panels | Charcoal melamine-faced engineered-wood panel legs with exposed floor-bearing edges |
| Storage cabinet | Combination of charcoal carcass panels and light oak melamine drawer/door fronts | Divider frame | Extruded aluminum frame with silver-gray anodized or powder-coated finish |
| Divider infill | Translucent ribbed acrylic or polycarbonate privacy panel | Drawer and door hardware | Steel handle, lock cylinder, hinges and 450 mm side-mounted drawer slides |
| Workstation configuration | Two mirrored L-shaped desks share a T-shaped divider and central storage zone | Privacy separation | Low divider screens run along the center and return edges, reducing visual distraction without blocking room light |
| Cable management | One 60 mm round grommet routes monitor and power cables through the near worktop into the under-desk area | Integrated storage | Central pedestal provides two open cubbies, one lockable drawer and one lockable lower door |
| Carton dimensions, all packages | 1500 x 680 x 120 mm, 900 x 560 x 110 mm, 840 x 540 x 420 mm, 1120 x 120 x 80 mm | Reference Package Count | 1 set / 2 cartons |
| Reference Assembly Time | 40 minutes per set | Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | Reference Packaging Volume | 1 m³/set |
| Open-plan office | Suitable for two staff in open offices where visual separation, under-desk storage and cable routing are required | Administrative or shared service area | Suited to back-office, administration and customer-service teams using monitors, keyboards and locked personal storage |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Distributed worktop static load | 100 kg per workstation | |
|---|---|---|
| Central pedestal top load | 60 kg | |
| Drawer load capacity | 15 kg | |
| Recommended user capacity | 2 persons | |
| Product net weight | 138 kg | |
| Seated-user weight allowance | 150 kg per chair position | |
| Hardware cycle target | 50,000 drawer/door cycles | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surfaces | 25 mm melamine-faced engineered-wood panels with light oak grain and sealed edges | |
|---|---|---|
| Support panels | Charcoal melamine-faced engineered-wood panel legs with exposed floor-bearing edges | |
| Storage cabinet | Combination of charcoal carcass panels and light oak melamine drawer/door fronts | |
| Divider frame | Extruded aluminum frame with silver-gray anodized or powder-coated finish | |
| Divider infill | Translucent ribbed acrylic or polycarbonate privacy panel | |
| Drawer and door hardware | Steel handle, lock cylinder, hinges and 450 mm side-mounted drawer slides |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Workstation configuration | Two mirrored L-shaped desks share a T-shaped divider and central storage zone | |
|---|---|---|
| Privacy separation | Low divider screens run along the center and return edges, reducing visual distraction without blocking room light | |
| Cable management | One 60 mm round grommet routes monitor and power cables through the near worktop into the under-desk area | |
| Integrated storage | Central pedestal provides two open cubbies, one lockable drawer and one lockable lower door |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Carton dimensions, all packages | 1500 x 680 x 120 mm, 900 x 560 x 110 mm, 840 x 540 x 420 mm, 1120 x 120 x 80 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office | Suitable for two staff in open offices where visual separation, under-desk storage and cable routing are required | |
|---|---|---|
| Administrative or shared service area | Suited to back-office, administration and customer-service teams using monitors, keyboards and locked personal storage |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 applicability | Applicable standards and test results require confirmation | |
|---|---|---|
| EN 527-2:2011 applicability | Office desk dimensional safety requirements including seated clearances and stability | |
| EN 16139:2013+A1:2018 applicability | Strength, durability and stability requirements for non-domestic seating-area furniture structures | |
| EN 717-1:2004 applicability | Formaldehyde release chamber test for engineered-wood panels |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 applicability | Desk products vertical load, horizontal stability, leg strength and cyclic durability tests | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 applicability | Storage cabinet stability, drawer slide, door and load test requirements for the pedestal | |
| ANSI/BIFMA e3-2019 applicability | Sustainability, materials, energy and social responsibility scoring framework for furniture procurement |
Standards applicable to China-market projects
| GB/T 3324-2017 applicability | Use for general technical requirements and dimensions of wooden furniture cabinet and desk components | |
|---|---|---|
| GB/T 3325-2017 applicability | Use for metal furniture requirements covering frames, fasteners and structural metal parts | |
| GB/T 10357.5-2011 applicability | Use for furniture strength and durability test methods when validating table load performance | |
| GB 18580-2017 applicability | Use formaldehyde emission limits for engineered-wood boards in the worktop and cabinet |
This product must meet the following technical requirements: 1. GB/T 3324-2017 applicability: Use for general technical requirements and dimensions of wooden furniture cabinet and desk components; 2. GB/T 3325-2017 applicability: Use for metal furniture requirements covering frames, fasteners and structural metal parts; 3. GB/T 10357.5-2011 applicability: Use for furniture strength and durability test methods when validating table load performance; 4. GB 18580-2017 applicability: Use formaldehyde emission limits for engineered-wood boards in the worktop and cabinet; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
