PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Seating capacity	4 persons
Desktop distributed load	80 kg per position
Central shelf load	15 kg per open cubby
Lower cabinet shelf load	25 kg per shelf
Product net weight	240 kg
Floor load	24 kg per square meter
Adjustable foot range	15 mm
Color options	3 finish groups
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surfaces	25 mm melamine-faced particleboard with PVC edge banding
Storage carcass	18 mm melamine-faced board with exposed panels edged in matching PVC
Partition panels	Fabric-faced medium-density core over an aluminum-look framed screen
Frame and trim	Aluminum-look extruded profile with corner posts and top rails
Lower modesty panels	Gray laminate or fabric-faced board with silver bottom rail
Support structure	Powder-coated steel leg and rail frame behind board panels

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable management	60 mm desktop grommet routes monitor and power cables into the under-desk zone
Privacy division	350 mm low screen separates adjacent users while retaining sight lines over the workstation
Shared storage	Central spine combines open cubbies and a hinged lower door for team documents
Seating orientation	Four users face outward in a cross-shaped arrangement, using the central body as a common divider

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Suitable for a four-person team cluster needing individual privacy plus shared central filing
Administrative workspace	Suitable for clerical, finance or shared-service staff using laptops, monitors and document storage

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-CROSS4-3600

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-CROSS4-3600

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-CROSS4-3600Open Export Tool

Quick Actions

Post an RFQ

Product Description

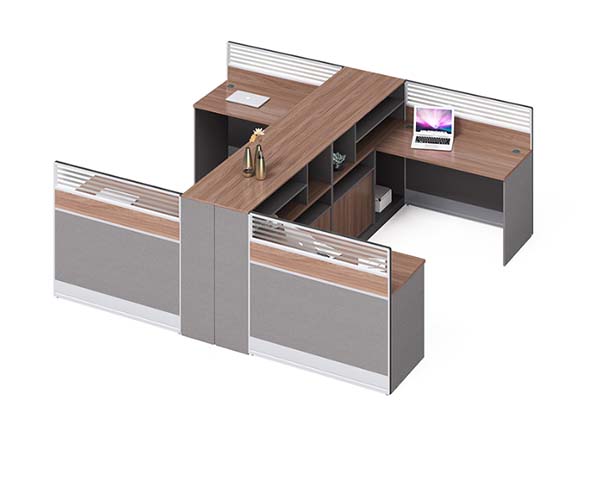

The Four-Person Cross-Shaped Panel Workstation with Central Storage, model WS-CROSS3600is an unbranded office workstation designed for team clusters that require individual work zones together with compact shared storage. Its cross-shaped layout seats four users facing outward, with the central storage body acting as a common divider between positions. This arrangement creates a structured four-desk cluster while preserving an open-plan character and allowing sight lines over the low separating panels. Visually, the workstation combines walnut-look melamine work surfaces, fabric-covered panel dividers, aluminum-look extruded framing, and gray lower modesty panels or fabric-faced boards with a silver bottom rail. The low 350 mm screens provide modest separation between adjacent users without fully enclosing each seat, supporting a balance of privacy and easy team communication. Corner posts and top rails give the layout a defined commercial furniture appearance, while the central storage spine forms the visual and functional center of the configuration. The worktops are made from 25 mm melamine-faced particleboard with PVC edge banding, and the finished top thickness is 50 mm. Storage cabinets use 18 mm melamine-faced board, with exposed panels finished in matching PVC edging. Partition panels feature a fabric-faced medium-density core within an aluminum-look framed screen. The support system uses a powder-coated steel leg and rail frame behind the board panels, with an 80 mm main support section and 2 mm metal wall. Each main seat provides 680 mm of knee clearance height and 900 mm of width. Adjustable feet offer 15 mm of adjustment for leveling on uneven floors. Practical functions are built around daily office use. Each position includes an 80 mm cable opening linked to a 60 mm desktop grommet that routes monitor and power cables into the under-desk area, where a cable tray with 120 mm depth helps contain wiring. The central spine combines open cubbies for frequently used items and a hinged lower door for team documents. The desktop is rated for a distributed load of 80 kg per position, each open cubby supports 15 kg, and each lower cabinet shelf supports 25 kg. This workstation is well suited to open-plan offices, administrative departments, clerical or finance teams, and shared-service environments using laptops, monitors, and paper-based filing. It is also appropriate for residential settings where a dedicated four-person workspace is required. Procurement planning should account for the 240 kg net weight, floor load of 24 kg per square meter, two-carton set packing, and 40-minute reference assembly time. Buyers should confirm site access, floor capacity, power and data locations, and the need for professional installation before ordering.

Four-Person Cross-Shaped Panel Workstation with Central Storage Specifications
