PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 2400 × 1200 mm
Overall unit dimensions (2-person L-layout)	2800 x 2400 x 1200 mm
Work surface height	750 mm
Desktop thickness	25 mm
Primary L-seat work surface span	1400 x 1200 mm
Knee well clearance height	650 mm
Knee well opening width	800 mm
Partition frame profile thickness	83 mm
Lower fabric privacy panel height	900 mm
Upper frosted glass panel height	300 mm
3-drawer pedestal dimensions	400 x 550 x 650 mm
Cable grommet diameter	60 mm
Modesty panel height	450 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Per-seat desktop static load capacity	120 kg
Per-unit user capacity	2 users
Product net weight (per dual station)	180 kg
Frame structural static load	500 kg
Commercial use warranty	10 years
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles
Recommended Procurement Warranty	Structure 5 years; hardware 3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25mm E1-grade melamine-faced MFC with 2mm PVC edge banding
Partition frame	1.5mm thick powder-coated gray aluminum alloy profile
Lower partition panels	Sound-dampening polyester fabric tackable panels over composite core
Upper partition panels	5mm frosted tempered safety glass
Drawer pedestal	0.8mm thick cold-rolled steel with white epoxy powder coating
Modesty panel	18mm thick melamine-faced composite panel with gray finish
Cable management components	ABS plastic grommets and rear raceway covers
Leveling glides	Nylon base with steel threaded adjuster
Drawer hardware	Zinc-plated steel full-extension drawer slides with integrated lock
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Drawer operation	Three lockable drawers with full-extension slides, keyed lock secures all drawers
Cable management	Desktop cable grommet routes cords to rear under-desk raceway with removable access panels
Privacy function	Partial-height panels block seated sightlines while glass upper section allows overhead light penetration
Modular connection	Partition frames connect with bracket hardware to support reconfiguration of workstation layouts
Leveling adjustment	Threaded base glides adjust 15mm to compensate for uneven office flooring
Seating ergonomics	Curved concave desktop edge reduces wrist pressure at primary seating position
Surface durability	Thermally fused melamine finish resists scratches, stains, and heat from standard office equipment
Pedestal storage	Two shallow stationery drawers and one deep hanging file drawer for letter/A4 documents
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office spaces	Suited for 2-person team work zones in corporate open-plan layouts, balances privacy and collaboration
Call center and administrative offices	Provides dedicated individual work space with integrated storage for daily paperwork and supplies
Small business team areas	Modular design supports easy expansion as team headcount grows without full workspace replacement
Government and public sector offices	Durable commercial construction meets heavy daily use requirements for public-facing work areas
Startup co-working spaces	Neutral white/gray color scheme adapts to flexible short-term and long-term desk rental configurations

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office worktables safety and strength requirements, applicable to worksurface performance
EN 1335-1:2020	Office furniture seating dimensional guidance, applicable to knee clearance design
EN 1022:2018	Furniture seating stability test method, referenced for workstation adjacent seating layout
EN 13986:2004	Wood-based panels for construction, applicable to MFC panel material specification

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products standard, applicable to worksurface load and durability testing
ANSI/BIFMA X5.9-2019	Storage units standard, applicable to drawer pedestal performance validation
ANSI/BIFMA G1-2013	Ergonomic guidelines for office furniture, applicable to work height and clearance

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to composite desktop and panel components
GB/T 3325-2017	General technical requirements for metal furniture, applicable to steel pedestal and frame components
GB 18580-2017	Formaldehyde emission limits for wood-based panels, required for MFC worksurface materials
GB/T 24821-2009	Office desk performance test methods, applicable to worksurface load and stability validation

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to composite desktop and panel components;
2. GB/T 3325-2017: General technical requirements for metal furniture, applicable to steel pedestal and frame components;
3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, required for MFC worksurface materials;
4. GB/T 24821-2009: Office desk performance test methods, applicable to worksurface load and stability validation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CUB-L2P-3DRAW-GLSPART

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CUB-L2P-3DRAW-GLSPART

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CUB-L2P-3DRAW-GLSPARTOpen Export Tool

Quick Actions

Post an RFQ

Product Description

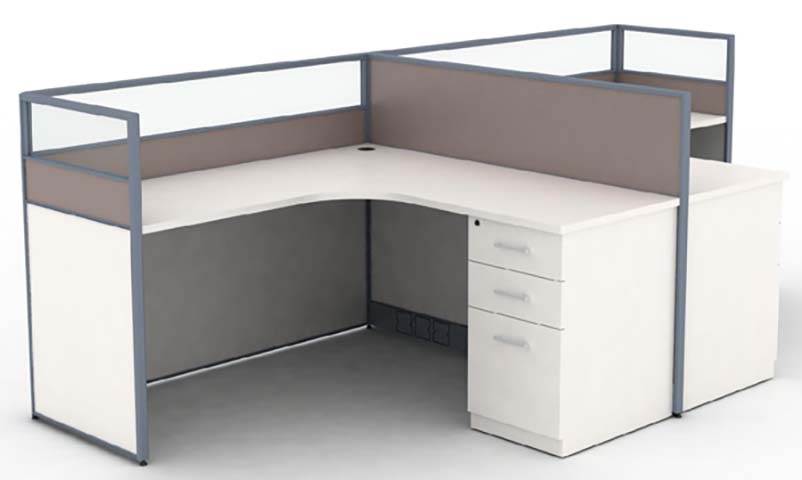

The Two-Person L-Shaped Office Cubicle Workstation with Integrated 3-Drawer Pedestal (model CUB-L2P-3DRAW-GLSPART) is an unbranded modular open-plan furniture solution designed to balance individual privacy and collaborative access for shared work environments. Its L-shaped layout positions two dedicated workstations at a right-angle configuration, with overall dimensions of 2800 x 2400 x 1200 mm, a 750 mm work surface height, and 25 mm thick desktops. Each primary L-seat work surface spans 1400 x 1200 mm, with 650 mm knee well clearance height and 800 mm knee well opening width to accommodate standard office seating. Partial-height privacy partitions use an 83 mm thick powder-coated gray aluminum frame, pairing 900 mm tall lower sound-dampening polyester fabric tackable panels over a composite core with 5 mm frosted tempered safety glass upper panels; this design blocks seated sightlines between adjacent users while allowing overhead light to filter through the workspace. The frame connects via bracket hardware to support flexible layout reconfiguration, and 18 mm thick gray melamine-faced composite modesty panels shield under-desk areas from view. The work surface is constructed from 25 mm E1-grade melamine-faced MFC with 2 mm PVC edge banding, finished with a thermally fused melamine layer that resists scratches, stains, and heat from standard office equipment; curved concave desktop edges at primary seating positions reduce wrist pressure during extended work sessions. An integrated 3-drawer pedestal is built from 0.8 mm thick cold-rolled steel with a white epoxy powder coating, fitted with zinc-plated steel full-extension drawer slides and a keyed lock that secures all three drawers for private storage of paperwork and office supplies. Additional functional details include ABS plastic desktop cable grommets that route cords to a rear under-desk raceway with removable access panels for tidy wiring, threaded nylon base glides with steel adjusters that adjust 15 mm to compensate for uneven office flooring, and a 10-year commercial use warranty covering durable construction that supports a per-seat desktop static load capacity of 120 kg and 500 kg frame structural static load. The workstation holds a net weight of 180 kg per dual station, ships as one set across two cartons with 0.8 m³ packaging volume and 120 kg packaged gross weight, and requires 40 minutes of assembly time per set. It is suited for 2-person team work zones in corporate open-plan offices, call center and administrative spaces requiring dedicated individual work areas with integrated storage, small business team areas that need easy modular expansion as headcount grows, government and public sector offices with heavy daily use demands, and startup co-working spaces where its neutral white and gray color scheme adapts to both short-term and long-term flexible desk rental configurations. When procuring, teams should account for required assembly time, modular expansion compatibility with additional matching units, and the unit’s fixed two-user capacity to align with space planning and team growth projections.
