PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Distributed desktop static load	60 kg
Drawer static load	15 kg
Open shelf load per level	20 kg
Concealed cabinet shelf load	20 kg
Product net weight	78 kg
Recommended occupancy	1 person
Panel board thickness	25 mm
Cabinet and divider board thickness	18 mm
Adjustable foot leveling travel	10 mm
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm melamine-faced particleboard with light oak grain and sealed impact-resistant edges
Storage carcass	18 mm charcoal-gray melamine-faced panel with fixed dividers and shelf supports
Door and drawer faces	Light oak melamine door panel with charcoal drawer front and keyed lock
Screen frame	Dark powder-coated aluminum or steel rectangular frame with corner posts
Upper privacy infill	Horizontal slatted translucent screen with light-diffusing acrylic or glass strips
Lower modesty panel	Light oak board panel set within the dark divider frame

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable management	One 60 mm round desktop grommet routes monitor and power cables into the rear desk zone
Privacy division	Floor-supported side screen combines a solid lower modesty panel and slatted upper ventilation strip
Integrated storage	Right return combines one locking drawer, one lower door and open shelf compartments
Fixed installation	Panels and storage cabinet connect as a knockdown workstation with concealed cam fittings and leveling feet

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Private or open-plan office task position	Suits one knowledge worker needing a defined seated workspace, privacy screening and immediate file storage

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-LSH-1400-1200-PANEL

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-LSH-1400-1200-PANEL

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-LSH-1400-1200-PANELOpen Export Tool

Quick Actions

Post an RFQ

Product Description

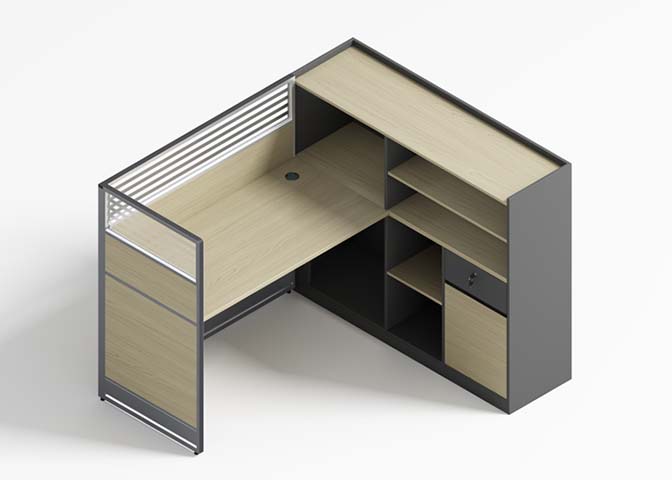

The Panel-Based L-Shaped Workstation Desk with Integrated Storage Hutch is a structured single-person office workstation designed for private offices and open-plan task areas where defined seating, visual privacy, and immediate storage are needed. Presented under an unbranded specification, model WS-LSH-1400-PANEL, its L-shaped layout provides a broad main work surface and a right-hand return that supports focused work while keeping files, supplies, and personal items close at hand. The light oak melamine surfaces create a warm, consistent visual character, balanced by charcoal-gray storage panels and a dark metal frame for a commercial, contemporary appearance. Its floor-supported side screen gives the workstation a clear spatial boundary without fully enclosing the user: a solid light oak modesty panel sits below, while horizontal translucent slats above diffuse light and maintain a degree of visibility. Construction is based on panel furniture principles with a knockdown assembly using concealed cam fittings and leveling feet. The work surface is formed from 25 mm melamine-faced particleboard with a light oak grain and sealed impact-resistant edges, supported by a dark powder-coated aluminum or steel rectangular frame with corner posts. The finished top is specified at 50 mm thick, while the main leg or support section uses an 80 mm metal section with a 2 mm wall. Storage cabinetry is built from 18 mm charcoal-gray melamine-faced panel with fixed dividers and shelf supports. Door faces use light oak melamine, the drawer front is charcoal, and the lockable door and drawer section supports secure personal or document storage. Practical features are integrated directly into the layout. The right return combines one locking drawer, a lower door, and open shelf compartments, reducing the need for separate mobile pedestals or nearby cabinets. A round desktop grommet routes monitor and power cables into the rear desk zone, where a cable tray helps contain leads and preserve a clear work surface. The desk is intended for one occupant, with effective knee clearance of 680 mm in height and 900 mm in width at the main seat. Rated static capacity is 60 kg distributed across the desktop, 15 kg for the drawer, and 20 kg per open shelf or concealed cabinet shelf, making the configuration best suited to normal office equipment and document storage rather than heavy industrial use. This workstation fits private offices, managerial task positions, knowledge-worker stations, and open-plan layouts that require modest screening and integrated personal storage. For residential use, it is appropriate for a spacious home office or study where its storage return can replace separate cabinet furniture. Procurement teams should plan for panel-and-frame assembly, confirm whether the screen infill is acrylic or glass for the selected production version, and account for storage access around the right-hand return. They should also verify packaging and delivery details before ordering, as reference logistics note a set supplied in multiple cartons, while other handling information records two cartons; the packaged gross weight and dimensional data should therefore be checked against the final shipment configuration.

Panel-Based L-Shaped Workstation Desk with Integrated Storage Hutch Specifications
