PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Seating capacity	6 users
Distributed desktop load	80 kg per workstation
Static desktop load at center	100 kg per seat
Central cabinet shelf load	20 kg per shelf
System net weight	260 kg
Hardware cyclic service target	50,000 door and drawer-equivalent cycles
Work surface impact resistance	45 mm ball-impact acceptance at 1400 mm
Edge bonding durability	No delamination after 24 h at 25 degree C and 60 percent humidity
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surfaces	25 mm E1-class wood-composite board with walnut woodgrain melamine face and PVC edge banding
Support and modesty panels	25 mm dark gray and light gray melamine-faced composite panels with squared exposed edges
Privacy screens	White or light-gray horizontal slats in a dark metal or framed panel system
Central storage cabinet	Walnut-laminate door, gray outer carcass, open shelves, and one lower enclosed compartment
Cable grommets	60 mm round black plastic or metal-rimmed desk grommets at each work position
Joining and leveling hardware	Powder-coated steel connector plates, cam locks, screws, and adjustable 10 mm glides

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Six-position work layout	Three opposing seat pairs share a 400 mm central spine, allowing independent computer work in one linear cluster
Privacy and visual screening	400 mm high slatted screens separate adjacent and facing users while retaining airflow and partial sight lines
Cable routing	Each 1200 mm desktop has a 60 mm grommet leading cables toward the central spine and under-desk zone
Central storage	The front service block combines a woodgrain door, open shelving, and a lower compartment for CPU, bag, or office storage

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Total packed volume	1.65 CBM
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office cluster	Suitable for six staff in sales, administration, finance, or operational teams needing defined seats and shared central storage
Call center or back-office processing area	Appropriate for laptop or thin-client work because each seat provides 600 mm depth, cable access, and a modesty panel

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1 office desk safety	Apply to desk safety, structural integrity, and intended office use
EN 527-2 office desk mechanical requirements	Use for strength, durability, and stability acceptance of each workstation module
EN 717-1 formaldehyde release	Use as board emission acceptance reference when panel test reports are supplied
EN 15372 office storage strength and durability	Apply to the central cabinet doors, shelves, and carcass

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5 desk and tabletops	Use for strength, fatigue, drop, and structural acceptance of individual desk modules
ANSI/BIFMA X5.9 storage units	Use for central storage cabinet load, door operation, stability, and durability checks
ANSI/BIFMA e3 furniture sustainability	Use as a multi-attribute procurement option for material, energy, and social-impact reporting
ANSI/BIFMA G1 ergonomic desk guideline	Use the 750 mm representative work height and seated clearance for fixed-height office planning

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324 dimensional and structural acceptance	Apply to wooden panel furniture dimensions, workmanship, and stability inspection
GB/T 3325 metal furniture acceptance	Apply if the divider frame, brackets, or supports contain metal components
GB 18584 indoor furniture emission control	Use as the formaldehyde and pollutant release acceptance reference for wood-based panels
GB/T 10357.6 furniture stability	Use for single-module and assembled-system stability verification

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324 dimensional and structural acceptance: Apply to wooden panel furniture dimensions, workmanship, and stability inspection;
2. GB/T 3325 metal furniture acceptance: Apply if the divider frame, brackets, or supports contain metal components;
3. GB 18584 indoor furniture emission control: Use as the formaldehyde and pollutant release acceptance reference for wood-based panels;
4. GB/T 10357.6 furniture stability: Use for single-module and assembled-system stability verification;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS6-3600X2400-CS

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS6-3600X2400-CS

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS6-3600X2400-CSOpen Export Tool

Quick Actions

Post an RFQ

Product Description

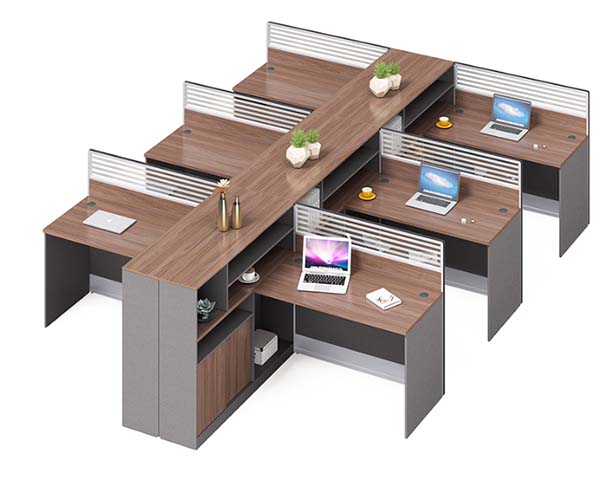

The Six-Person Face-to-Face Modular Office Workstation with Central Storage is an unbranded cubicle desk system designed for organized team seating in a single linear cluster. Model WS3600X2400-CS arranges three opposing seat pairs around a central spine, giving each user a defined computer position while supporting shared access to storage and cable routing. The layout balances privacy with openness: horizontal slatted screens separate adjacent and facing users, yet their open form preserves airflow and retains partial sight lines across the workstation. Visually, the system combines walnut-look work surfaces and central laminate cabinetry with gray and dark gray support and modesty panels. Privacy screens use white or light-gray horizontal slats within a dark metal or framed panel system, creating a structured commercial appearance suited to neutral office interiors. The central service block becomes the visual and functional anchor, presenting a woodgrain door, open shelving, and a lower enclosed compartment within a gray outer carcass. Construction uses wood-composite boards with melamine faces and panel supports. Work surfaces are 25 mm E1-class composite board with walnut woodgrain melamine and PVC edge banding, while support and modesty panels use 25 mm dark gray and light gray melamine-faced composite panels with squared exposed edges. The finished top thickness is 50 mm, and the main support section has an 80 mm profile with a 2 mm metal wall. Hardware includes powder-coated steel connector plates, cam locks, screws, adjustable 10 mm glides, and metal or ABS fittings. Each main seat provides effective knee clearance of 680 mm in height and 900 mm in width, with a 1200 mm desktop position and 600 mm desk depth. A 60 mm round black plastic or metal-rimmed grommet at every position directs cables toward the central spine and under-desk area, where an 80 mm cable opening and a cable tray with 120 mm depth support cable management. The central storage block offers open shelves plus a lower compartment suitable for a CPU, bag, or general office items. Published load guidance includes an 80 kg distributed desktop load per workstation, a 100 kg static center load per seat, and a 20 kg shelf load. The door and drawer-equivalent hardware has a cyclic service target of 50,000 cycles, and the work surface meets a 45 mm ball-impact acceptance criterion from 1400 mm. This configuration is well suited to open-plan offices for sales, administration, finance, or operations teams, as well as call centers and back-office processing areas using laptops or thin clients. Procurement teams should plan for six users, confirm site access and receiving arrangements, and allocate installation time. The supplied packaging references note a 40-minute assembly time per set, with packed logistics information that should be verified at order placement because package count, gross weight, and volume figures vary across the reference records.
