PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Seating capacity	4 persons
Distributed work-surface load	100 kg per seat
Pedestal drawer static load	25 kg per drawer
Open shelf load	15 kg per shelf
Unit net weight	260 kg
Floor loading footprint	33 kg per square meter
Pedestal mobility load	45 kg total contents
Warranty target	5 years
Color option count	2 visible finishes
Worktop distributed static load	100 kg per workstation

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm walnut-grain melamine-faced particleboard with sealed edges
Edge banding	2 mm PVC edge banding on desk boards
Divider screens	Translucent frosted panels with horizontal ribbed strips and silver aluminum frame
End panels and modesty panels	Dark gray melamine-faced panel with straight square edge
Storage pedestal	Walnut woodgrain front, gray side panels, drawer section, open binder compartment, and black caster base
Support and connector hardware	Steel brackets, posts, screws, and leveling glides with silver or black finish

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Workstation division	Four L-shaped desks meet in a cross plan, giving each user independent primary and return work surfaces
Privacy and spatial separation	Translucent ribbed divider screens run along desk boundaries and provide seated sightline screening without fully blocking light
Cable management	Two 60 mm circular cable grommets per seat route monitor and power cables from the work surface toward the under-desk zone
Storage support	One mobile pedestal shown includes drawers or door storage plus an open vertical compartment for binders

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office cluster	Suitable for 4 staff in 7.84 square meter planning footprint where screens provide seated visual separation
Administrative workstation area	Supports laptop, monitor, paperwork, and file storage for finance, HR, or clerical users

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-CR4-L1200-WAL

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-CR4-L1200-WAL

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-CR4-L1200-WALOpen Export Tool

Quick Actions

Post an RFQ

Product Description

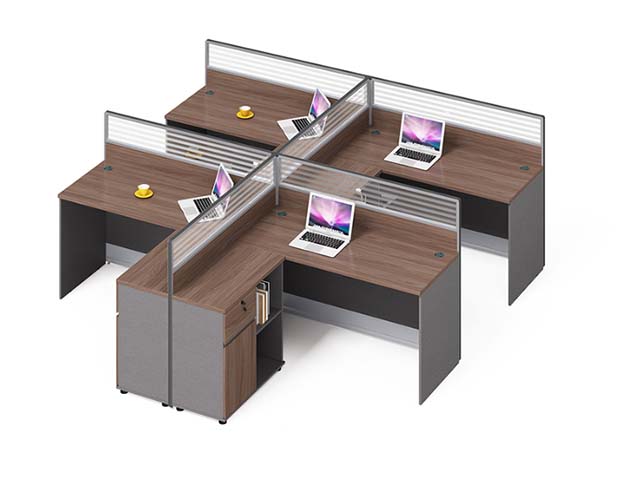

The Four-Person Cross-Shaped Panel Workstation combines four L-shaped desks in a central cross layout, creating a compact cluster while preserving separate primary and return work surfaces for each occupant. Walnut-grain melamine tops provide a warm woodgrain appearance, balanced by dark gray end and modesty panels. Translucent frosted divider screens with horizontal ribbed strips and silver aluminum frames follow the desk boundaries, offering seated sightline screening without fully closing the space or blocking light. Its structured layout makes the workstation well suited to open-plan offices, team clusters, and administrative areas for finance, HR, or clerical work. Each position supports laptop, monitor, paperwork, and file-storage activities, and the planning footprint is suitable for four staff in an organized shared workspace. It can also be considered for residential office or study settings where multiple users need defined work zones. Construction uses 25 mm walnut-grain melamine-faced particleboard with sealed edges and 2 mm PVC edge banding on the desk boards. Dark gray melamine-faced panels with straight square edges form the end and modesty panels, while steel brackets, posts, screws, connectors, and leveling glides provide support and alignment with silver or black finish options. The finished top is 50 mm thick, the main support section is 80 mm with 2 mm metal wall thickness, and each main seat provides 680 mm high and 900 mm wide knee clearance. Practical features include integrated cable management and mobile storage. Each seat has two 60 mm circular cable grommets that route monitor and power cables from the work surface into the under-desk area, supported by an 80 mm cable opening and a cable tray with 120 mm depth. The included mobile pedestal presents a walnut woodgrain front and gray side panels, with a drawer or door storage section, an open vertical binder compartment, and a black caster base. Rated capacities include 100 kg distributed work-surface load per seat, 25 kg static load per drawer, 15 kg per open shelf, and 45 kg total contents for pedestal mobility. Procurement planning should account for the unit’s 260 kg net weight and 33 kg per square meter floor loading footprint. The supplied packaging references note one set across multiple cartons, with a packaging volume of 1 cubic meter per set and a reference assembly time of 40 minutes per set. Buyers should confirm final carton count, delivery access, floor protection, assembly resources, and whether the pedestal configuration matches the required drawer, door, and binder storage needs.

Four-Person Cross-Shaped Panel Workstation with L-Shaped Desks and Dividers Specifications
