Automatic mm / inch conversion · Core engineering specifications
| Overall cluster footprint | 4200 x 4200 x 1200 mm | |
|---|---|---|
| Single L-seat main worktop size | 1400 x 600 mm | |
| Single L-seat side return worktop size | 1200 x 400 mm | |
| Worktop height from floor | 750 mm | |
| Privacy partition total height | 1200 mm | |
| Curved knee opening clearance width | 700 mm | |
| Under-desk knee clearance height | 680 mm | |
| Worktop thickness | 25 mm | |
| PVC edge banding thickness | 3 mm | |
| Partition panel thickness | 50 mm | |
| Under-desk storage pedestal size | 400 x 500 x 650 mm | |
| Top storage shelf depth per seat | 300 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
| Total set net weight (reference) | 420 kg | |
|---|---|---|
| Single worktop static load capacity | 150 kg | |
| Recommended maximum user weight per seat | 120 kg | |
| Worktop surface abrasion resistance | 2000 cycles | |
| Available finish color count | 60 | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
| Worktop panels | E1 grade melamine-faced particleboard, scratch/stain/water resistant | |
|---|---|---|
| Partition frames | 6063-T5 aluminum alloy extrusions with powder-coated bronze finish | |
| Lower partition panels | Fabric-wrapped high-density particleboard, dark grey finish | |
| Upper partition trim | Horizontal slatted frosted acrylic semi-transparent panels | |
| Desk support panels | 18mm thick melamine-faced particleboard, dark grey finish | |
| Edge banding | 3mm thick high-impact PVC, matching worktop light grey color | |
| Hardware connectors | Zinc-plated steel knockdown (KD) cam lock fittings | |
| Adjustable glides | Nylon base with steel threaded stem, 15mm adjustment range | |
| Pedestal drawer slides | Full-extension cold-rolled steel ball-bearing slides | |
| Pedestal door handle | Matte silver aluminum alloy recessed pull | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features

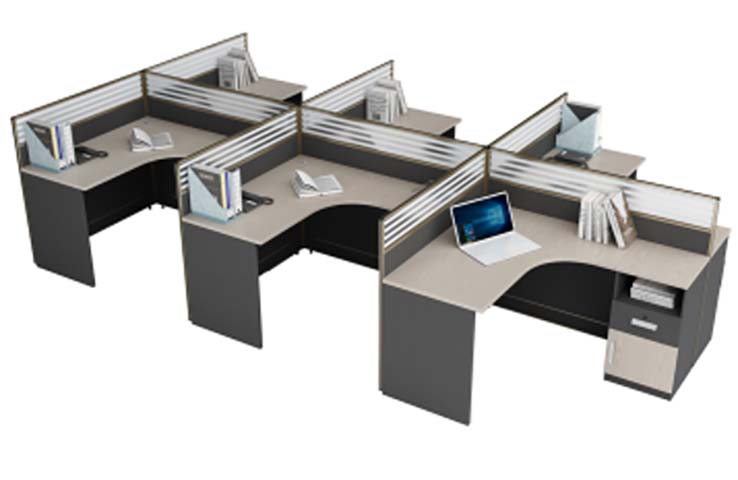

| Seated work position | 6 individual L-shaped workstations facing cross cluster center | |
|---|---|---|
| Privacy separation | 1200mm tall partitions block line of sight between adjacent seated users | |
| Cable management | Recessed cable grommets on each main worktop surface for power/data routing | |
| Integrated storage | 1 drawer + 1 door cabinet pedestal per selected workstation for files/supplies | |
| Rear shelf storage | Raised side shelf behind each partition for books, files or document trays | |
| Floor leveling | Threaded adjustable glides compensate for uneven floor surfaces up to 15mm | |
| Modular reconfiguration | Knockdown connecting hardware allows layout changes or seat count adjustment | |
| Knee access | Curved concave front worktop edge provides ergonomic leg entry for seated users | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
| Open plan office areas | Provides individual private workspaces in open office floors for staff teams | |
|---|---|---|
| Call center operations | 6-seat cluster layout supports high-density agent seating with individual work surfaces | |
| Startup and small business offices | Compact cross layout maximizes seat count without requiring separate private offices | |
| Administrative and clerical work zones | Integrated storage and cable management support daily paperwork and computer tasks | |
| Training or temporary project teams | Modular construction allows easy reconfiguration for temporary project assignments | |
| Government and corporate back-office areas | Durable commercial construction withstands high daily use in shared work environments |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables: safety and strength requirements, applies to worktop load and stability | |
|---|---|---|
| EN 527-2:2016 | Office work tables: dimensional requirements for seated office work | |
| EN 1335-1:2020 | Office work chair dimensional coordination, applies to knee clearance dimensions | |
| EN 1022:2018 | Domestic and contract furniture: seating strength and stability for chair compatibility |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products: safety, durability and structural performance requirements | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units: performance requirements for integrated pedestals and shelves | |
| ANSI/BIFMA M7.1-2020 | Furniture emissions: VOC and formaldehyde testing for low-emission office furniture |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applies to desk panel and storage components | |
|---|---|---|
| GB/T 3327-2019 | Office furniture: desks and tables, applies to worktop height, load and stability requirements | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applies to MFC/MDF components | |
| GB/T 35607-2017 | Green product assessment for furniture, applies to low-emission material selection |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applies to desk panel and storage components; 2. GB/T 3327-2019: Office furniture: desks and tables, applies to worktop height, load and stability requirements; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applies to MFC/MDF components; 4. GB/T 35607-2017: Green product assessment for furniture, applies to low-emission material selection; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
