PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Number of work positions	4 seats
Distributed static worksurface load	80 kg per seat
Pedestal top load	40 kg per cabinet
Drawer load capacity	15 kg per drawer
Lower cabinet shelf load	20 kg per shelf level
Product net weight	260 kg per four-seat cluster
Workstation density	0.51 square meter floor area per seat
Durability target	50,000 drawer-opening cycles
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worksurface	25 mm wood-grain high-pressure laminate or melamine board with sealed edge banding
Storage cabinet fronts	Vertical wood-grain laminate door panels with grey lacquered or melamine cabinet frames
Partition panels	Grey fabric-look or melamine-faced chipboard/MDF lower panels with framed upper glass/louver infill
Upper divider infill	Clear glass or translucent louver panels in aluminium or PVC frame rails
Support and modesty structure	Grey rectangular panel aprons with concealed steel connector plates and floor-level panel supports
Hardware	Lockable drawer/door lock, metal hinges, ball-bearing drawer slides and panel joining profiles

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Workstation layout	Four L-shaped desks face outward from a central X-shaped divider, giving each user independent work and storage zones
Privacy division	Lower solid panels block direct sightlines while upper slatted screens preserve light and partial visual privacy
Integrated storage	Each seat includes one upper open compartment, one lockable drawer and one lower door cabinet for personal filing
Cable management	Worktop grommet position and partition-guided cable routing support laptop and monitor power leads

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Packed carton count	8 cartons per four-person cluster
Largest carton dimensions	1450 x 1250 x 120 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Suitable for four-person teams in administrative, sales, finance or back-office areas where privacy, filing and laptop work are needed together
Procurement configuration	Recommended as a complete four-seat modular cluster that can be repeated across an open office floor using matching end panels and connectors

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-CR4-2800-2800-1100

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-CR4-2800-2800-1100

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-CR4-2800-2800-1100Open Export Tool

Quick Actions

Post an RFQ

Product Description

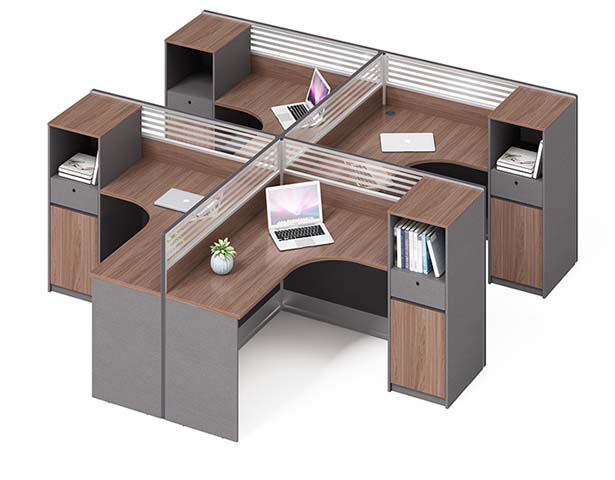

The Four-Person Cross-Shaped Panel Workstation with Integrated Storage Pedestals presents a structured, modern solution for open offices that need individual privacy without separating team members. Four L-shaped desks face outward from a central cross-shaped divider, forming one coordinated four-seat cluster. Each person receives an independent work zone, supported by lower solid panels that block direct sightlines and upper glass or louver screens that retain light while providing partial visual privacy. The wood-grain laminate worktops and storage fronts contrast with grey melamine panels, creating a clean commercial appearance suited to regular office interiors. Construction combines panel-based support with steel connection hardware. The work surface uses 25 mm wood-grain high-pressure laminate or melamine board with sealed edge banding, and the finished top thickness is 50 mm. Storage fronts use vertical wood-grain laminate door panels with grey lacquered or melamine cabinet frames. Divider lower panels are grey fabric-look or melamine-faced chipboard or MDF, while framed upper sections use clear glass or translucent louver infill in aluminium or PVC frame rails. Grey rectangular panel aprons, concealed steel connector plates, floor-level panel supports, metal hinges, ball-bearing drawer slides, and panel joining profiles complete the structural system. Each main seat provides 680 mm high and 900 mm wide knee clearance, and the main support section measures 80 mm with a 2 mm metal wall. Each position includes an upper open compartment, a lockable drawer, and a lower door cabinet for personal filing, allowing daily materials and confidential documents to be kept within reach. Load capacity is rated at 80 kg distributed static load per worksurface, 40 kg per pedestal top, 15 kg per drawer, and 20 kg per lower cabinet shelf. An 80 mm diameter worktop cable opening, 120 mm deep cable tray, and partition-guided routing help manage monitor and laptop power leads. The cluster is appropriate for four-person teams in administrative, sales, finance, or back-office areas where filing, privacy, and screen-based work are required together. It occupies 0.51 square meter of floor area per seat and weighs 260 kg net per four-seat cluster. Procurement should specify the complete modular cluster and repeat it with matching end panels and connectors. Delivery comprises eight cartons, with the largest carton measuring 1450 x 1250 x 120 mm; installation planning should allow for panel assembly, lock and drawer adjustment, and coordinated cable routing.

Four-Person Cross-Shaped Panel Workstation with Integrated Storage Pedestals Specifications
