Automatic mm / inch conversion · Core engineering specifications

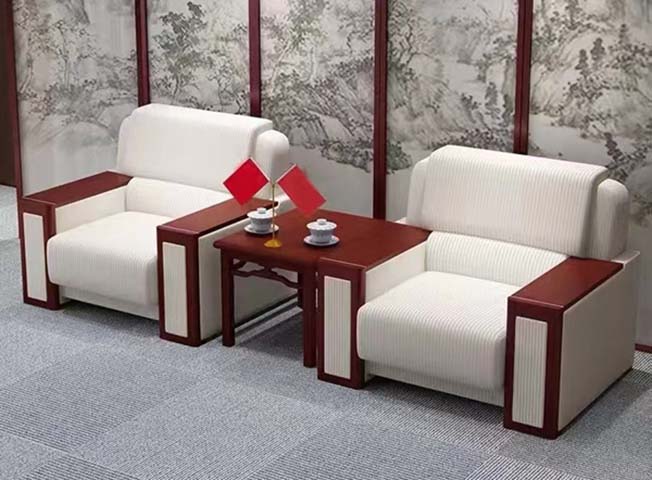

| Single armchair overall dimensions | 900 x 850 x 920 mm | |
|---|---|---|
| Matching side table overall dimensions | 700 x 500 x 550 mm | |
| Seat height from floor | 450 mm | |
| Seat depth | 620 mm | |
| Seat width per chair | 680 mm | |
| Backrest height above seat | 470 mm | |
| Armrest width | 180 mm | |
| Armrest height from floor | 620 mm | |
| Decorative panel inset on armrest | 300 x 120 mm | |
| Tabletop thickness | 40 mm | |
| Table leg section size | 60 x 60 mm | |
| Knee clearance under table | 510 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Single chair net weight | 65 kg | |
|---|---|---|
| Seat static load capacity | 150 kg | |
| Seat foam density | 45 kg/m³ | |
| Back foam density | 35 kg/m³ | |
| Seat foam thickness | 120 mm | |
| Fabric abrasion resistance | 50000 Martindale cycles | |
| Recommended single chair occupancy | 1 person | |
| Back foam thickness | 150 mm | |
| Fabric seam strength | 180 N | |
| Frame joint cyclic durability | 60000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| Upholstery fabric | Off-white vertical striped woven fabric | |
|---|---|---|
| Seat cushion core | High-density polyurethane foam | |
| Backrest core | Medium-high density polyurethane foam | |
| Armrest frame and trim | Dark red stained solid beech wood | |
| Armrest decorative inset | Cream off-white matte engineered wood panel with vertical fluting | |
| Internal structural frame | Kiln-dried solid wood and 18mm thick multi-layer engineered plywood | |
| Side table tabletop | Dark red stained solid wood veneer over particleboard core | |
| Side table legs and apron | Solid dark red stained hardwood with carved decorative cross-brace | |
| Seat base support | Sinuous steel spring support system with webbing layer | |
| Floor protection glides | High-density nylon non-marring glides fitted to base of all chair and table legs | |
| Table apron | 18mm thick engineered wood with dark red wood veneer, connected to legs with mortise and tenon joints | |
| Upholstery stitching | Polyester core-spun thread with 8mm seam pitch, double-stitched at all stress points |
Adjustment / rotation / tilt / mobility / storage features
| Seating function | Fixed-position formal single-seat reception seating with no recline, swivel or height adjustment | |
|---|---|---|
| Armrest function | Wide flat solid wood armrest tops integrated into chair frame, providing stable arm support and matching visual design with side table | |
| Side table function | Placed between two armchairs to hold teaware, name cards, documents and decorative display items at armrest height | |
| Stability design | Four fully grounded contact points per chair and per table with no moving parts, eliminating wobble during formal use | |
| Upholstery performance | Taut upholstery stitching with 8mm seam pitch, maintaining smooth wrinkle-free appearance over long term use | |
| Design coordination | Matching wood finish and decorative panel detailing across all armrests and table frame, creating a cohesive symmetrical reception layout | |
| Floor protection | Non-marring nylon glides on all leg bases, preventing scuff damage to low-pile commercial carpet and polished hard flooring | |
| Cushion performance | High-resilience foam core providing 40% rebound rate, recovering to original shape within 10 seconds after occupant stands | |
| Recline Angle / Lock Reference | 125° with 3 suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
Recommended spaces / users / usage modes
| VIP government reception rooms | Formal symmetrical layout with traditional Chinese aesthetic for receiving official guests, matching landscape screen and carpeted interiors shown in product context | |
|---|---|---|
| Corporate executive meeting lounges | Sturdy, formal seating for pre-meeting guest waiting or small closed-door discussions, providing a professional authoritative atmosphere | |
| Hotel executive lounge areas | Durable commercial grade construction for high-traffic guest reception with consistent formal appearance | |
| Conference venue guest rest areas | Comfortable upright seating for event attendees and honored guests during breaks, with integrated side table for beverage service | |
| Recommended layout | Two armchairs positioned opposite each other or facing a central main sofa, with the side table centered between units to maintain symmetrical formal arrangement | |
| Hotel executive club lounge areas | Durable commercial grade construction for high-traffic VIP guest reception with consistent formal appearance | |
| Conference venue honored guest rest areas | Comfortable upright seating for event attendees and distinguished guests during breaks, with integrated side table for tea and beverage service | |
| Institutional leadership offices | Formal visitor seating placed opposite executive desks for scheduled one-on-one meetings, matching traditional wood office furniture finishes |
EU Market Access Requirements* EN Standards
| EN 1022:2018 | Domestic furniture - Seating - Determination of stability, applicable for verifying tip resistance of fixed reception armchairs | |
|---|---|---|
| EN 12520:2015 | Furniture - Strength, durability and safety - Requirements for domestic seating, applicable for cyclic load testing of seat, back and armrests | |
| EN 15372:2016 | Furniture - Durability, strength and safety - Requirements for non-domestic tables, applicable for verifying tabletop and leg structural performance of the side table |
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.4 Public and Lounge Seating |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for dimensional tolerance, material quality and structural strength verification of wood frame and table components | |
|---|---|---|
| GB/T 3327-2016 | Furniture - Sofas, applicable for seating dimensional requirements, cushion durability, structural stability and upholstery quality verification | |
| GB 18584-2001 | Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture, applicable for formaldehyde and heavy metal emission testing of wood components | |
| GB 20286-2006 | Requirements for flame retardant performance of public place furniture and components, applicable for fabric and foam fire resistance verification for high-traffic official reception spaces |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for dimensional tolerance, material quality and structural strength verification of wood frame and table components; 2. GB/T 3327-2016: Furniture - Sofas, applicable for seating dimensional requirements, cushion durability, structural stability and upholstery quality verification; 3. GB 18584-2001: Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture, applicable for formaldehyde and heavy metal emission testing of wood components; 4. GB 20286-2006: Requirements for flame retardant performance of public place furniture and components, applicable for fabric and foam fire resistance verification for high-traffic official reception spaces; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
