HomeOffice Desks & Chairs FurnitureOffice Sofa SeriesLobby Reception SofaMOD-CURV-LOUNGE-01

MOD-CURV-LOUNGE-01

Code:K0DTEYV1
Request supplier quotes

Modular Curved Semicircular Lounge Seating Set with Round Occasional Tables Key Specifications 2026-08-03 20:41

Popularity: 5
Parameter Correction History (Public)
SubmittedFieldOriginal修改后参数Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

MOD-CURV-LOUNGE-01

1 active supplier(s) >>
Product supplierModular Curved Semicircular Lounge Seating Set with Round Occasional Tables,Upholstered fabric
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall set footprint3600 x 1800 mm
Single curved seat unit width1200 mm
Seat height from floor450 mm
Total backrest height750 mm
Seat depth600 mm
Seat cushion thickness120 mm
Backrest cushion thickness80 mm
Larger central coffee table diameter800 mm
Smaller upper coffee table diameter600 mm
Coffee table height420 mm
Seating internal clearance between opposite sofa units1400 mm
Outer enclosure panel thickness80 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Total seating capacity8 persons
Single seat static load capacity150 kg
Total set net weight280 kg
Foam density (seat cushion)45 kg/m³
Foam density (back cushion)35 kg/m³
Fabric abrasion resistance (Martindale)50000 cycles
Recommended warranty period for commercial use3 years
Seat foam density45 kg/m³
Back foam density35 kg/m³
Seam stitch durability8 stitches per inch
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Upholstery fabricWoven polyester commercial upholstery
Seat cushion coreHigh resilience polyurethane foam
Back cushion coreMedium density polyurethane foam
Inner seat frame18 mm thick engineered plywood
Outer enclosure panelsUpholstered MDF substrate
Coffee table topsMatte white laminate on particleboard core
Coffee table legs12 mm diameter powder-coated steel hairpin legs
Seam constructionVisible stitched upholstery seams
Base plinthUpholstered closed plinth base
Floor protection glides50 mm diameter hard plastic glides
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Modular seating configurationIndividual curved segments can be repositioned to form semicircular, full circular, or linear seating layouts
Enclosed back privacy designContinuous high outer back wraps around seating sides to create semi-private discussion zones without sightlines from surrounding areas
Fixed angle backrestBackrest angled 10 degrees from vertical to support relaxed upright posture for meetings and casual work
Floor fixed installation optionPlinth base can be secured to finished floor with hidden brackets to prevent movement in high traffic public areas
Upholstery color customizationTwo-tone design supports selection of custom fabric colors for seat cushions and outer back panels to match interior schemes
Surface cleaning compatibilityTight woven fabric supports regular vacuuming and spot cleaning with standard upholstery cleaners for high traffic maintenance
Modular layout reconfigurationIndividual curved segments connect via hidden under-seat metal brackets to form semicircular, full circular, or linear seating layouts to match floor plan dimensions
Fixed ergonomic backrest angleBackrest angled 10 degrees from vertical to support relaxed upright posture for 60 minute meetings and casual work sessions without additional adjustment
Floor anchoring optionPlinth base includes pre-drilled mounting points to secure units to finished hard floors with hidden L-brackets, preventing unintended movement in high-traffic public areas
Surface cleanabilityTight-woven fabric supports regular vacuuming and spot cleaning with pH-neutral upholstery cleaners, withstanding weekly maintenance in high-use spaces
Table height alignmentRound coffee tables sit 30 mm below seat height to provide easy access to placed items without obstructing user movement into and out of seats
Recline Angle / Lock Reference125° with 3 suggested lock positions
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Total packing units6 units
Largest packing carton dimensions1400 x 800 x 700 mm
Total shipment gross weight320 kg
Total shipment volume (CBM)2.9 CBM
On-site assembly time90 minutes
40ft HQ container loading capacity36 sets
Packaging materials5-layer corrugated carton, EPE foam wrapping, corner protectors, plastic shrink wrap
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Office reception and waiting areasProvides welcoming grouped seating for visitors, with central table space for water, magazines and sign-in materials
Open office informal collaboration zonesCreates a semi-private discussion nook for quick team meetings, brainstorming or casual 1:1 conversations away from desk workstations
Public space lounge areasSuitable for co-working spaces, education campus common rooms, healthcare waiting zones and airport lounges requiring high capacity, durable modular seating
Showroom and exhibition breakout zonesCan be configured into circular or semicircular layouts for product display, visitor rest areas and event networking spaces
Break and relaxation roomsComfortable upholstered seating supports staff rest breaks, informal coffee breaks and small team celebrations
Recommended complementary furniturePair with additional modular curved segments to create full circular lounge groups, or add matching ottomans for flexible extra seating
Corporate reception waiting areasProvides grouped 8-person seating for visitors, with central table space for water, reading materials and sign-in devices; the enclosed back design creates a welcoming, defined lobby zone
Public institutional lounge areasSuitable for co-working spaces, campus common rooms, healthcare waiting zones and airport lounges; commercial-grade fabric and frame construction supports constant daily use
STANDARD S1

EU EN Standards

European market access and chemical requirements

EN 13761:2002Furniture - Seating for non-domestic use - Safety and strength requirements, applicable to structural load and stability testing
EN 1021-1:2014Upholstered furniture - Ignition resistance to smouldering cigarettes, applicable to fabric and foam fire performance for contract installations
EN 15372:2008Furniture - Durability of seating for non-domestic use - Test methods, applicable to cycle load testing of seats and backrests for high traffic use
STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

No standards data is available for this market.
STANDARD S3

China GB Standards

Standards applicable to China-market projects

GB/T 3324-2017General technical requirements for wooden furniture, applicable to frame, panel and structural integrity acceptance of this lounge set
GB 18584-2001Limit of harmful substances in wood furniture, applicable to formaldehyde emission testing of engineered wood substrates and adhesives
GB/T 19889.3-2005Acoustics measurement guidelines, applicable if the seating is used in open office zones requiring speech privacy performance
GB 20210-2006Fire safety requirements for upholstered furniture in public places, applicable to flame retardant performance of upholstery fabrics and foam
Standard Tender Description
This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to frame, panel and structural integrity acceptance of this lounge set;
2. GB 18584-2001: Limit of harmful substances in wood furniture, applicable to formaldehyde emission testing of engineered wood substrates and adhesives;
3. GB/T 19889.3-2005: Acoustics measurement guidelines, applicable if the seating is used in open office zones requiring speech privacy performance;
4. GB 20210-2006: Fire safety requirements for upholstered furniture in public places, applicable to flame retardant performance of upholstery fabrics and foam;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · MOD-CURV-LOUNGE-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · MOD-CURV-LOUNGE-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · MOD-CURV-LOUNGE-01Open Export Tool

Quick Actions

Post Inquiry

Product Overview & Construction Details

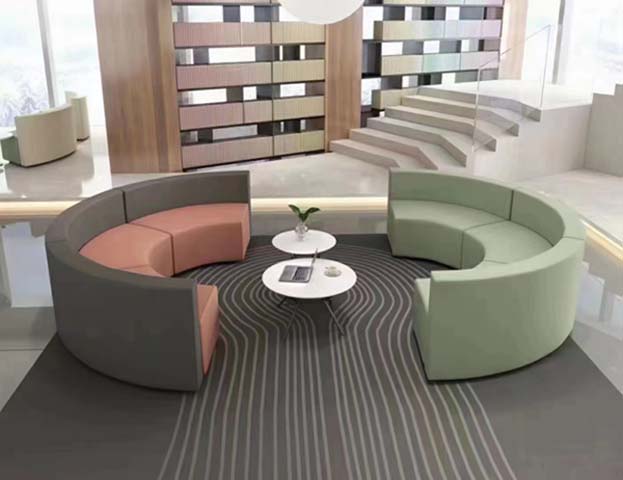

The HUIBANG MOD-CURV-LOUNGE-01 is a commercial modular lounge seating set designed to balance refined visual appeal, durable construction, and flexible functionality for high-traffic spaces. Its core form centers on a 180-degree semicircular seating arrangement pred with two nested round occasional tables, creating a cohesive, inviting lounge nook with a continuous wrapped outer back panel that delivers semi-private separation from surrounding activity. The set holds a total seating capacity of 8, formed from individual curved seat segments that connect with hidden under-seat brackets to allow reconfiguration into full circular, linear, or custom curved layouts aligned to specific floor plans. The low-profile upholstered plinth base sits flush to the floor, fitted with hard plastic glides to prevent floor scuffing and enable easy repositioning, with pre-drilled mounting points for permanent floor anchoring in high-use areas. Built for commercial longevity, the set uses woven polyester commercial upholstery with a soft two-tone finish, treated to resist pilling and rated for 50000 Martindale abrasion cycles, with reinforced 8-stitches-per-inch seams to prevent fraying. Seat cushions use high-resilience 45 kg/m³ polyurethane foam for sustned support during extended use, while back cushions use medium-density 35 kg/m³ polyurethane foam, shaped to a 10-degree fixed recline from vertical to support relaxed upright posture for casual meetings or rest. Internal frames use engineered plywood for structural support, with upholstered MDF outer enclosure panels forming the set’s signature curved silhouette. The included round tables feature scratch-resistant matte white laminate tops on powder-coated steel hrpin legs, sized to sit slightly below seat height for unobstructed access to placed items without impeding entry or exit from seats. This set is well suited for a broad range of commercial and shared residential-adjacent spaces, including corporate reception lobbies, open office informal collaboration zones, co-working common areas, campus student lounges, healthcare wting rooms, rport lounges, exhibition breakout zones, and staff break rooms. Its customizable two-tone upholstery allows specification teams to select fabric colors for seat cushions and outer panels to match existing interior design schemes, and the tight-woven fabric supports simple regular mntenance via vacuuming and spot cleaning with pH-neutral upholstery cleaners. For procurement teams, key considerations include confirming final fabric composition, core foam specifications, and detled structural material detls via official supplier bill of materials prior to final order placement, as listed material specifications draw on commercial category benchmarks. The set carries a 3-year recommended commercial warranty covering frame and upholstery defects, with an individual seat static load rating of 150 kg to support standard commercial use. The knock-down packing format supports efficient transport and on-site assembly, with modular segments designed to connect seamlessly without specialized tools, and optional add-on segments or ottomans avlable to expand seating capacity as space requirements evolve.
