ARM-FB-WD-001

Code:U756XSV1
Request supplier quotes

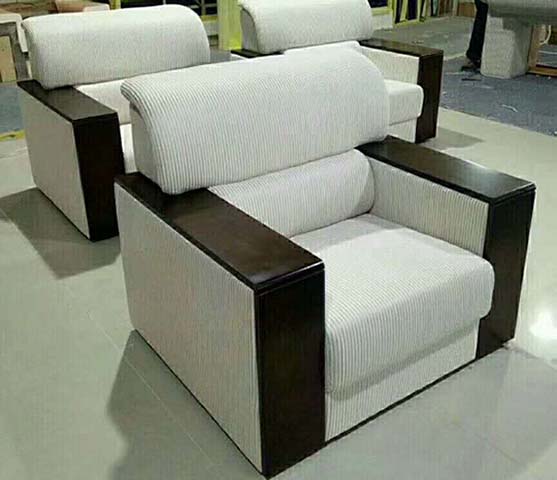

Block-Frame Single Seater Fabric Armchair With Dark Wood Arm Caps Key Specifications 2026-08-03 20:32

Popularity: 7
Parameter Correction History (Public)
SubmittedFieldOriginal修改后参数Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

ARM-FB-WD-001

1 active supplier(s) >>
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall dimensions (W x D x H)1000 x 920 x 880 mm
Seat height from floor450 mm
Seat internal usable width680 mm
Seat internal usable depth600 mm
Total seat cushion thickness180 mm
Lumbar back cushion thickness150 mm
Upper headrest/backrest thickness200 mm
Armrest height from floor620 mm
Floor clearance under seat base50 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Finished product net weight55 kg
Static seat load capacity160 kg
Seat foam density40 kg/m³
Back cushion foam density35 kg/m³
Fabric abrasion resistance (Martindale)35000 cycles
Recommended single occupancy per chair1 person
Structural frame static load durability10000 cycles
Structural frame cyclic load durability12000 cycles
Cushion foam rebound rate60%
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Upholstery fabricFine vertical rib corduroy, white/off-white color, 1.2mm thick woven pile
Arm top and side trimDark stained solid hardwood, high-gloss lacquer finish
Seat cushion fillingHigh resilience polyurethane foam wrapped with 20mm thick down-blend topper
Back cushion fillingLayered high resilience polyurethane foam with soft fibre wrap
Internal structural frameDried solid hardwood and 18mm thick multilayer plywood, corner blocked and screwed
Seat support system8mm thick sinuous steel springs with 50mm spacing, topped with polypropylene webbing
Arm inner structureSolid hardwood framing integral to chair side panels
Base upholstery layerBlack non-woven dust cover fabric attached to underside of seat base
Fabric seam stitchingMatching color polyester thread, 8 stitches per inch seam pitch
Surface finish for wood componentsHigh-gloss scratch-resistant lacquer, 0.2mm coating thickness
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Fixed position lounge seatingFully assembled non-reclining structure with no moving adjustment mechanisms, designed for static seating use
Integrated two-zone back supportDedicated separate lumbar cushion and upper back/headrest cushion to support both lower back and shoulder/head areas during seated rest
Wide flat wood armrest surfacesWide polished wood arm caps provide stable hard surface for resting arms or placing small items, with finished edge to prevent fabric snags
Low floor clearance baseFloor-hugging upholstered base with narrow 50mm clearance creates stable low-profile silhouette without visible legs
Fully upholstered side panelsFabric covered inner and outer side panels between wood arm frames create soft contact surfaces to prevent impact injury
Fixed non-removable cushionsSeat and back cushions are permanently attached to the frame to prevent shifting during daily use
Modular compatible configurationIdentical units can be grouped with matching 2-seater or 3-seater sofas from the same collection to create coordinated lounge sets
Arm block cross-section (W x D)160 x 120 mm
Floor protection featuresFelt floor protectors pre-installed on base contact points to prevent scratching hard flooring surfaces
Recline Angle / Lock Reference125° with 3 suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Height Adjustment Stroke100 mm continuous travel
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Number of shipping packages per unit1
Shipping carton dimensions (L x W x H)1080 x 1000 x 960 mm
Gross shipping weight per unit65 kg
Shipping volume per unit (CBM)1.04 CBM
On-site assembly time per unit10 minutes
20ft GP container loading quantity27 units
40ft HQ container loading quantity67 units
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Executive office reception areasFormal modern design with dark wood accents complements premium executive office environments for visitor seating
Corporate lounge waiting zonesComfortable fixed cushion design and durable contract grade construction supports high-traffic daily use by visitors and staff
Hotel lobby guest seatingBlock geometric silhouette works as standalone seating or grouped into larger lounge configurations for public hotel spaces
High-end residential living roomsCompact 1000mm width fits smaller living spaces as a statement accent chair paired with matching seating pieces
Conference breakout areas450mm seat height supports both short meetings and longer relaxed breaks for meeting attendees
Recommended complementary piecesPair with matching two-seater and three-seater sofas from the same collection, plus dark wood side tables for a coordinated seating set
Recommended complementary configurationPair with matching two-seater and three-seater sofas from the same collection, plus 450mm high dark wood side tables for a coordinated seating set
Recommended Matching Desk Size2.4 m executive desk
STANDARD S1

EU EN Standards

European market access and chemical requirements

EN 16139:2013Furniture: Strength, durability and safety requirements for non-domestic seating, applicable for contract office lounge use
EN 1021-1:2014Furniture assessment of upholstered furniture ignitability: smouldering cigarette ignition resistance requirement for public space seating
STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

No standards data is available for this market.
STANDARD S3

China GB Standards

Standards applicable to China-market projects

GB 20400-2006Leather and fur limit of harmful substances: applicable if leather elements are specified, requires testing for formaldehyde and banned azo dyes for upholstered furniture
GB 18580-2017Formaldehyde emission limits for wood-based panels: applicable for all plywood and wood panel components used in the internal frame
GB/T 3324-2017General technical requirements for wooden furniture: applicable for structural safety, dimension tolerance and surface finish quality of wood frame components
Standard Tender Description
This product must meet the following technical requirements:
1. GB 20400-2006: Leather and fur limit of harmful substances: applicable if leather elements are specified, requires testing for formaldehyde and banned azo dyes for upholstered furniture;
2. GB 18580-2017: Formaldehyde emission limits for wood-based panels: applicable for all plywood and wood panel components used in the internal frame;
3. GB/T 3324-2017: General technical requirements for wooden furniture: applicable for structural safety, dimension tolerance and surface finish quality of wood frame components;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ARM-FB-WD-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ARM-FB-WD-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ARM-FB-WD-001Open Export Tool

Quick Actions

Post Inquiry

Product Overview & Construction Details

The KERTE Block-Frame Single Seater Fabric Armchr (model ARM-FB-WD-001) is an upholstered lounge and office seating piece defined by its clean, geometric block silhouette. It features a low-profile, floor-hugging upholstered base with narrow clearance and no exposed legs, creating a streamlined, stable visual profile. Dark stned solid hardwood arm frames run the full vertical height of each side, capped with wide, flat polished surfaces that contrast sharply agnst the white/off-white fine vertical rib corduroy upholstery covering all seat, back, and side panels. Neat, matching-thread stitching defines tlored upholstery seams, while a two-zone back design separates the dedicated lower lumbar cushion from the thick upper back and headrest cushion for a structured, ergonomic appearance. Built for consistent long-term use, the chr’s internal structure combines dried solid hardwood and multilayer plywood with corner-blocked, screwed joinery, supported by sinuous steel springs and polypropylene webbing under the seat. Upholstery uses heavy contract-grade corduroy, with high-resilience foam core in seat and back cushions wrapped in a down-blend topper on the seat and soft fibre wrap on the back, tlored to balance comfort and shape retention. The dark wood arm components are finished with high-gloss scratch-resistant lacquer, and pre-installed felt protectors on base contact points prevent hard floor damage. Seat and back cushions are permanently fixed to avoid shifting, and the fully assembled static design includes no recline or adjustment mechanisms. Functionally, the chr supports single adult occupancy, with the two-zone back cushioning delivering targeted support for the lower back, upper back, and head during extended seated periods. The wide, smooth wood arm caps provide a stable surface for resting arms or placing small items, with finished edges to prevent fabric snags, while fully upholstered side panels create soft contact surfaces to reduce impact injury risk. Units are compatible with matching two-seater and three-seater sofas from the same collection, allowing flexible grouped seating layouts. This armchr suits a range of commercial and residential spaces, including executive office reception areas, corporate lounge wting zones, hotel lobbies, conference breakout areas, and high-end residential living rooms as an accent piece. Its neutral color palette and formal dark wood accents coordinate with both premium commercial interiors and modern residential design schemes, balancing polished aesthetic and approachable comfort. For procurement, note that the chr ships fully assembled in a single carton, with minimal on-site setup required beyond optional floor protector installation. Buyers should confirm exact material specifications via the supplier bill of materials before finalizing orders, and can plan bulk shipments using standard contner loading capacities for large fit-out projects. Matching series seating and dark wood side tables are recommended for coordinated space design.
