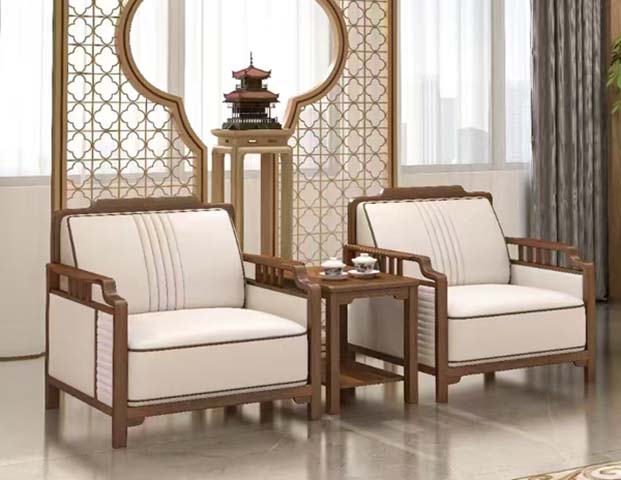

New Chinese Style Solid Wood Frame Upholstered Armchair with Matching Side Table (3-Piece Reception Set) - Dimensions

Submitted	Field	Original	修改后参数	Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall single armchair dimensions	880 x 820 x 920 mm
Seat height from floor	450 mm
Seat cushion usable dimensions	600 x 650 mm
Seat cushion total thickness	120 mm
Backrest total height from seat surface	470 mm
Armrest height from seat surface	220 mm
Armrest cross-section width	60 mm
Matching side table dimensions	600 x 600 x 600 mm
Side table lower shelf clearance	200 mm
Front leg cross-section	50 x 50 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Single armchair net weight	38 kg
Single chair static seat load capacity	150 kg
Seat foam density	40 kg/m³
Foam rebound rate	55%
Fabric abrasion resistance (Martindale)	30000 cycles
Recommended number of users per chair	1 person
Seam tensile strength	120 N
Floor pad compression set resistance	25%
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Primary load-bearing frame	Walnut-finish solid hardwood, traditional mortise and tenon joinery
Seat cushion core	High-density polyurethane foam, wrapped with soft polyester fiber top layer
Backrest cushion core	Medium-density polyurethane foam, vertical channel quilting on front face
Outer upholstery fabric	Off-white matte linen-blend performance fabric, dark contrast piping along all cushion edges
Side panel upholstery	Same off-white fabric as main cushions, vertical pleated detail on inner side panel
Armrest slats	Solid wood matching frame finish, 5 vertical slats per open armrest section
Matching side table top	Solid wood same as chair frame, rounded edge profiling
Side table lower shelf	Solid wood slatted shelf for open storage
Frame foot pads	Non-slip rubber floor protection pads fitted to bottom of all legs
Upholstery stitching	Dark high-tensile polyester thread, 8 mm stitch pitch
Top armrest rail	Curved solid wood matching frame finish, rounded edge profiling for forearm comfort
Seat support base	80 mm wide elastic polyester webbing, spaced 60 mm apart across the seat frame

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Seat support function	Fixed webbing-supported cushion base, no tilt or swivel mechanism, provides stable upright posture for formal reception use
Cushion serviceability	Loose seat and back cushions allow removable cover for cleaning or replacement
Armrest function	Curved solid wood armrests support full forearm rest, open slatted design reduces visual weight for traditional style
Back support function	Angled fixed backrest aligns with natural spine curve, vertical channel stitching prevents foam shifting
Matching side table function	Level top surface holds tea service, decor or small items; lower open shelf provides additional accessible storage
Floor protection function	Rubber foot pads eliminate hard contact between wood legs and hard flooring, prevent scratches and reduce movement noise
Armrest support function	Curved profiled solid wood armrests support 75 kg vertical forearm load, open slatted design reduces visual weight for new Chinese style aesthetics
Edge safety function	All exposed wood frame edges feature 10 mm radius rounded profiling to eliminate sharp contact points for users
Recline Angle / Lock Reference	125° with 3 suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Number of packages per 3-piece set (2 chairs + 1 table)	3 packages
Single armchair shipping carton dimensions	920 x 860 x 700 mm
Side table shipping carton dimensions	640 x 640 x 640 mm
Total gross weight per 3-piece set	100 kg
Total CBM per 3-piece set	0.82 m³
Assembly time per set	30 minutes
40HQ container loading quantity	85 sets
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

New Chinese style residential living rooms	Pairs with matching sofas and coffee tables for coordinated formal living room seating for family and guests
High-end commercial reception areas	Suitable for executive office lobbies, tea rooms and VIP reception spaces, creates professional yet welcoming atmosphere
Boutique hotel guest rooms and lounge areas	Provides elegant, culturally themed seating for hospitality spaces, durable upholstery withstands frequent guest use
Tea house and cultural venue seating	Fits traditional Chinese tea service spaces, appropriate scale for side-by-side tea tasting and conversation
Recommended configuration	Set of two armchairs with matching side table for corner seating, or combine with 3-seat sofa from same collection for full living room set
Private study or reading nooks	Suitable for home office or study placement, 15 degree backrest angle supports extended upright reading posture without excessive recline
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU EN Standards

European market access and chemical requirements

EN 12520:2015	Furniture - Strength, durability and safety - Requirements for domestic seating, applicable for structural load and safety verification for residential use
EN 1022:2018	Furniture - Seating - Determination of stability, applicable to verify anti-tip performance of the fixed armchair
EN 13722:2004	Furniture - Upholstered furniture - Test methods for assessment of ignitability of mattresses and upholstered seating, applicable for fabric fire safety verification for commercial spaces

STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

No standards data is available for this market.

STANDARD S3

China GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable for frame strength, dimensional stability and surface finish quality inspection
GB 18584-2001	Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture, mandatory formaldehyde emission limit for finished wooden seating
GB/T 1952.1-2012	Upholstered furniture - Sofas, applicable for seat durability, foam performance and upholstery seam strength testing
GB/T 17597-1998	Furniture - Determination of surface resistance to cold liquids, applicable to verify wood finish resistance to tea and common beverage spills

Standard Tender Description

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for frame strength, dimensional stability and surface finish quality inspection;
2. GB 18584-2001: Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture, mandatory formaldehyde emission limit for finished wooden seating;
3. GB/T 1952.1-2012: Upholstered furniture - Sofas, applicable for seat durability, foam performance and upholstery seam strength testing;
4. GB/T 17597-1998: Furniture - Determination of surface resistance to cold liquids, applicable to verify wood finish resistance to tea and common beverage spills;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
