PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	800 × 450 × 630 mm
Worktop thickness	6 mm
Caster diameter	50 mm
Open shelf compartment width	400 mm
Upper open shelf internal height	250 mm
Lower open shelf internal height	320 mm
Slatted door compartment width	400 mm
Slatted door compartment internal height	570 mm
Side panel thickness	18 mm
Metal frame profile width	20 mm
Slat bar width	15 mm
Internal shelf thickness	15 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Worktop static load capacity	50 kg
Caster dynamic load rating per wheel	30 kg
Stone worktop heat resistance	180 °C
Worktop surface abrasion resistance	6000 cycles
Recommended maximum user weight for top seating use	0 kg
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points
Recommended Procurement Warranty	Carcass 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop	6mm thick sintered stone with dark speckled textured finish
Structural frame	Brushed gunmetal gray aluminum extrusion with anodized anti-rust coating
Side panels	18mm thick dark gray honeycomb-textured engineered composite panel
Sliding door	Vertical brushed metal slats with 10mm ventilation gaps between bars
Internal shelves	15mm thick dark gray laminated engineered wood, height-adjustable with metal pins
Caster wheels	50mm diameter 360° swivel polyurethane casters, two with locking brakes
Door sliding track	Galvanized steel top and bottom track for smooth door operation
Interior back panel	3mm thick dark gray hardboard backing
Edge banding	1mm thick PVC edge sealing on all engineered wood panels
Edge Band Thickness	2 mm
Primary Connector Specification	Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Mobility function	Four 360° swivel casters, two with locking brakes, for easy repositioning between tea service areas
Open shelving storage	Two-tier left open compartment with adjustable shelf heights, sized for teapots and tea canisters
Tall item storage	Full-height right slatted-door compartment, ventilated for upright bottled water or waste water buckets
Door operation	Horizontal sliding metal slat door with quiet glide track, no protruding handle for flush exterior
Worktop use	Heat-resistant scratch-proof stone surface sized for electric kettle, sterilizer and tea prep tools
Shelf adjustment	5-position adjustable shelf pin holes allow 30mm incremental height changes for stored items
Ventilation function	Slatted door gaps provide passive air circulation to prevent moisture buildup in closed storage
Anti-tip safety	Included wall anchor strap secures cabinet to wall to prevent tipping when fully loaded
Cable / Vent Opening Reference	If fitted, 80 mm diameter

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Living room application	Placed beside sofa or coffee table for convenient kung fu tea service setup
Home tea room application	Used as compact dedicated tea storage unit for teaware and water supply
Office lounge application	Deployed in staff break areas for tea and coffee preparation station
Balcony application	Positioned on covered balconies for casual outdoor tea preparation, mobile for repositioning
Studio/study application	Used as side storage next to a desk for tea supplies and small beverage equipment

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Furniture stability	EN 14749:2016
Caster performance	EN 12529:1999
Surface scratch resistance	EN 15186:2012

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Cabinet structural safety	GB/T 3324
Stone surface performance	GB/T 3810.1
Metal coating adhesion	GB/T 9286
Hardware durability	GB/T 10357.5

Standardized tender description text

This product must meet the following technical requirements:
1. Cabinet structural safety: GB/T 3324;
2. Stone surface performance: GB/T 3810.1;
3. Metal coating adhesion: GB/T 9286;
4. Hardware durability: GB/T 10357.5;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · MTSC-800S460H630

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · MTSC-800S460H630

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · MTSC-800S460H630Open Export Tool

Quick Actions

Post an RFQ

Product Description

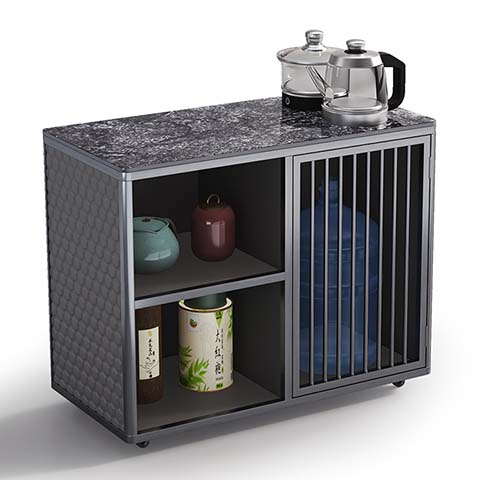

The Industrial Mobile Tea Storage Side Cabinet with Stone Worktop is a purpose-built storage unit designed for dedicated tea service and small beverage preparation, balancing industrial aesthetic cues with functional everyday utility. Visually, the piece features a cohesive dark, textured palette, with a split-compartment layout that pairs an open two-tier storage section on one side with a flush, slatted sliding door compartment on the other, all framed by smooth brushed gunmetal gray structural elements that deliver a streamlined, uncluttered silhouette with no protruding hardware. Its slim profile fits unobtrusively alongside existing seating or work surfaces without overwhelming surrounding decor. The cabinet is constructed for long-term regular use, with a 6mm thick sintered stone worktop finished in a dark speckled texture, supported by an anodized, anti-rust coated brushed aluminum frame. Side panels are made of thick honeycomb-textured dark gray engineered composite, with PVC edge sealing on all engineered wood components to resist edge wear. The sliding door uses vertical brushed metal slats with evenly spaced gaps, gliding on galvanized steel top and bottom tracks for quiet operation, while internal shelves are crafted from laminated engineered wood, adjustable via metal pins set in pre-positioned holes. The unit sits on 360-degree swivel polyurethane casters, two fitted with locking brakes to hold the cabinet securely in place when in use. Functionally, the cabinet is tailored for tea service workflows: the heat and abrasion-resistant stone worktop supports kettles, sterilizers, and tea prep tools, while the adjustable open shelving accommodates teapots, tea canisters, and other small accessories, with customizable height positions to fit items of varying sizes. The enclosed slatted-door compartment offers full-height storage for upright bottled water or waste water buckets, with passive air circulation through slat gaps to prevent moisture buildup inside closed storage. The casters allow easy repositioning between service zones as needed. This cabinet works well across both residential and commercial spaces: it fits beside living room sofas or coffee tables for kung fu tea setups, serves as compact dedicated storage in home tea rooms, acts as a tea and coffee preparation station in office staff lounges, works as casual outdoor tea prep storage on covered balconies, and functions as desk-adjacent side storage in studios or studies for beverage supplies and small equipment. For procurement, note that each unit ships across multiple cartons, requires roughly 40 minutes of assembly per set, and is not rated for seating use on the worktop. Consider available floor space to accommodate its footprint, and confirm access to the intended placement area before delivery, given the packaged unit’s total volume and weight. The unbranded design allows seamless integration with a range of existing interior styles without clashing with branded decor schemes.
