PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	800 × 800 × 720 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total set weight	32 kg
Table static load capacity	100 kg
Seating capacity	4 adults
Slat gap drainage capacity	100%
Outdoor UV resistance lifespan	3 years
Surface corrosion resistance	Grade 4
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles
Recommended Procurement Warranty	Structure 5 years; hardware 3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Table and chair frame	1.2mm thick powder-coated carbon steel tubing
Table top slats	12mm thick weather-resistant HDPE composite
Chair seat slats	10mm thick HDPE composite
Chair backrest slats	10mm thick HDPE composite
Chair armrests	Curved 25mm diameter powder-coated steel tubing
Foot pads	8mm thick non-slip polyethylene glides
Frame hardware	Stainless steel 304 bolts and nuts
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Center umbrella mount	50mm through-hole accommodates standard patio umbrella poles
All-weather drainage	8mm gaps between slats drain rainwater without pooling
Stackable chair storage	Chairs nest vertically for off-season space saving
Fixed non-swivel seating	Chairs have rigid welded frame with no recline or rotation
Scratch-resistant surface	Textured HDPE slats resist scuffs from tableware and outdoor use
Quick assembly design	Knock-down construction uses 8 bolts per chair and 4 for table base
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential patio dining	Suitable for back decks and porches for 4-person casual meals
Balcony bistro use	Fits small urban balconies with 800mm table footprint
Cafe outdoor seating	Appropriate for small commercial sidewalk dining areas
Garden entertainment	Ideal for backyard gatherings and casual outdoor tea service
Poolside lounge dining	Corrosion-resistant materials resist chlorinated water splash damage

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Outdoor furniture mechanical safety	EN 581:2017
Outdoor seating stability	EN 581:2019
Outdoor table performance	EN 581:2019

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Outdoor furniture structural safety	GB 28478
Metal furniture coating adhesion	GB/T 1979
HDPE outdoor material UV stability	GB/T 16422.3

Standardized tender description text

This product must meet the following technical requirements:
1. Outdoor furniture structural safety: GB 28478;
2. Metal furniture coating adhesion: GB/T 1979;
3. HDPE outdoor material UV stability: GB/T 16422.3;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OD-RD80-4C-BLK

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OD-RD80-4C-BLK

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OD-RD80-4C-BLKOpen Export Tool

Quick Actions

Post an RFQ

Product Description

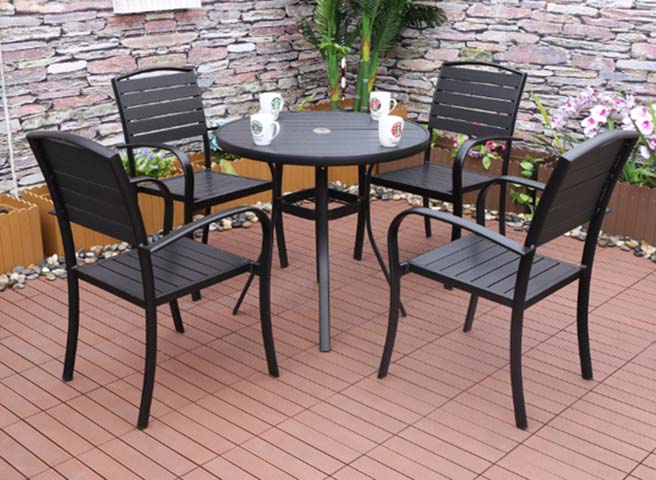

This unbranded 5-piece weather-resistant outdoor patio dining set, model OD-RD80C-BLK, delivers a streamlined, functional layout tailored for relaxed outdoor dining for four adults. The set pairs a slatted-top dining table with four matching fixed-seat chairs, featuring clean, linear profiles balanced by gently curved armrests for approachable visual appeal. The 800mm table footprint creates a compact footprint that fits neatly in tight outdoor spaces without sacrificing usable table surface area, while slatted surfaces create an open, airy visual weight suited to casual outdoor environments. Constructed for consistent outdoor exposure, the set uses a powder-coated carbon steel frame built from 1.2mm thick tubing, with 25mm diameter curved powder-coated steel armrests and 8mm thick non-slip polyethylene foot glides to protect underlying surfaces. Table tops use 12mm thick weather-resistant HDPE composite slats, while chair seats and backrests use 10mm thick HDPE composite slats; all slats are secured with 304 stainless steel bolts and nuts, with at least two fixing points at every major frame joint. Primary structural components are sized to 40mm thickness matched to load-bearing requirements, with 5mm operating clearance for all hardware and moving parts. The build achieves Grade 4 surface corrosion resistance, 100% slat gap drainage, and a 3-year UV resistance lifespan, with textured HDPE surfaces that resist scuffs from regular outdoor use. Practical features support seamless all-weather use: a 50mm center through-hole on the table accommodates standard patio umbrella poles, while 8mm gaps between slats fully drain rainwater to prevent pooling. The four rigid, non-swivel, non-reclining chairs stack vertically for compact off-season storage, and the knock-down assembly design requires 8 bolts per chair and 4 bolts for the table base, with a typical assembly time of 40 minutes per set. The table supports a 100kg static load, with textured slat surfaces that resist scratches from tableware and regular outdoor activity. The set is suited for a wide range of outdoor settings, including residential back decks and porches for casual family meals, small urban balconies for bistro-style use, small commercial sidewalk cafe seating zones, backyard garden gatherings for casual tea or light entertaining, and poolside dining areas where corrosion-resistant materials withstand chlorinated water splash exposure. Procurement teams and individual buyers should note the set ships in two cartons per unit, with six recommended finish options available to match existing outdoor decor. Buyers should plan for appropriate delivery handling given the packaged gross weight, and confirm assembly hardware is fully included at delivery to support straightforward setup.

5-Piece Weather-Resistant Outdoor Patio Dining Set Specifications
