Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 533 x 533 x 559 mm | |
|---|---|---|
| Tabletop diameter | 533 mm | |
| Tabletop edge rim width | 25 mm | |
| Glass tabletop thickness | 8 mm | |
| Tubular leg outer diameter | 22 mm | |
| Central support column diameter | 100 mm | |
| Lower support ring height above floor | 280 mm | |
| Upper support ring height below tabletop | 80 mm | |
| Leg footprint diameter at floor | 510 mm | |
| Foot pad diameter | 22 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
| Static tabletop load capacity | 45 kg | |
|---|---|---|
| Net product weight | 7.3 kg | |
| Frame rust resistance rating | 500 hours salt spray | |
| Powder coating UV fade resistance | 2 years outdoor exposure | |
| Tempered glass impact resistance | 1020 g steel ball drop from 1m | |
| Leveling adjustment range per foot | 10 mm | |
| Recommended maximum place setting count | 1 | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery

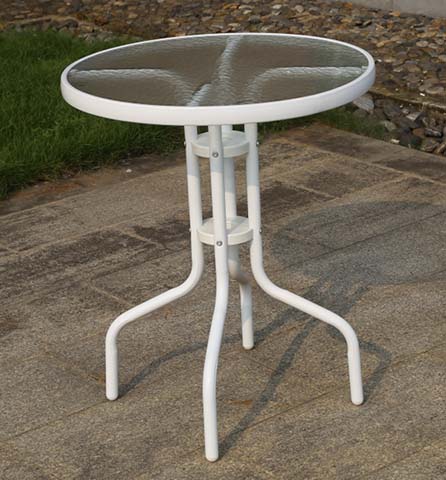

| Tabletop panel | 533mm diameter clear tempered safety glass | |
|---|---|---|
| Tabletop perimeter rim | 25mm wide white powder-coated rolled steel | |
| Leg assembly | 22mm diameter white powder-coated steel tubing | |
| Horizontal support rings | 16mm diameter white powder-coated steel tubing | |
| Central support column | Clustered vertical steel tube assembly with white powder coat | |
| Hardware fasteners | Zinc-plated steel cross-head bolts | |
| Foot pads | Non-marking black polypropylene protective glides | |
| Frame surface finish | Smooth matte white polyester powder coating | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features
| Surface function | Flat stable round top for holding drinks, small planters or outdoor accessories | |
|---|---|---|
| Structural stability | Four splayed legs with dual circular cross-braces resist tipping on level surfaces | |
| Surface leveling | Individual non-marking feet adjust to compensate for uneven patio or deck surfaces | |
| Weather performance | Powder-coated frame resists rust, chipping and UV fading for uncovered outdoor use | |
| Cleaning access | Smooth glass and coated metal surfaces wipe clean with damp cloth, no crevices trapping debris | |
| Assembly requirement | Knock-down assembly with included hardware, no specialized tools required | |
| Glass retention | Rolled steel rim fully contains glass edge to prevent shifting during use | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
| Residential patio use | Position between two outdoor lounge chairs for drink and snack service | |
|---|---|---|
| Balcony application | Small footprint works for narrow apartment balconies as a plant or accent table | |
| Garden side placement | Place adjacent to outdoor seating areas or garden paths for decorative accessory display | |
| Poolside use | Rust-resistant frame and waterproof glass top withstand occasional pool splash exposure | |
| Small bistro accent use | Pair with two compact outdoor stools for ultra-small casual dining spaces | |
| Commercial outdoor seating use | Suitable for cafe patio side stations for condiments or guest personal items |
EU Market Access Requirements* EN Standards
| EN 581-1:2017 | Safety requirements applicable to outdoor residential patio seating and tables | |
|---|---|---|
| EN 12150-1:2015 | Specification applicable to thermally toughened soda lime silicate safety glass for furniture | |
| EN 10245-2:2011 | Requirements applicable to organic powder coatings on steel wire/tube outdoor furniture |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements applicable to metal outdoor furniture stability and safety | |
|---|---|---|
| GB 15763.2-2005 | Safety requirements applicable to tempered glass used in furniture table tops | |
| GB/T 17657-2013 | Test methods applicable to surface finish durability of coated metal furniture |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements applicable to metal outdoor furniture stability and safety; 2. GB 15763.2-2005: Safety requirements applicable to tempered glass used in furniture table tops; 3. GB/T 17657-2013: Test methods applicable to surface finish durability of coated metal furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
