PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	700 × 700 × 750 mm
Overall table dimensions	700 x 700 x 750 mm
Under-table knee clearance height	660 mm
Chair seat height from floor	430 mm
Chair seat usable dimensions	450 x 420 mm
Chair armrest height from floor	640 mm
Chair backrest total height	370 mm
Faux wood slat thickness	35 mm
Metal frame leg wall thickness	1.2 mm
Slat gap width between adjacent slats	8 mm
Table leg footprint spread	640 x 640 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Single chair static load capacity	136 kg
Total set net weight	44 kg
Stackable chair storage capacity	8 chairs high
Surface weather resistance rating	Waterproof, UV-stabilized, anti-mildew
Metal frame corrosion resistance	500 hours salt spray resistance
Faux wood slat wear cycle rating	10000 abrasion cycles
Anti-slip foot pad static friction coefficient	0.6
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles
Recommended Procurement Warranty	Structure 5 years; hardware 3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Table and chair frame	1.2mm thick powder-coated black steel
Tabletop slats	High-density PE faux wood (wood-plastic composite)
Chair seat slats	Matching high-density PE faux wood
Chair back and armrests	Curved welded powder-coated steel tube
Frame connection hardware	Zinc-plated steel bolts and nuts
Chair foot pads	Molded rubber anti-slip, anti-scratch glides
Frame surface finish	Electrostatic powder coat, matte black
Slat edge treatment	Rounded, deburred smooth edges
Hardware fastener covers	Matching black plastic caps
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Drainage design	8mm gaps between slats allow rainwater runoff
Assembly requirement	Knock-down flat-pack assembly with included hardware
Chair stacking function	Chairs stack vertically up to 8 units high
Surface cleaning compatibility	Wipe-clean with mild detergent and water
Floor protection function	Rubber foot pads prevent scratches on stone, tile and wood deck surfaces
Frame joint construction	Welded frame joints with reinforced gussets at leg-seat connections
Color option availability	2 standard finish combinations available
Outdoor suitability	All-weather construction suitable for year-round exterior use
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential patio use	Suitable for backyard, balcony or terrace casual dining for 4 adults
Commercial café use	Ideal for sidewalk café, bistro or beer garden outdoor seating
Event rental use	Stackable design supports easy transport and storage for temporary events
Recommended surface placement	Suitable for paved stone, concrete tile, wood deck and composite deck surfaces
Climate suitability	Appropriate for temperate, subtropical and coastal regions with regular rainfall
Matching accessory recommendation	Pairs with 40mm diameter standalone outdoor patio umbrellas for shade

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 581-1:2017	Outdoor furniture safety requirements for seating and tables for domestic use
EN 581-2:2019	Mechanical safety requirements for outdoor seating, applicable to chair load and stability
EN 581-3:2017	Mechanical safety requirements for outdoor tables, applicable to table load and stability

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for metal furniture, applicable to frame structural integrity
GB/T 28007-2011	Outdoor furniture performance requirements, applicable to weather resistance and stability
GB 18584-2001	Formaldehyde emission limits for furniture, applicable to composite slat material safety

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for metal furniture, applicable to frame structural integrity;
2. GB/T 28007-2011: Outdoor furniture performance requirements, applicable to weather resistance and stability;
3. GB 18584-2001: Formaldehyde emission limits for furniture, applicable to composite slat material safety;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OD-SET-4S-700SQ-MW

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OD-SET-4S-700SQ-MW

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OD-SET-4S-700SQ-MWOpen Export Tool

Quick Actions

Post an RFQ

Product Description

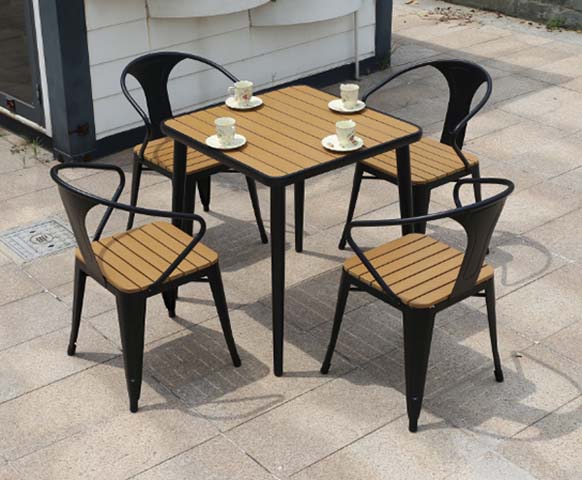

This 4-seater outdoor patio dining set features a clean, industrial slatted design defined by its matte black metal framework and high-density faux wood surfaces, creating a balanced, functional visual profile suited to open-air settings. The square table sits at standard dining height, paired with four matching chairs, where armrests, backrests and structural frames present a consistent sleek black finish, contrasted by the warm, wood-like tone of slatted tabletop and seat surfaces. Eight-millimeter gaps between all slats create an open, linear visual rhythm across seating and table areas. The set is built for long-term outdoor use, with a 1.2mm thick powder-coated black steel frame constructed with welded joints reinforced by gussets at leg-seat connections, held together by zinc-plated steel bolts and nuts capped with matching black plastic covers for a seamless look. Tabletops, chair seats use high-density PE wood-plastic composite faux wood slats with rounded, deburred smooth edges, while chair backrests and armrests are formed from curved welded powder-coated steel tubing. Molded rubber anti-slip, anti-scratch glides are fitted to each chair leg. The set supports practical casual dining for four adults, with slat gaps engineered to allow rainwater runoff to prevent standing water. Chairs stack vertically for compact storage, cutting down required space when not in use. Surfaces are easily maintained by wiping clean with mild detergent and water, and the rubber foot pads prevent scratches to stone, tile, wood and composite deck surfaces. For residential settings, the set fits backyard, balcony and terrace spaces for everyday casual outdoor meals. It also works well for commercial sidewalk cafes, bistros and beer gardens, and is suited to event rental use thanks to its stackable design that simplifies transport and storage for temporary installations. It performs reliably in temperate, subtropical and coastal regions with regular rainfall, and pairs well with standard standalone outdoor patio umbrellas for added shade. Procurement teams should note the set ships as flat-pack in two cartons, with all required hardware included for assembly; there are two standard finish combinations available to coordinate with existing space palettes. The frames deliver corrosion resistance for outdoor exposure, while faux wood surfaces hold up to regular use with stable wear resistance, and the waterproof, UV-stabilized, anti-mildew slat finish reduces long-term maintenance needs for high-traffic open-air sites.

5-Piece Black Metal Frame Faux Wood Slat Outdoor Patio Dining Set Specifications
