PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1000 × 1000 × 750 mm
Overall set footprint	1000 x 1000 x 970 mm
Round table dimensions	900 mm diameter x 750 mm height
Chair seat height	450 mm
Chair seat diameter	420 mm
Chair backrest height	520 mm
Table base spread diameter	720 mm
Umbrella hole diameter	51 mm
Table rim width	60 mm
Leg floor contact pad diameter	30 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total set net weight	70 kg
Per chair static load capacity	180 kg
Powder coat salt spray resistance	1000 hours
Coating UV fade resistance	5 years
Seating capacity	4 people
Leveling adjustment range per foot	10 mm
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles
Recommended Procurement Warranty	Structure 5 years; hardware 3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Table and chair frame	Die-cast aluminum alloy, fully welded construction
Tabletop inlay	Ceramic porcelain tile, geometric lattice pattern
Table rim and base	Cast aluminum with antique bronze hand-brushed finish
Surface finish	High-temperature baked electrostatic powder coat
Chair seat and back	Pierced cast aluminum lattice and scroll filigree
Chair legs	Cast aluminum cabriole-style curved legs with decorative joinery
Foot pads	Non-slip, anti-scratch rubber pads
Frame wall thickness	4 mm
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Center umbrella compatibility	Removable cover fits 51mm diameter patio umbrella poles
Surface water drainage	Pierced chair lattice and grouted tile gaps drain rainwater
Uneven surface adjustment	Threaded leveler feet adjust up to 10mm to stabilize on sloped patios
Year-round outdoor use	Powder-coated aluminum resists rust, fading, mold and salt spray
Low-maintenance cleaning	Smooth powder coat and glazed tile wipe clean with damp cloth
Seat ergonomics	Contoured cast seat and curved scroll back support upright dining posture
Structural joint design	Fully welded cast joints eliminate loose fastener failure risk
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential patio and garden dining	4-person seating for backyard meals, tea service and casual outdoor gatherings
Villa courtyard and balcony use	Ornate antique bronze finish complements traditional and classic landscape design
Commercial outdoor seating	Weather-resistant construction suitable for cafes, bistro patios and resort terraces
Poolside dining areas	Rust-proof aluminum and glazed tile tolerate chlorinated water splash and humidity
Balcony small-space dining	900mm round diameter fits compact outdoor living spaces without excess footprint
Year-round exterior installation	UV and rust resistant finish eliminates need for seasonal indoor storage

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 581-1:2017	Outdoor furniture seating and table safety requirements for residential patio use
EN 581-2:2019	Mechanical safety test methods for outdoor seating structural strength
EN 581-3:2019	Mechanical safety test methods for outdoor table structural stability

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for metal furniture, applicable to frame structural strength
GB/T 17657-2013	Surface coating performance test methods for furniture finish durability verification
GB 28007-2011	Safety requirements for children's furniture if used in family patio settings

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for metal furniture, applicable to frame structural strength;
2. GB/T 17657-2013: Surface coating performance test methods for furniture finish durability verification;
3. GB 28007-2011: Safety requirements for children's furniture if used in family patio settings;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OD-CA-5PC-TILE-900

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OD-CA-5PC-TILE-900

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OD-CA-5PC-TILE-900Open Export Tool

Quick Actions

Post an RFQ

Product Description

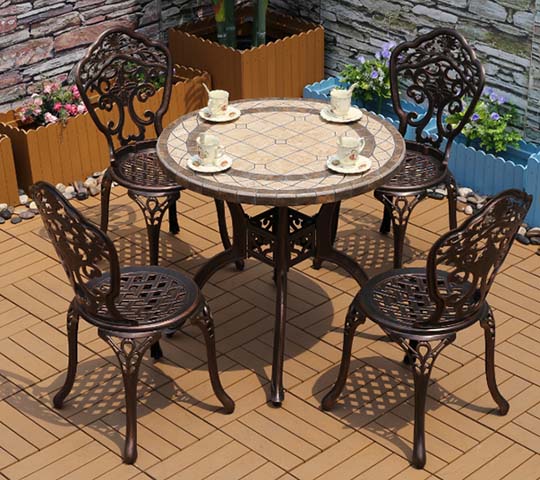

This 5-piece antique bronze cast aluminum outdoor patio round dining set delivers classic, ornate styling paired with durable, weather-ready construction for casual and formal outdoor dining use. The set features a cohesive bistro-scale layout anchored by a 900mm diameter round table, paired with four matching chairs, occupying a compact 1000 x 1000 x 970 mm overall footprint suited to small outdoor spaces. Its visual design draws on traditional decorative motifs: chair seats and backs display pierced cast aluminum lattice and scroll filigree, supported by cabriole-style curved legs with decorative joinery, while the table’s cast aluminum rim and base carry a hand-brushed antique bronze finish. The tabletop centers a geometric lattice ceramic porcelain tile inlay, creating a refined, coordinated aesthetic that complements classic landscape and architectural styles. Fully welded die-cast aluminum alloy frames form the structural core of both table and chairs, with 4mm frame wall thickness and high-temperature baked electrostatic powder coating across all metal surfaces. This coating delivers 1000 hours of salt spray resistance and 5 years of UV fade protection, guarding against rust, mold, and surface degradation. The glazed ceramic tile tabletop holds a 51mm center umbrella hole with a removable cover to fit standard patio umbrella poles. Non-slip, anti-scratch rubber foot pads sit beneath each leg, with integrated threaded levelers that adjust 10mm to stabilize the set on sloped or uneven patio surfaces. Pierced chair filigree and grouted tile gaps allow quick rainwater drainage, eliminating standing water after precipitation, while the smooth powder coat and glazed tile surfaces wipe clean easily with a damp cloth for low-maintenance upkeep. Each contoured cast aluminum seat sits 450mm high, paired with a curved scroll backrest 520mm tall to support upright, comfortable dining posture, and each chair supports a 180kg static load. This 4-person seating set fits a wide range of spaces, including residential backyards, villa courtyards, compact balconies, poolside areas, and commercial cafe, bistro, or resort terraces, with rust-proof materials that tolerate chlorinated water splash, humidity, and year-round outdoor placement without requiring seasonal indoor storage. For procurement, note that each set ships in 2 cartons, with a packaged gross weight of 120 kg, requires 40 minutes of on-site assembly, and uses M6-M10 connectors with a minimum of 2 fixing points at all major structural joints.

5-Piece Antique Bronze Cast Aluminum Outdoor Patio Round Dining Set with Ceramic Tile Tabletop Specifications
