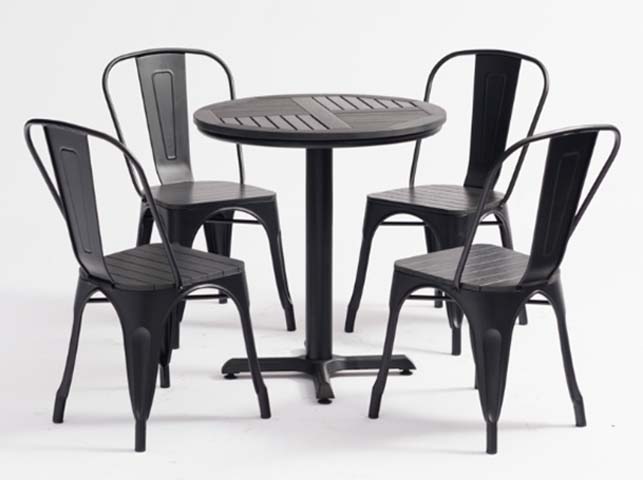

Product supplier5-Piece Industrial Metal Slatted Bistro Dining Set, Powder-coated steel slats, matte black finish
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1070 × 1070 × 750 mm | |
|---|---|---|
| Overall set footprint | 2200 x 2200 x 850 mm | |
| Table central pedestal column diameter | 89 mm | |
| Table cross base span | 780 mm | |
| Table slat thickness | 25 mm | |
| Chair seat height | 460 mm | |
| Chair seat dimensions | 360 x 360 mm | |
| Chair backrest height above seat | 390 mm | |
| Knee clearance under table | 680 mm | |
| Leg splay span per chair | 440 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total set net weight | 50 kg | |
|---|---|---|
| Single chair static load capacity | 136 kg | |
| Chair stack height for 4 units | 1200 mm | |
| Leveling glide adjustment range | 10 mm | |
| Recommended seating capacity | 4 people | |
| Frame powder coat scratch resistance | 1000 cycles | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Table top slats | Powder-coated steel slats, matte black finish | |
|---|---|---|
| Table pedestal column | 2mm thick steel tubular column, matte black powder coat | |
| Table cross base | 3mm thick pressed steel cross foot, black finish | |
| Leveling glides | Nylon base with threaded steel insert | |
| Chair frame and legs | 1.2mm thick stamped steel, matte black powder coat | |
| Chair seat slats | Pressed steel slatted seat, matching black finish | |
| Chair backrest | Stamped steel panel with curved tubular top rail | |
| Chair under-seat bracing | Steel cross X-brace welded under seat | |
| Chair leg floor caps | Injection-molded plastic end caps | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Table 360-degree legroom access | Central pedestal design eliminates corner legs | |
|---|---|---|
| Chair stackable storage | Chairs nest vertically when not in use | |
| Floor leveling adjustment | Threaded glides on table base turn to adjust height | |
| Floor scratch protection | Plastic caps on all chair and table feet | |
| Weather-resistant surface drainage | Slatted gaps on table and seats allow water runoff | |
| Wipe-clean maintenance | Smooth powder-coated surfaces wipe clean with damp cloth | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Cafe and bistro seating | Compact 4-seat layout for small food service venues | |
|---|---|---|
| Small apartment dining nook | Space-saving footprint for compact residential kitchens | |
| Covered outdoor patio seating | Weather-resistant slatted surfaces for semi-outdoor use | |
| Breakroom seating | Durable stackable design for office break rooms | |
| Pop-up event seating | Lightweight stackable set for temporary event setups |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Outdoor furniture structural stability | EN 581:2017 | |
|---|---|---|
| Metal furniture mechanical strength | EN 15372:2016 |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Metal furniture structural safety | GB/T 3324 | |
|---|---|---|
| Furniture surface coating safety | GB 18584 |
Standardized tender description text
This product must meet the following technical requirements: 1. Metal furniture structural safety: GB/T 3324; 2. Furniture surface coating safety: GB 18584; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
