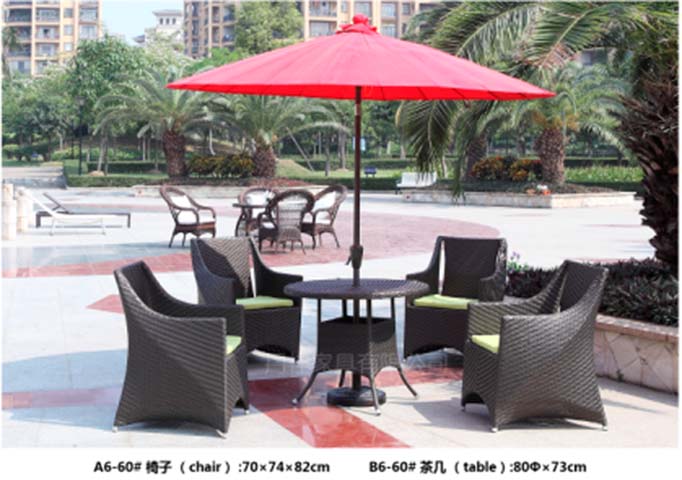

Product supplier5-Piece Weather-Resistant Wicker Outdoor Patio Dining Set with Umbrella, All-weather dark brown PE synthetic rattan, 8mm wide flat weave
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 800 × 800 × 730 mm | |
|---|---|---|
| Overall set footprint for layout planning | 2600 x 2600 mm | |
| Round dining table dimensions | 800 mm diameter x 730 mm H | |
| Single armchair dimensions | 700 mm W x 740 mm D x 820 mm H | |
| Seat height from ground to cushion top | 460 mm | |
| Seat cushion dimensions per chair | 480 mm W x 450 mm D x 50 mm T | |
| Backrest height above seat surface | 360 mm | |
| Integrated armrest height above ground | 650 mm | |
| Table central umbrella hole diameter | 50 mm | |
| Under-table knee clearance height | 680 mm | |
| Included patio umbrella canopy diameter | 2700 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Weight capacity per dining chair | 120 kg | |
|---|---|---|
| Static weight capacity of round table top | 75 kg | |
| Seating capacity for standard dining use | 4 people | |
| Cushion fabric UV resistance rating | 500 hours | |
| Frame rust resistance service life | 3 years | |
| Total set net weight for shipping calculation | 55 kg | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Chair and table woven exterior | All-weather dark brown PE synthetic rattan, 8mm wide flat weave | |
|---|---|---|
| Internal support frame for chairs and table | 1.2mm thick powder-coated carbon steel tubing | |
| Seat cushion padding | 30kg/m³ density polyurethane outdoor foam | |
| Seat cushion outer cover | 280g/m² solution-dyed polyester fabric with water-repellent coating | |
| Chair leg floor glides | Hard nylon non-scuff 20mm diameter glide pads | |
| Table base legs | Curved splayed powder-coated steel legs with cross-bracing | |
| Patio umbrella canopy | 220g/m² water-resistant red polyester fabric | |
| Umbrella center pole | 38mm diameter black powder-coated steel pole | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Central table umbrella mount | Through-hole design fits standard 38mm patio umbrella poles | |
|---|---|---|
| Cushion cover maintenance | Zippered removable covers for machine washing | |
| Chair storage design | Fixed construction with splayed legs for stable seating; non-stackable configuration | |
| Umbrella height adjustment | Crank-style tilt mechanism for sun angle adjustment | |
| Floor protection | Nylon glides on all chair and table legs prevent hard surface scratching | |
| Outdoor weather resistance | Fully drained woven rattan design prevents standing water accumulation | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential patio application | Suitable for home balconies, backyards, and garden dining areas for 4 users | |
|---|---|---|
| Commercial outdoor seating application | Suitable for cafe terraces, hotel poolside, and public plaza seating areas | |
| Recommended configuration for sun protection | Pair with 20kg weighted umbrella base for secure umbrella placement in light wind | |
| Climate suitability | Recommended for temperate to subtropical climates with regular outdoor exposure |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Outdoor furniture mechanical safety | EN 581:2017 | |
|---|---|---|
| Outdoor furniture durability testing | EN 581:2019 |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Outdoor furniture structural safety | GB 28007 | |
|---|---|---|
| Metal furniture coating performance | GB/T 3324 | |
| Textile UV resistance for outdoor use | GB/T 21655.1 |
Standardized tender description text
This product must meet the following technical requirements: 1. Outdoor furniture structural safety: GB 28007; 2. Metal furniture coating performance: GB/T 3324; 3. Textile UV resistance for outdoor use: GB/T 21655.1; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
