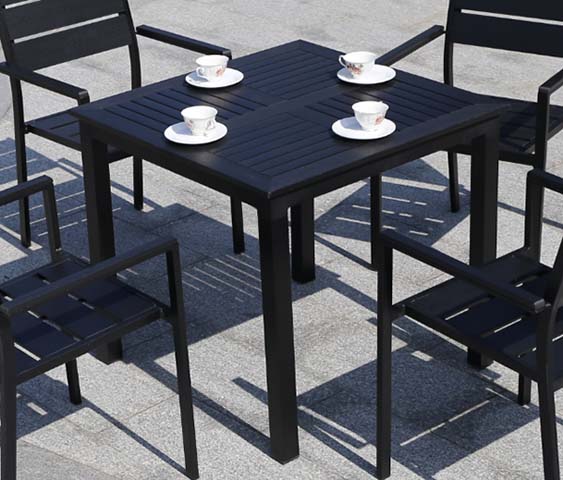

Product supplierBlack Square Slatted Steel 4-Seater Outdoor Patio Dining Table, Cold-rolled steel slats
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 940 × 940 × 711 mm | |
|---|---|---|
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Seating capacity | 4 adults | |
|---|---|---|
| Static distributed tabletop load | 180 kg | |
| Static leg load per leg | 45 kg | |
| Weather resistance rating | Rust and water resistant | |
| Fade resistance | UV-stabilized finish | |
| Product net weight | 15 kg | |
| Warranty period | 24 months | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Tabletop slats | Cold-rolled steel slats | |
|---|---|---|
| Frame and legs | Heavy-duty square steel tubing | |
| Surface finish | E-coat plus black powder coating | |
| Fasteners | Stainless steel assembly screws | |
| Finish coating thickness | 60 um | |
| Umbrella hole fitting | Injection-molded plastic ring | |
| Underside support bracing | Steel cross-brace under tabletop | |
| Foot pads | Non-slip plastic floor glides | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Drainage design | Slatted gaps allow rainwater runoff | |
|---|---|---|
| Umbrella compatibility | Central 40mm hole fits standard patio umbrellas | |
| Assembly requirement | Adult assembly required with included hardware | |
| Table adjustment | Fixed rigid four-leg structure | |
| Floor protection | Plastic glides prevent abrasion to paved surfaces | |
| Surface cleanability | Smooth powder coat resists staining and easy wipe-down | |
| Set compatibility | Pairs with four matching slatted metal outdoor armchairs | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential patio use | Suitable for backyards, balconies, and garden dining areas | |
|---|---|---|
| Commercial outdoor dining | Appropriate for cafe, bistro, and restaurant patio seating | |
| Four-person dining setup | Configured to hold four place settings and tableware | |
| Open-air paved spaces | Designed for placement on stone, concrete, or deck surfaces | |
| All-weather outdoor placement | Suitable for year-round exterior use without covered storage | |
| Matching set configuration | Designed to pair with coordinating slatted metal outdoor armchairs |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 581-1:2017 | Outdoor furniture safety requirements for domestic and contract seating/tables | |
|---|---|---|
| EN 581-2:2019 | Outdoor furniture mechanical safety requirements for dining tables |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for metal furniture, applicable for structural safety | |
|---|---|---|
| GB/T 1732-1993 | Determination of impact resistance for paint films, applicable for finish durability | |
| GB/T 1865-2009 | Paints and varnishes - artificial weathering exposure, applicable for outdoor use |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for metal furniture, applicable for structural safety; 2. GB/T 1732-1993: Determination of impact resistance for paint films, applicable for finish durability; 3. GB/T 1865-2009: Paints and varnishes - artificial weathering exposure, applicable for outdoor use; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
