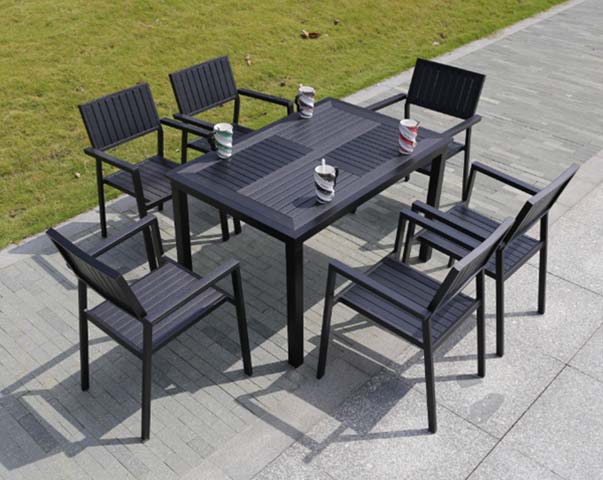

Product supplier7-Piece All-Black Slatted Outdoor Patio Dining Set, 1.2mm thick powder coated square steel tubing
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1520 × 970 × 750 mm | |
|---|---|---|
| Overall set footprint | 2400 x 1800 mm | |
| Table leg section | 60 x 60 mm square | |
| Table slat gap | 8 mm | |
| Chair seat height | 460 mm | |
| Chair seat dimensions | 450 x 440 mm | |
| Chair armrest height | 660 mm | |
| Table umbrella hole diameter | 40 mm | |
| Knee clearance under table | 680 mm | |
| Chair backrest height | 480 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total set weight | 90 kg | |
|---|---|---|
| Single chair static load capacity | 181 kg | |
| Seating capacity | 6 people | |
| Coating outdoor rust resistance service life | 3 years | |
| Chair stackable storage quantity | 4 chairs | |
| Limited warranty period | 12 months | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Table frame and legs | 1.2mm thick powder coated square steel tubing | |
|---|---|---|
| Tabletop slats | 20mm wide coated steel slats with drain gaps | |
| Chair frame and legs | 1.0mm thick powder coated square steel tubing | |
| Chair seat and back slats | 18mm wide coated steel vertical slats | |
| Surface finish | Matte black e-coating plus polyester powder coat | |
| Foot pads | Non-slip adjustable plastic foot glides | |
| Fasteners | Stainless steel assembly bolts and nuts | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Surface water drainage | Gapped slats across table and seats direct rainwater off surfaces | |
|---|---|---|
| Surface leveling adjustment | Adjustable foot pads on table and chair legs compensate for uneven paving | |
| Umbrella compatibility | Center table umbrella hole fits standard patio umbrella poles | |
| Chair storage | Armchairs stack vertically to reduce footprint during off-season storage | |
| Cleaning maintenance | Smooth coated slat surfaces wipe clean with damp cloth, no fabric removal needed | |
| Assembly requirement | Knock-down assembly with included hex key and hardware | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Number of shipping cartons | 4 | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential patio use | Suitable for backyard paved patios adjacent to lawn areas for family outdoor meals | |
|---|---|---|
| Commercial outdoor seating | Applicable for café, bistro, or beer garden outdoor dining areas with weather exposure | |
| Balcony installation | Compact footprint fits large residential balconies for small group outdoor dining | |
| All-weather placement | Suitable for year-round outdoor placement in temperate and subtropical climates | |
| Coordinate design | Uniform matte black finish complements modern, minimalist, and industrial outdoor decor schemes |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Outdoor furniture seating strength | EN 581:2019 | |
|---|---|---|
| Outdoor furniture table safety | EN 581:2019 |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Outdoor furniture structural safety | GB 28007 | |
|---|---|---|
| Metal furniture coating durability | GB/T 3324 |
Standardized tender description text
This product must meet the following technical requirements: 1. Outdoor furniture structural safety: GB 28007; 2. Metal furniture coating durability: GB/T 3324; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
