PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	920 × 2200 × 750 mm
Overall table dimensions	2200 x 920 x 750 mm
Tabletop slat thickness	25 mm
Table leg square section	60 x 60 mm
Under-table apron clearance height	690 mm
Center umbrella hole diameter	40 mm
Overall chair dimensions	650 x 640 x 890 mm
Chair seat height from floor	420 mm
Chair seat dimensions	490 x 450 mm
Chair backrest height	440 mm
Armrest height from floor	640 mm
Slat gap spacing	10 mm
Chair leg tube diameter	30 mm
Finished Top Thickness	45 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Table distributed static load capacity	150 kg
Total set net weight	95 kg
Seating capacity	6 people
Powder coating finish durability	3 years
Faux wood slat weather resistance	10 years
Chair stackability count	8 chairs
Floor glide load rating per leg	50 kg
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Table and chair frame	White powder-coated carbon steel
Tabletop slats	Weather-resistant HDPE faux teak slats
Chair seat slats	Matching HDPE faux teak slats
Chair backrest slats	Matching HDPE faux teak slats
Armrest construction	Curved powder-coated steel tubing
Leg floor glides	Injection-molded nylon glides
Assembly hardware	Zinc-plated steel bolts and nuts
Frame wall thickness	1.5 mm
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel
Primary Connector Specification	Reference M6-M8 with at least 2 fixing points per main support

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Drain-through slat design	Open gaps between slats allow rainwater to drain immediately
Stackable chair storage	Chairs stack vertically up to 8 units high
Center umbrella compatibility	40mm center hole accepts standard patio umbrella poles
Adjustable leveling feet	Optional rotating glides compensate for uneven patio surfaces
Knock-down assembly	Flat-packed design requires bolt-together assembly with included tools
Easy surface cleaning	Smooth non-porous slat surfaces wipe clean with water-based cleaners
Rust-resistant frame performance	E-coat primer under powder top coat prevents corrosion
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 1100× 300 mm
Reference Packaged Gross Weight	90 kg/set in 2 cartons
Reference Packaging Volume	0.55 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential backyard patio use	Suitable for family outdoor meals and gatherings on wooden or composite decks
Garden and poolside dining	Weather-resistant construction withstands splashes, sun and regular rain exposure
Restaurant outdoor seating	Durable easy-clean design works for casual cafe and bistro patio dining areas
Balcony dining for large units	Scaled appropriately for spacious residential balconies with 6-person seating needs
Hotel outdoor leisure areas	Stackable design simplifies reconfiguration and off-season storage for hospitality venues
Recommended accessory pairing	Pairs with outdoor seat cushions and 2.7m center patio umbrella for added comfort

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 581-1:2017	Outdoor furniture safety requirements for domestic and contract seating and tables
EN 581-2:2019	Mechanical safety and strength test methods for outdoor dining furniture

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for metal furniture, applicable to frame structural integrity
GB/T 28008-2011	Safety requirements for outdoor leisure furniture, applicable to edge and stability performance
GB/T 17657-2013	Test methods for surface finish durability, applicable to powder coating abrasion resistance

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for metal furniture, applicable to frame structural integrity;
2. GB/T 28008-2011: Safety requirements for outdoor leisure furniture, applicable to edge and stability performance;
3. GB/T 17657-2013: Test methods for surface finish durability, applicable to powder coating abrasion resistance;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ODT-WH-6S-SLAT-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ODT-WH-6S-SLAT-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ODT-WH-6S-SLAT-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

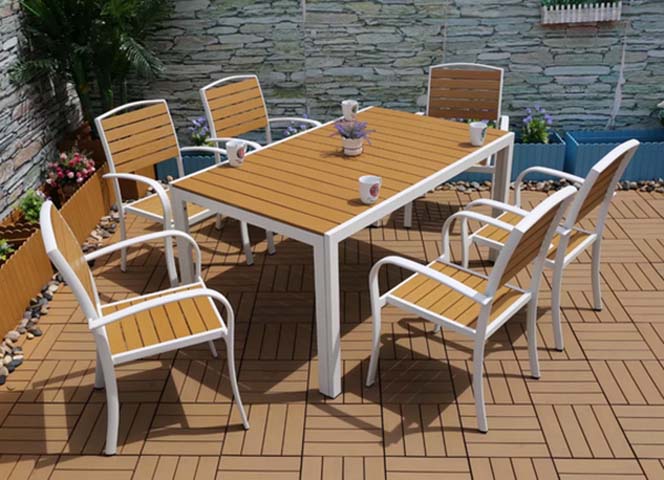

This 6-seater rectangular outdoor patio dining set offers a clean, functional design suited to a range of outdoor dining settings. The set pairs crisp white metal framing with warm faux teak wood-look slats across the tabletop, chair seats, and chair backs, creating a balanced visual profile that complements both residential and commercial outdoor palettes. The rectangular table anchors the layout, paired with six matching armchairs that feature gently curved armrests for comfortable, approachable seating.
Frames are constructed from 1.5mm wall thickness carbon steel, finished with an e-coat primer under a durable white powder coating rated for 3 years of finish durability, with inherent rust resistance to withstand regular outdoor exposure. Table and seating surfaces use weather-resistant HDPE faux teak slats, with 25mm thick slats forming standard surfaces, and a 40mm composite build-up for load-bearing tabletop sections. Table legs feature 60x60mm square sections, with 690mm of clearance under the table apron, and chairs include injection-molded nylon floor glides to protect underlying surfaces; optional rotating leveling glides are available to compensate for uneven patio surfaces. All assembly uses zinc-plated steel bolts and nuts, included with flat-packed components.
The drain-through slat design creates open gaps between slats to let rainwater run off immediately, eliminating pooled water after storms. The 40mm center umbrella hole accommodates standard patio umbrella poles, recommended for pairing with a 2.7m center umbrella for shade. Chairs stack vertically up to 8 units high, simplifying storage and space reconfiguration, while smooth non-porous slat surfaces wipe clean easily with common water-based cleaners. The table supports 150kg of distributed static load, with each chair leg glide rated for 50kg, and the set delivers 10 years of weather resistance for its faux wood slat components.
This set is well-suited for residential backyard patios, wooden or composite decks, garden spaces, poolside areas, and spacious large-unit balconies for family meals and gatherings. It also works for casual cafe, bistro, and hotel outdoor leisure areas, where stackable storage supports quick layout changes and off-season organization. Recommended accessory pairings include outdoor seat cushions for added comfort during extended use.
Procurement teams and buyers should note the set ships flat-packed across 2 cartons, with a total packaged gross weight of 90kg and 0.55m³ packaging volume, requiring 40 minutes of bolt-together assembly per set with included tools. This unbranded set, model ODT-WH-6S-SLAT-001, offers versatile, low-maintenance outdoor seating aligned with both residential and light commercial outdoor dining needs.

7-Piece 6-Seater Rectangular Outdoor Patio Dining Set with Faux Wood Slats and White Metal Frame Specifications
