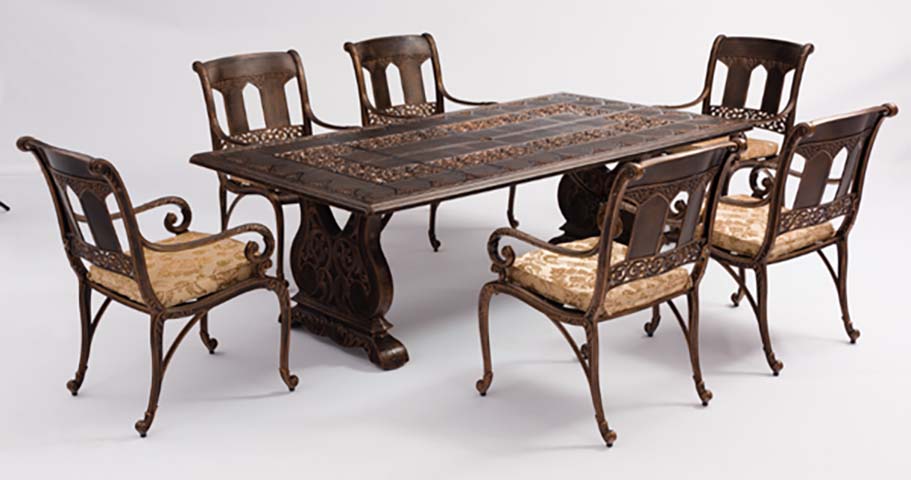

Product supplier7-Piece Ornate Cast Aluminum Patio Dining Set, Cast aluminum alloy, fully welded joints
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2130 × 970 × 750 mm | |
|---|---|---|
| Overall set dimensions | 2130 x 970 x 750 mm | |
| Center umbrella hole diameter | 51 mm | |
| Chair seat dimensions | 500 x 470 mm | |
| Seat height from floor | 480 mm | |
| Chair backrest height | 460 mm | |
| Armrest height from seat | 180 mm | |
| Cushion thickness | 69 mm | |
| Table clearance under apron | 660 mm | |
| Chair leg spread width | 640 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total set net weight | 118 kg | |
|---|---|---|
| Weight capacity per chair | 159 kg | |
| Table top static load capacity | 75 kg | |
| Recommended number of users | 6 people | |
| Powder coating corrosion resistance | 5 years | |
| Cushion water drainage time | 2 hours | |
| Chair frame static load test rating | 200 kg | |
| Adjustable foot leveler adjustment range | 13 mm | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Table and chair frame construction | Cast aluminum alloy, fully welded joints | |
|---|---|---|
| Frame surface finish | Multi-stage antique bronze powder coating | |
| Table top construction | Cast aluminum with embossed decorative patterned inlay | |
| Table base construction | Double cast aluminum pedestal bases with carved scroll detailing | |
| Seat cushion core material | High-density quick-dry outdoor polyurethane foam | |
| Cushion upholstery fabric | Solution-dyed polyester outdoor fabric | |
| Chair armrest construction | Cast aluminum with scrolled curled end detailing | |
| Chair backrest construction | Cast aluminum frame with decorative lattice lower panel | |
| Foot glides | Non-marking nylon adjustable levelers | |
| Seam stitching pitch for cushions | 8 stitches per 25 mm | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Umbrella hole compatibility | Fits 50 mm diameter standard patio umbrellas | |
|---|---|---|
| Leveling adjustment | Threaded nylon foot glides adjust for uneven surfaces | |
| Cushion attachment system | Velcro strips secure cushions to chair seat frames | |
| Water drainage design | Perforated chair back lattice drains rainwater quickly | |
| Chair tuck design | Chairs slide fully under table apron when not in use | |
| Weather resistance function | Rust-proof frames and water-shedding cushions support year-round outdoor use | |
| Seat support structure | Cast aluminum seat pan distributes weight evenly across cushion | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential patio use | Suitable for backyard, garden, deck or poolside 6-person dining | |
|---|---|---|
| Hospitality outdoor use | Applicable for restaurant sidewalk seating, hotel terrace dining areas | |
| Small event use | Supports small outdoor gatherings, family meals and casual entertaining | |
| Climate suitability | Recommended for use in temperate, subtropical and coastal environments | |
| Style matching | Complements traditional, Mediterranean, or Tuscan outdoor decor schemes | |
| Surface requirement | Performs best on flat concrete, stone paver or wooden deck surfaces |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 581-1:2017 | Outdoor furniture seating and table safety requirements, general applicable standard | |
|---|---|---|
| EN 581-2:2019 | Mechanical safety requirements for outdoor seating, applicable to chair load testing | |
| EN 581-3:2017 | Mechanical safety requirements for outdoor tables, applicable to table stability testing |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for metal furniture, applicable to frame strength verification | |
|---|---|---|
| GB 18584-2001 | Limit of harmful substances for indoor furniture, reference for coating material testing | |
| GB/T 24536-2009 | Performance requirements for outdoor furniture, applicable to weather durability testing |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for metal furniture, applicable to frame strength verification; 2. GB 18584-2001: Limit of harmful substances for indoor furniture, reference for coating material testing; 3. GB/T 24536-2009: Performance requirements for outdoor furniture, applicable to weather durability testing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
