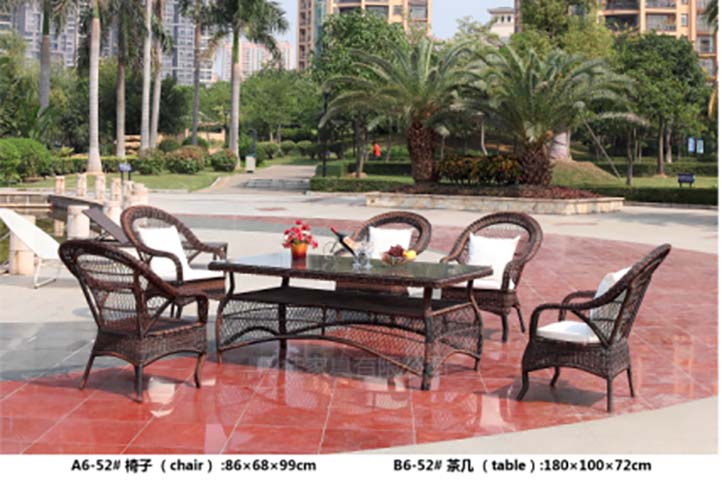

Product supplier7-Piece Dark Brown All-Weather Wicker 6-Seat Outdoor Patio Dining Set with Glass Top Table and White Cushions, Powder-coated steel tubular frame
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1800 × 1000 × 720 mm | |
|---|---|---|
| Overall table dimensions | 1800 x 1000 x 720 mm | |
| Dining seat height | 460 mm | |
| Seat cushion depth | 500 mm | |
| Seat cushion width | 520 mm | |
| Backrest total height above seat | 530 mm | |
| Armrest height above seat | 220 mm | |
| Lower table shelf clearance | 280 mm | |
| Table glass top thickness | 8 mm | |
| Knee clearance under table apron | 650 mm | |
| Chair leg spread diameter at base | 680 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Per-chair static weight capacity | 160 kg | |
|---|---|---|
| Table top static load capacity | 75 kg | |
| Wicker UV exposure resistance rating | 3000 hours | |
| Seat cushion foam density | 38 kg/m³ | |
| Seat cushion thickness | 100 mm | |
| Cushion fabric water repellency rating | 1000 mm hydrostatic head | |
| Frame rust protection coating thickness | 60 μm | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Frame core structure | Powder-coated steel tubular frame | |
|---|---|---|
| Woven exterior material | Dark brown UV-stabilized PE synthetic rattan | |
| Table top surface | 8mm thick clear tempered safety glass | |
| Table lower shelf | Matching dark brown woven PE rattan | |
| Seat cushion cover | Water-resistant white olefin/polyester fabric | |
| Seat cushion fill | High-resilience polyurethane foam | |
| Back pillow fill | Polyester fiber fill | |
| Chair feet | Non-slip PP plastic foot glides | |
| Wicker weave edge treatment | Dual-wrapped reinforced rattan edges | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seating capacity | 6 individual high-back armchairs arranged around central table | |
|---|---|---|
| Dining surface function | Flat smooth tempered glass top suitable for outdoor meal and drink service | |
| Lower shelf function | Open woven lower shelf provides out-of-sight storage for tableware or outdoor accessories | |
| Chair construction | Fixed-position non-reclining high-back armchairs with integrated arm support | |
| Cushion attachment | Zippered removable cushion covers with fabric tie fasteners to prevent shifting | |
| Level adjustment | Non-slip adjustable foot glides for stable placement on uneven paved patio surfaces | |
| Weather resistance | Rust-proof frame and fade-resistant wicker designed for permanent outdoor patio use | |
| Assembly requirement | Knock-down assembly with included hardware and instruction manual | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential patio dining | Suitable for covered or open backyard patios, decks and verandas for family meals | |
|---|---|---|
| Commercial outdoor seating | Applicable for hotel courtyards, resort poolside dining areas and cafe terraces | |
| Public community space use | Suitable for residential community gardens, park picnic areas and rooftop terraces | |
| Recommended accessory pairing | Compatible with standard patio umbrella and protective weather covers for extended service life | |
| User group suitability | Designed for adult diners, with ergonomic seat height paired with 720mm table height for comfortable dining |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 581-1:2017 | Outdoor furniture seating and table safety requirements for residential use | |
|---|---|---|
| EN 581-2:2019 | Outdoor furniture mechanical performance and stability test methods |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to wicker furniture structural safety | |
|---|---|---|
| GB 28007-2011 | Safety requirements for children's furniture, applicable if set is used in family outdoor spaces with children | |
| GB/T 17657-2013 | Test methods for surface finish and material weather resistance |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to wicker furniture structural safety; 2. GB 28007-2011: Safety requirements for children's furniture, applicable if set is used in family outdoor spaces with children; 3. GB/T 17657-2013: Test methods for surface finish and material weather resistance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
