| Submitted | Field | Original | Note / Status | |
|---|---|---|---|---|
No corrections yet. Use the flag at the end of a row to report an issue. | ||||
Automatic mm / inch conversion · Core engineering specifications

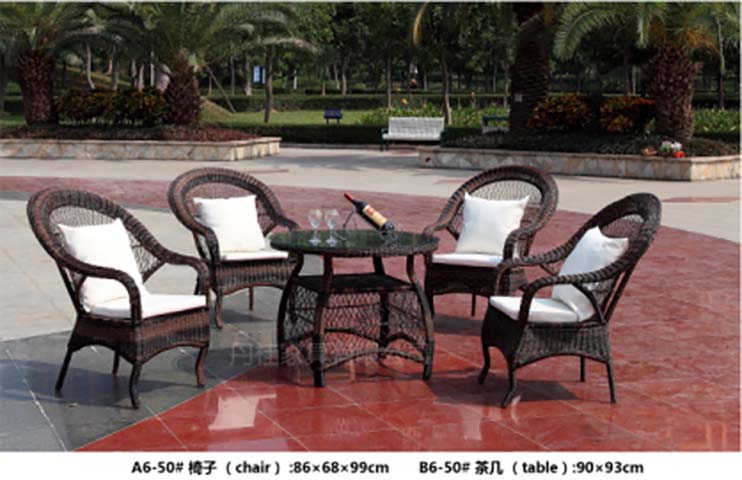

| Overall set footprint (arranged for use) | 2400 x 2400 mm | |
|---|---|---|
| Individual armchair dimensions | 860 x 680 x 990 mm | |
| Round table dimensions | 900 x 930 mm | |
| Chair seat height (top of cushion) | 450 mm | |
| Chair seat width | 520 mm | |
| Chair seat depth | 500 mm | |
| Chair backrest height above seat | 540 mm | |
| Table lower shelf height above ground | 300 mm | |
| Table clear knee clearance under apron | 630 mm | |
| Table glass top thickness | 5 mm | |
| Chair armrest height above seat | 200 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Set net weight | 55 kg | |
|---|---|---|
| Single chair static load capacity | 150 kg | |
| Cushion foam density | 30 kg/m³ | |
| Cushion foam thickness | 80 mm | |
| Seam stitch pitch on cushion covers | 8 stitches per 30mm | |
| Outdoor UV resistance lifespan | 2 years | |
| Recommended maximum user weight per chair | 120 kg | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ | |
| Upholstery Thickness / Abrasion Reference | 1.4 mm / 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| Chair and table frame | Powder-coated 1.5mm thick steel tube | |
|---|---|---|
| Woven exterior | UV-stabilized dark brown PE faux rattan, hand-woven | |
| Table top surface | 5mm thick clear tempered safety glass | |
| Table lower shelf | Woven dark brown PE rattan matching frame exterior | |
| Chair seat cushions | High-density polyurethane foam core | |
| Cushion covers | Water-repellent 220g polyester fabric with zip closure | |
| Back throw pillows | Polyester fiber fill, matching white polyester covers | |
| Chair leg feet | Non-slip injection-molded plastic foot caps | |
| Wicker strand width | 8mm flat PE rattan | |
| Frame surface finish | Matte dark brown outdoor powder coating | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame |
Adjustment / rotation / tilt / mobility / storage features
| Seating configuration | 4 fixed-position lounge armchairs arranged around central table | |
|---|---|---|
| Table storage | Lower open woven shelf for outdoor accessory storage | |
| Cushion maintenance | Removable zip-off cushion covers for machine washing | |
| Floor protection | Non-slip plastic foot caps prevent patio surface scratching | |
| Assembly requirement | Knock-down assembly required for table legs; chairs ship pre-assembled | |
| Weather performance | Rattan and frame resist rain, UV exposure and surface rust | |
| Table surface use | Smooth tempered glass top supports drink service and small dining items | |
| Stacking capability | Chairs are non-stackable fixed-structure units | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
Recommended spaces / users / usage modes
| Residential patio use | Suitable for backyards, garden terraces and poolside relaxation seating | |
|---|---|---|
| Balcony leisure space | Fits medium to large residential balconies for casual tea and drinks seating | |
| Commercial outdoor seating | Appropriate for cafe terraces, hotel courtyards and resort lounge areas | |
| Seating capacity | Accommodates 4 adults for casual conversation and light refreshment service | |
| Climate suitability | Designed for use in mild to warm climates with periodic rain and sun exposure | |
| Recommended placement | Position on flat paved or decked surfaces for stable leg support | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
EU Market Access Requirements* EN Standards
| EN 581-1:2017 | Outdoor furniture seating and table safety requirements for residential use | |
|---|---|---|
| EN 581-2:2019 | Mechanical safety test methods for outdoor seating, applicable for chair load testing | |
| EN 581-3:2017 | Mechanical safety test methods for outdoor tables, applicable for glass top safety |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden and rattan furniture, applicable for structural safety | |
|---|---|---|
| GB/T 17657-2013 | Test method for surface physical and chemical properties of furniture, applicable for coating adhesion |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden and rattan furniture, applicable for structural safety; 2. GB/T 17657-2013: Test method for surface physical and chemical properties of furniture, applicable for coating adhesion; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
