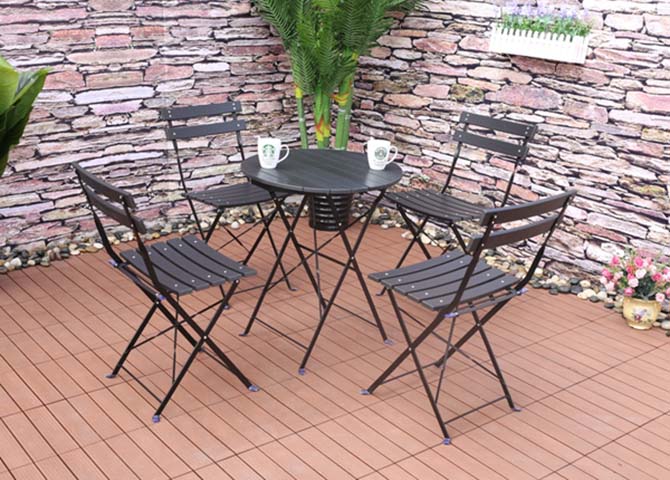

Product supplier5-Piece Black Folding Slatted Metal Outdoor Patio Bistro Dining Set, 1.2mm thick powder-coated carbon steel tubing
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 800 × 800 × 720 mm | |
|---|---|---|
| Overall set footprint (assembled) | 1700 x 1700 x 820 mm | |
| Table top diameter | 800 mm | |
| Table height (ground to tabletop) | 720 mm | |
| Chair seat height (ground to seat slat) | 450 mm | |
| Chair seat width (between frame uprights) | 420 mm | |
| Chair seat depth (front to back edge) | 400 mm | |
| Chair backrest height (seat to top slat) | 370 mm | |
| Slat width (table and chair surfaces) | 38 mm | |
| Gap between surface slats | 8 mm | |
| Folded chair thickness (flat storage) | 90 mm | |
| Folded table thickness (flat storage) | 70 mm | |
| Umbrella hole diameter (if present) | 48 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total set net weight | 36 kg | |
|---|---|---|
| Per-chair static load capacity | 160 kg | |
| Folding mechanism cycle life | 10000 cycles | |
| Powder coat scratch resistance | 2000 rub cycles | |
| Recommended number of seated users | 4 adults | |
| Weather exposure durability rating | 3 years | |
| Frame tubing wall thickness | 1.2 mm | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Structural frame (table and chairs) | 1.2mm thick powder-coated carbon steel tubing | |
|---|---|---|
| Table top slats | Roll-formed steel slats with matte black powder coat finish | |
| Chair seat and back slats | Roll-formed steel slats with matching black powder coat | |
| Pivot hinge hardware | Zinc-plated steel rivets and cross-brace connectors | |
| Foot protection caps | Injection-molded non-marking polyethylene glides | |
| Surface coating | E-coat primer plus matte black polyester powder topcoat | |
| Cross-brace stability bars | Steel round tube welded or bolted to leg frames | |
| Fastener hardware | Stainless steel screws securing slats to support rails | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Folding operation (table and chairs) | X-brace pivot design folds completely flat for vertical or stacked storage | |
|---|---|---|
| Surface drainage function | Evenly spaced gaps between horizontal slats shed rainwater to prevent pooling | |
| Floor protection function | Soft polyethylene foot caps prevent scuffing and scratching on composite deck, tile, or stone patios | |
| Umbrella compatibility | Center table hole accepts standard patio umbrella poles up to 48mm diameter | |
| Set-up requirement | Units arrive fully assembled; only unfold and lock frames into open position for use | |
| Storage density | All 5 pieces nest to fit a 900 x 900 x 200 mm footprint when fully folded | |
| Backrest support | Fixed two-slat backrest provides upright lumbar support for casual dining | |
| Frame stability | Dual cross-brace design on table and chairs eliminates lateral wobble on level surfaces | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential small balcony or compact patio use | 4-seat footprint fits tight outdoor spaces where full-size dining sets cannot be accommodated | |
|---|---|---|
| Deck or terrace casual dining | Non-marking feet protect composite and wood deck surfaces while providing weather-resistant seating | |
| Cafe or bistro outdoor seating | Folding design allows quick reconfiguration or storage during inclement weather for commercial venues | |
| Rooftop or garden leisure areas | Lightweight foldable construction supports easy movement for event or temporary seating setups | |
| Poolside seating areas | Slatted surfaces drain splashed water quickly and powder coat resists chlorine and humidity exposure | |
| Temporary event seating | Fold-flat design supports rapid deployment and compact storage for pop-up events or gatherings |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 581-1:2017 | Outdoor furniture seating and table safety requirements for domestic use | |
|---|---|---|
| EN 581-2:2019 | Mechanical safety and performance test methods for outdoor seating | |
| EN 581-3:2019 | Mechanical safety and performance test methods for outdoor tables |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for metal furniture, applicable for structural safety and finish quality verification | |
|---|---|---|
| GB/T 17657-2013 | Test method for surface coating performance, applicable for scratch and corrosion resistance verification | |
| GB 28007-2011 | Safety requirements for children's furniture if used in family outdoor spaces with child access |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for metal furniture, applicable for structural safety and finish quality verification; 2. GB/T 17657-2013: Test method for surface coating performance, applicable for scratch and corrosion resistance verification; 3. GB 28007-2011: Safety requirements for children's furniture if used in family outdoor spaces with child access; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
