PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	800 × 800 × 730 mm
Overall table dimensions	800 x 800 x 730 mm
Overall single chair dimensions	630 x 580 x 1000 mm
Seat height from ground	440 mm
Seat surface dimensions per chair	490 x 460 mm
Backrest height above seat	560 mm
Glass table top thickness	5 mm
Seat cushion thickness	50 mm
Lower woven storage shelf height	220 mm
Chair armrest height above ground	660 mm
Inner frame tube thickness	1.2 mm
Set footprint with chairs arranged	1700 x 1700 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Single chair static weight capacity	160 kg
Table top static weight capacity	70 kg
Cushion foam density	30 kg/m³
Cushion foam rebound rate	45%
Total set net weight	55 kg
Fabric abrasion resistance	12000 cycles
Weather durability rating	3 years
Foot glide load rating per leg	50 kg
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Chair and table outer weave	UV-stabilized PE synthetic rattan, light gray finish, weather-resistant
Internal support frame	Powder-coated steel tube, corrosion-resistant finish
Table top surface	Clear tempered safety glass, polished edges
Seat cushion core	High-density polyurethane foam, water-repellent treated
Cushion outer cover	Water-resistant polyester fabric, maroon color, removable for washing
Table lower shelf	Woven PE rattan lattice open weave, matching frame finish
Leg foot components	Non-slip plastic glide pads, height-adjustable design
Table support brackets	Curved powder-coated steel legs wrapped in matching rattan
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating configuration	4 fixed-position high-back armchairs arranged symmetrically around central table
Table storage function	Open woven lower shelf for outdoor accessory storage, 70 kg total load
Leg leveling function	Adjustable plastic foot glides to compensate for uneven patio surfaces
Cushion maintenance	Removable cushion covers with zipper closure for machine washing
Surface cleaning	Wipe-clean rattan and glass surfaces resistant to water and common outdoor stains
Assembly requirement	Partial bolt-together assembly for table base and glass attachment, chairs arrive pre-assembled
Positioning flexibility	Lightweight individual chairs that can be repositioned for conversation or dining
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential patio dining	Suitable for 4-person family meals on stone or tile paved back patios
Cafe outdoor seating	Appropriate for small coffee shop or bistro outdoor sidewalk dining areas
Balcony conversation area	Fits on large covered balconies for casual drinks and small gatherings
Garden leisure space	Suitable for placement in landscaped garden areas near planting beds
Poolside seating	Resistant to water splashes and UV exposure for pool deck dining areas

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 581-1:2017	Outdoor furniture safety and structural strength requirements for seating and tables
EN 581-2:2019	Mechanical test methods for outdoor residential seating
EN 581-3:2019	Mechanical test methods for outdoor residential tables

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture (applicable reference for structural stability testing)
GB/T 17657-2013	Test methods for evaluating physical and chemical properties of surface finishes

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture (applicable reference for structural stability testing);
2. GB/T 17657-2013: Test methods for evaluating physical and chemical properties of surface finishes;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OD-RDS-4S-A6B6-80SQ

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OD-RDS-4S-A6B6-80SQ

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OD-RDS-4S-A6B6-80SQOpen Export Tool

Quick Actions

Post an RFQ

Product Description

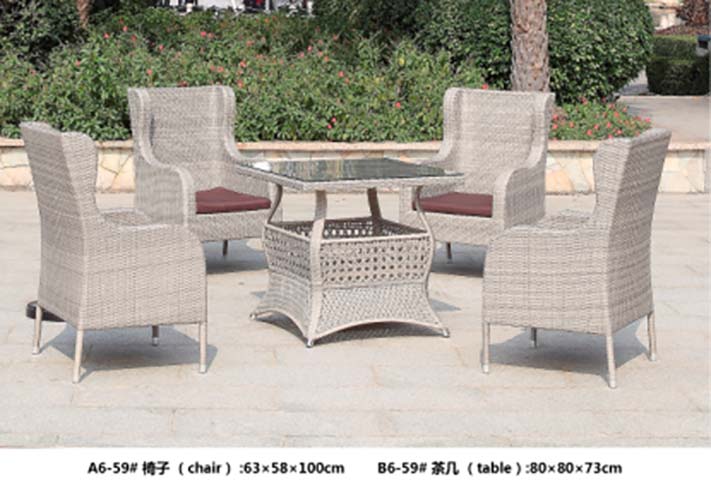

This 4-person light gray woven rattan outdoor dining set balances streamlined casual style and reliable outdoor functionality for shared leisure and dining use. Its symmetrical layout centers a square dining table, with four fixed-position high-back armchairs arranged evenly around the tabletop for balanced sightlines during meals or conversation. The light gray woven rattan exterior pairs with rich maroon seat cushions, creating a warm, understated visual profile that complements natural outdoor surroundings without visual clutter. The table features a smooth clear tempered glass top with polished edges, finished with curved rattan-wrapped steel legs and a matching open-weave lower storage shelf that sits flush with the frame design. Construction prioritizes long-term outdoor performance: a corrosion-resistant powder-coated steel tube frame forms the internal support for all pieces, wrapped fully in UV-stabilized, weather-resistant light gray PE synthetic rattan. The 5mm thick clear tempered glass tabletop offers a smooth, stable serving surface, while each chair supports up to 160 kg of static weight, and the tabletop holds up to 70 kg of static load. Seats are fitted with 50mm thick cushions cored with high-density water-repellent polyurethane foam, covered in maroon water-resistant polyester fabric with a 12,000-cycle abrasion resistance rating. Legs are fitted with non-slip, height-adjustable plastic glide pads, and major joints use M6-M10 connectors with at least two fixing points for structural stability. The set carries a 3-year weather durability rating for regular outdoor use. Functional design supports convenient daily use: the table’s open lower woven shelf holds up to 70 kg of outdoor dining accessories for easy access. Adjustable foot glides compensate for uneven patio surfaces to eliminate wobble, while removable zippered cushion covers are safe for machine washing. Rattan and glass surfaces wipe clean easily, resisting water and common outdoor stains. Chairs arrive fully pre-assembled, with only partial bolt-together assembly required for the table base and glass top, taking 40 minutes to complete per set. Individual chairs are lightweight enough to reposition flexibly for casual conversation or formal dining arrangements. The set is well suited for a range of outdoor settings, including residential stone or tile back patios for family meals, small coffee shop or bistro sidewalk seating areas, large covered balconies for casual small gatherings, landscaped garden leisure spaces near planting beds, and pool deck areas exposed to water splashes and regular UV exposure. Procurement teams should note each set ships across 2 cartons, with a packaged gross weight of 120 kg and packaging volume of 0.8 m³, and should plan for appropriate receiving and short-distance transport support for delivery to installation sites.

4-Person Light Gray Woven Rattan Outdoor Dining Set with Maroon Cushions Specifications
