PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1220 × 1220 × 750 mm
Set overall footprint (4 chairs arranged around table)	1220 x 1220 mm
Round table dimensions	900 mm diameter x 750 mm height
Table central umbrella hole diameter	60 mm
Table lower decorative shelf clearance	250 mm above ground
Single armchair dimensions	676 mm W x 630 mm D x 953 mm H
Chair seat height (with cushion installed)	460 mm
Seat cushion dimensions per chair	508 mm W x 480 mm D x 127 mm thick
Chair curved armrest height above seat	190 mm
Chair backrest height above seat	493 mm
Chair leg foot cap diameter	25 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Single chair static weight capacity	180 kg
Round table top static weight capacity	91 kg
Total set net weight	68 kg
Powder coat finish weather durability	5 years residential outdoor use
Seating capacity	4 adults
Cushion fabric UV fade resistance	1000 hours accelerated exposure
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles
Recommended Procurement Warranty	Structure 5 years; hardware 3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Table frame and tabletop construction	Sand-cast aluminum with 3mm minimum wall thickness
Frame surface finish	Black matte powder-coated weatherproof coating
Chair frame construction	One-piece cast aluminum seat/back/arm assembly
Seat cushion cover material	300D solution-dyed polyester outdoor fabric
Seat cushion inner fill	50mm high-density polyurethane foam with polyester wrap
Cushion fastening hardware	Polyester tie straps at each cushion corner
Leg protective components	Non-marking rubber foot caps on all leg bases
Umbrella hole fitting	Reinforced aluminum rim with removable plastic cap
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Central table umbrella hole	Accommodates 60 mm diameter patio umbrella poles, includes cap for unused operation
Adjustable leveling foot pads	10mm height adjustment per table leg to stabilize on uneven paved surfaces
Removable seat cushions	Cushions secure with tie straps, allow spot cleaning or seasonal storage
Integrated lower table shelf	Decorative scrollwork shelf for small outdoor item storage below tabletop
Stackable chair design (set configuration)	Chairs stack 4 units high for off-season storage when not in use
Weather-sealed frame construction	Sealed cast joints prevent water intrusion for permanent outdoor placement
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential patio installation	Ideal for backyards, pool decks, and paved patios for 4-person casual meals
Waterside/dock placement	Suitable for lakeside or dockside dining areas with non-slip leveling feet
Light commercial use	Appropriate for cafe sidewalk seating, boutique hotel patio guest dining
Seasonal outdoor setup	Works for spring/summer backyard entertaining with compatible standard patio umbrella
Small-space outdoor dining	Fits compact balcony or small patio areas with space-efficient 900mm round table

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Outdoor furniture mechanical safety standard	EN 581:2017
Outdoor furniture durability test standard	EN 581:2019

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Outdoor seating structural performance standard	ANSI/BIFMA X2020
Outdoor table structural performance standard	ANSI/BIFMA X2020

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Outdoor furniture structural safety standard	GB 28007
Metal furniture coating adhesion standard	GB/T 2020
Outdoor fabric UV resistance standard	GB/T 21835

Standardized tender description text

This product must meet the following technical requirements:
1. Outdoor furniture structural safety standard: GB 28007;
2. Metal furniture coating adhesion standard: GB/T 2020;
3. Outdoor fabric UV resistance standard: GB/T 21835;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · PAD-CA-RND-4S-TEAL

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · PAD-CA-RND-4S-TEAL

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · PAD-CA-RND-4S-TEALOpen Export Tool

Quick Actions

Post an RFQ

Product Description

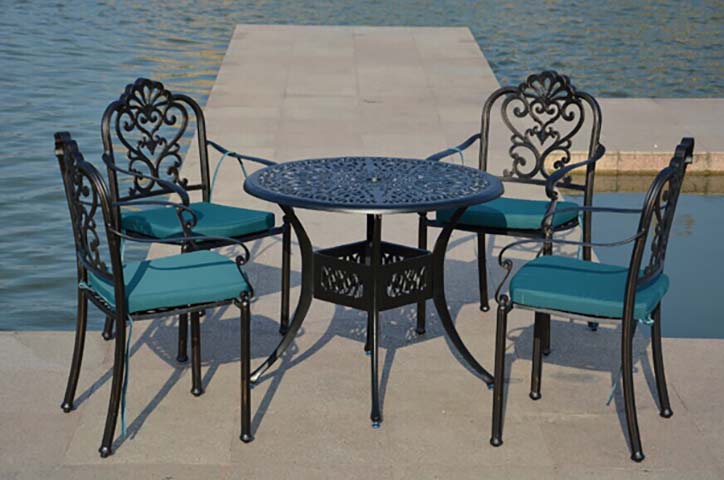

This unbranded 4-seat cast aluminum round patio dining set, model PAD-CA-RND-4S-TEAL, features ornate scrollwork detailing across its cast aluminum construction for a classic, decorative outdoor aesthetic. Arranged around the 900mm diameter round table, the four matching armchairs create a compact 1220mm x 1220mm overall footprint, designed to fit small outdoor areas without sacrificing seating comfort. Each armchair includes curved armrests set 190mm above the 460mm cushioned seat height, finished with non-marking rubber foot caps to protect hard surfaces, while the table integrates a decorative lower scrollwork shelf positioned 250mm above ground, plus a central 60mm umbrella hole fitted with a reinforced aluminum rim and removable cap for use when no umbrella is installed.
The set is built for lasting outdoor performance: table frames and tabletops use sand-cast aluminum with a minimum 3mm wall thickness, while chairs feature one-piece cast aluminum seat, back, and arm assemblies, all coated in a black matte weatherproof powder finish rated for 5 years of residential outdoor use, with sealed cast joints to block water intrusion for permanent placement. Teal seat cushions, measuring 508mm wide, 480mm deep, and 127mm thick, are filled with 50mm high-density polyurethane foam wrapped in polyester, covered in 300D solution-dyed polyester fabric rated to resist UV fade through 1000 hours of accelerated exposure; corner polyester tie straps secure cushions to frames, and the cushions are fully removable for spot cleaning or seasonal storage. Each chair supports a 180kg static load, while the tabletop holds up to 91kg of static weight, and table legs include 10mm adjustable leveling pads to stabilize the set on uneven paved surfaces. When not in use, chairs stack up to 4 units high to minimize storage space.
This set is well-suited for residential backyards, pool decks, paved patios, compact balconies, and lakeside or dockside dining areas, as well as light commercial settings including cafe sidewalk seating and boutique hotel patio guest spaces. Procurement teams should note the set ships in 2 cartons with a packaged gross weight of 120kg, requires 40 minutes of assembly with included hardware rated for major joint security, and pairs with standard 60mm diameter patio umbrellas for shaded seasonal use.

5-Piece Cast Aluminum Round Patio Dining Set with Teal Cushions, Umbrella Hole Specifications
